Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear door inside handle to the right rear door.
  2. Install the lock rods (3) to the rear door inside handle.
  3. Align the tabs on the handle with the slots in the door.
  4. Slide the inside handle rearward in order to engage the inside handle with the slots in the door.
  5. Install the rivet (4) at the rear edge of the rear door inside handle.
  6. Install the right side rear door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR - 60/40 RIGHT (E24, 40 DOOR) or TRIM PANEL REPLACEMENT - SIDE REAR DOOR - 60/40 RIGHT (E24, 60 DOOR) .

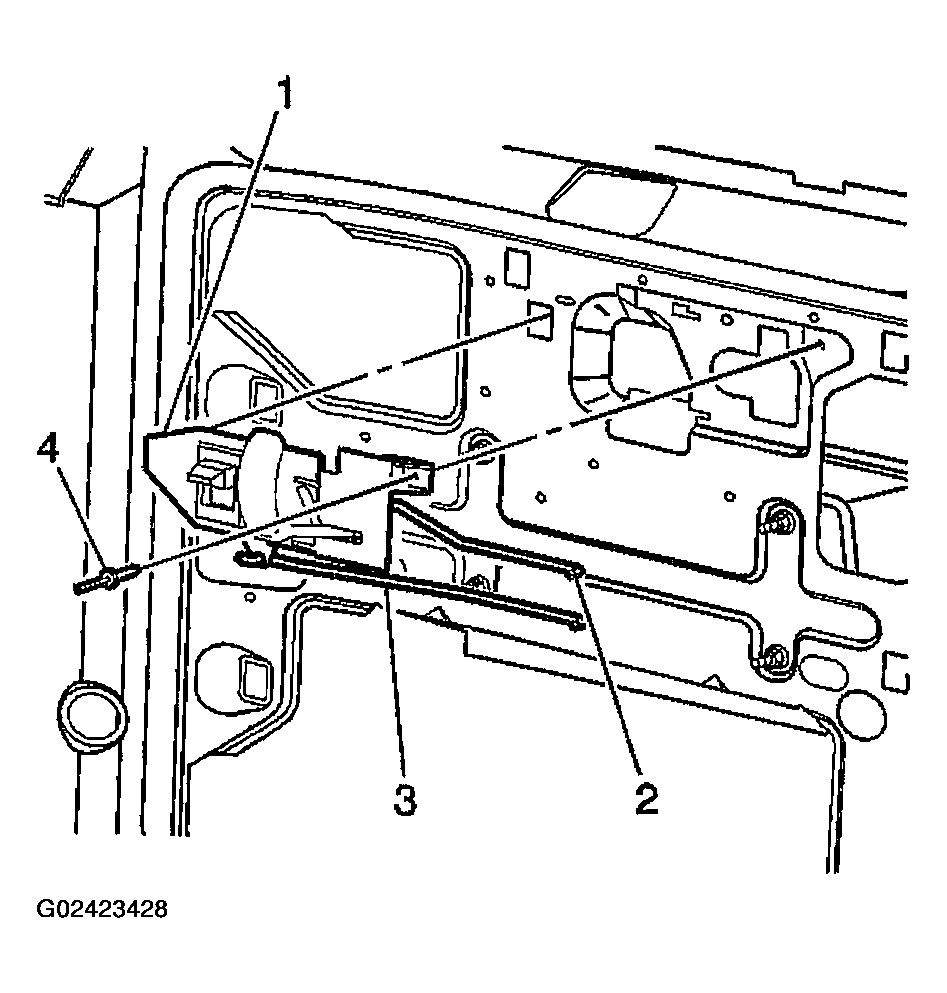

    Fig 1: Installing Rear Door Inside Handle
    G02423428Courtesy of GENERAL MOTORS CORP.
