Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Grasp and gently pull the rear door opening frame garnish molding down in order to disengage the retaining clips.
  2. Remove the rear door opening frame garnish molding from the vehicle.
  3. Inspect the rear door opening frame garnish molding for broken or missing retaining clips. Replace the clips as needed.

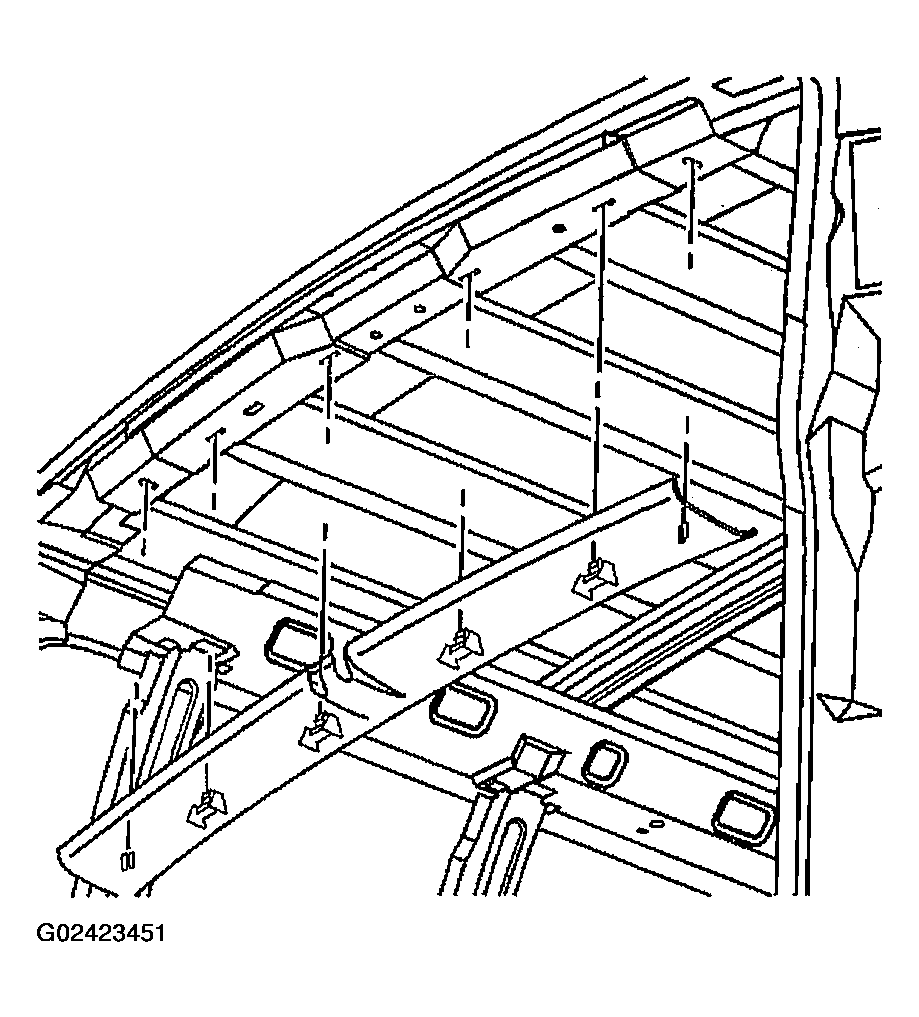

    Fig 1: Removing Rear Door Opening Frame Garnish Molding
    G02423451Courtesy of GENERAL MOTORS CORP.
