Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Completely open the rear door.
  2. Remove the bolts that retain the door extension to the door.
  3. Partially close the rear door.
  4. Grasp the extension.
  5. Pull the extension in order to disengage the extension from the door.
  6. Remove the rear door extension panel from the vehicle.

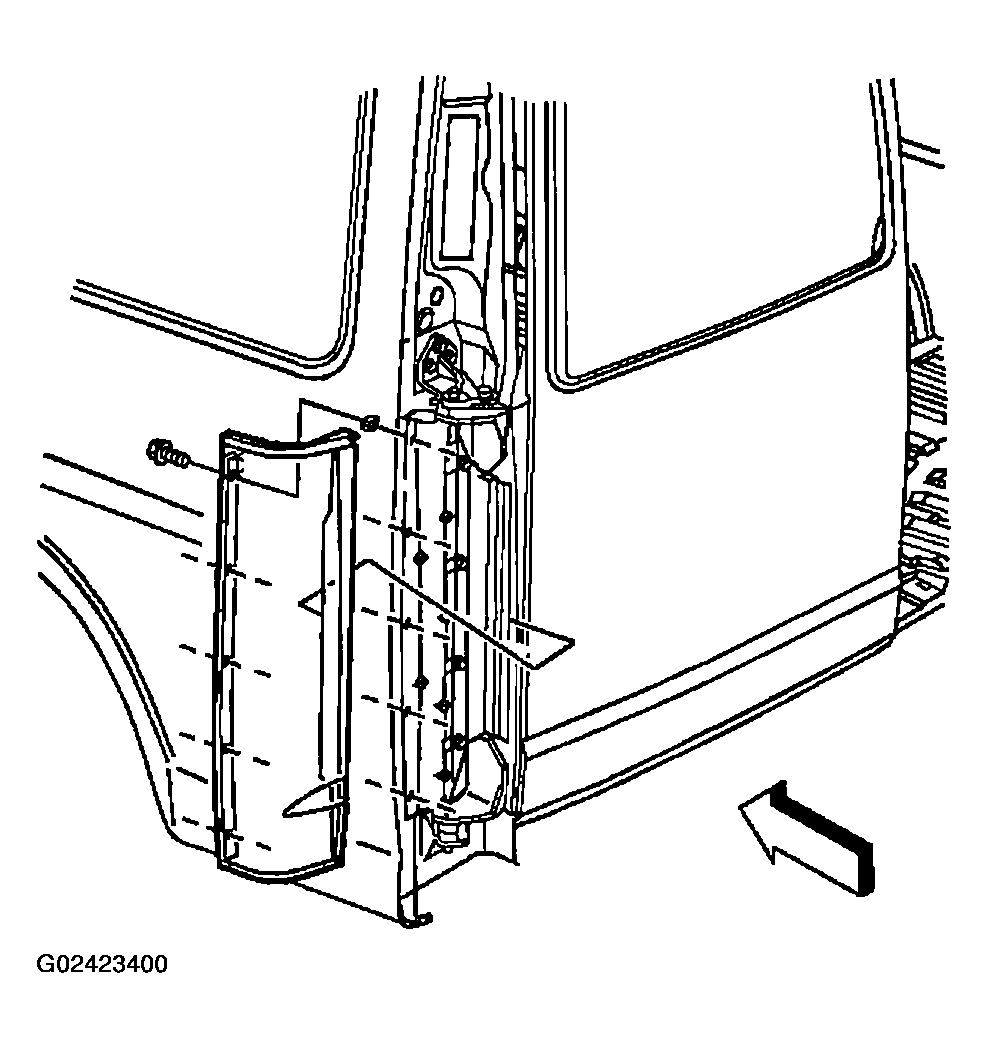

    Fig 1: Removing Rear Door Extension Panel
    G02423400Courtesy of GENERAL MOTORS CORP.
