Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear door extension panel to the vehicle.
  2. Align the extension panel to the door.
  3. Press on the rear door extension panel in order to engage the panel with the rear door.
  4. Completely open the rear door.
    CAUTION: Refer to FASTENER NOTICE .
  5. Install the bolts that retain the rear door extension panel to the door.

    Tighten

    Tighten the bolts 2 N.m (18 lb in).

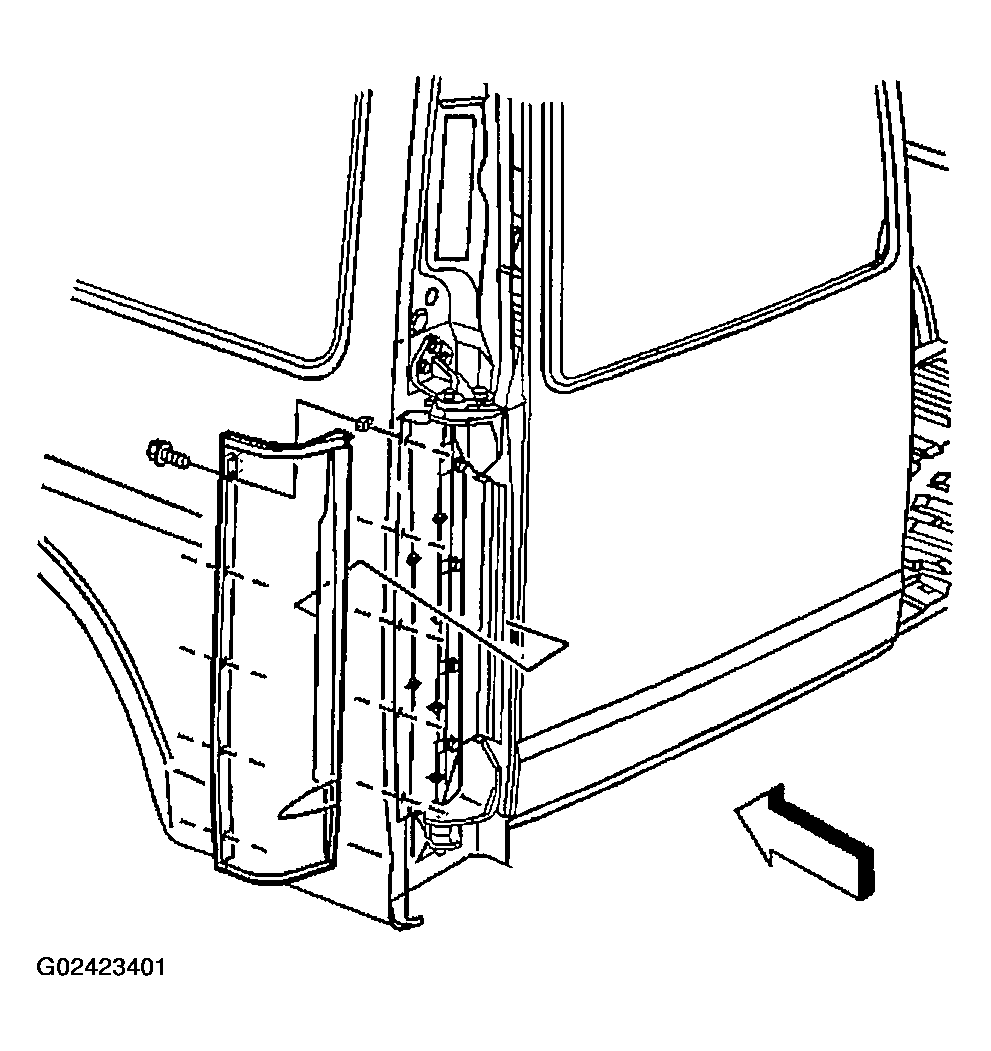

    Fig 1: Installing Rear Door Extension Panel
    G02423401Courtesy of GENERAL MOTORS CORP.
