Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper quarter panel applique.
  2. Remove the center high mounted stoplamp lens. Refer to HIGH MOUNTED STOP LAMP REPLACEMENT .

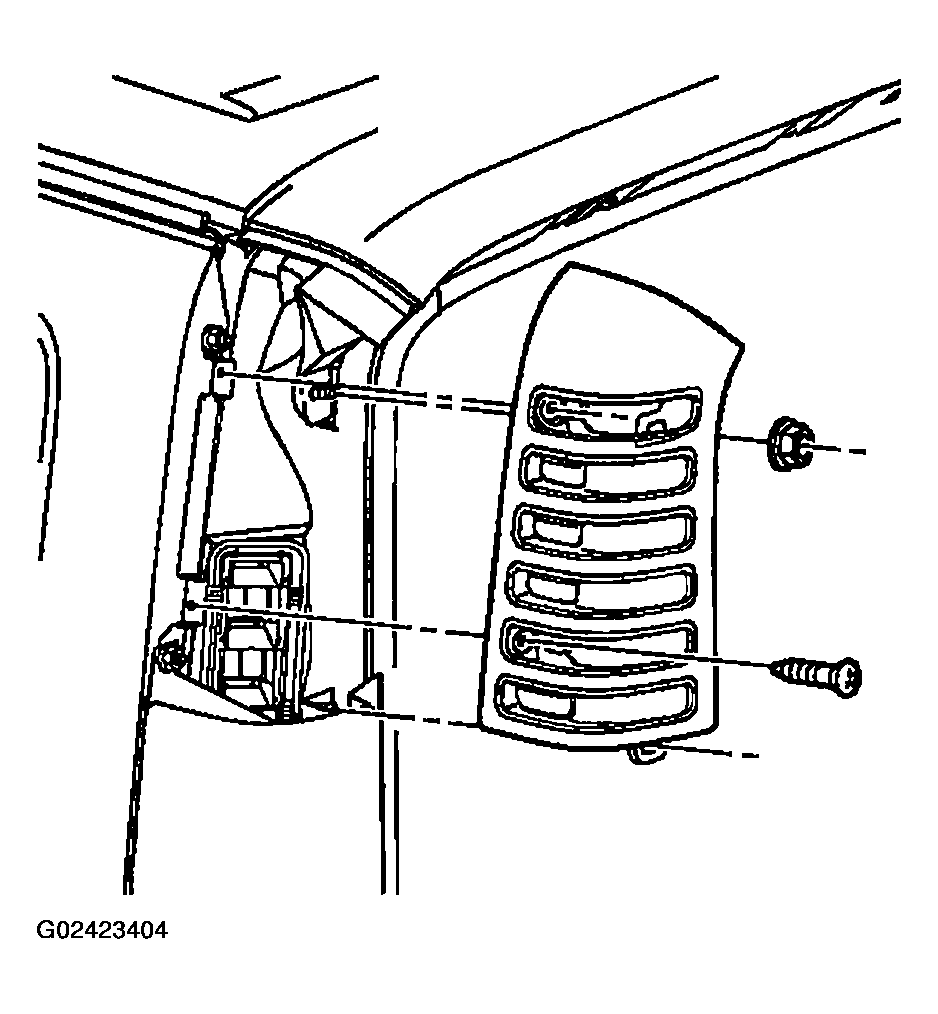

    Fig 1: Removing Upper Quarter Panel Applique
    G02423404Courtesy of GENERAL MOTORS CORP.
  3. Remove the nuts that retain the center high mounted stoplamp applique to the body.
  4. Remove the screws that retain the center high mounted stoplamp applique to the body.
  5. Remove the center high mounted stoplamp applique from the vehicle.

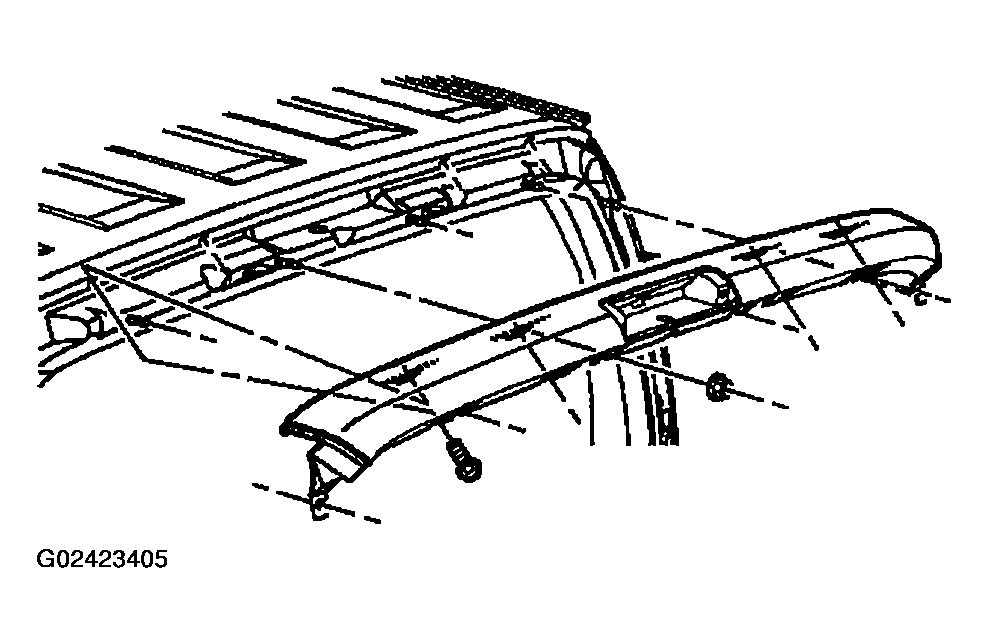

    Fig 2: Removing Center High Mounted Stoplamp Applique
    G02423405Courtesy of GENERAL MOTORS CORP.
