Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the center high mounted stoplamp applique to the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the center high mounted stoplamp applique retaining screws to the body.

    Tighten

    Tighten the screws that retain the center high mounted stoplamp applique to 2 N.m (18 lb in).

  3. Install the center high mounted stoplamp applique retaining nuts to the body.

    Tighten

    Tighten the nuts that retain the center high mounted stoplamp applique to 6 N.m (53 lb ft).

  4. Install the center high mounted stoplamp lens. Refer to HIGH MOUNTED STOP LAMP REPLACEMENT .

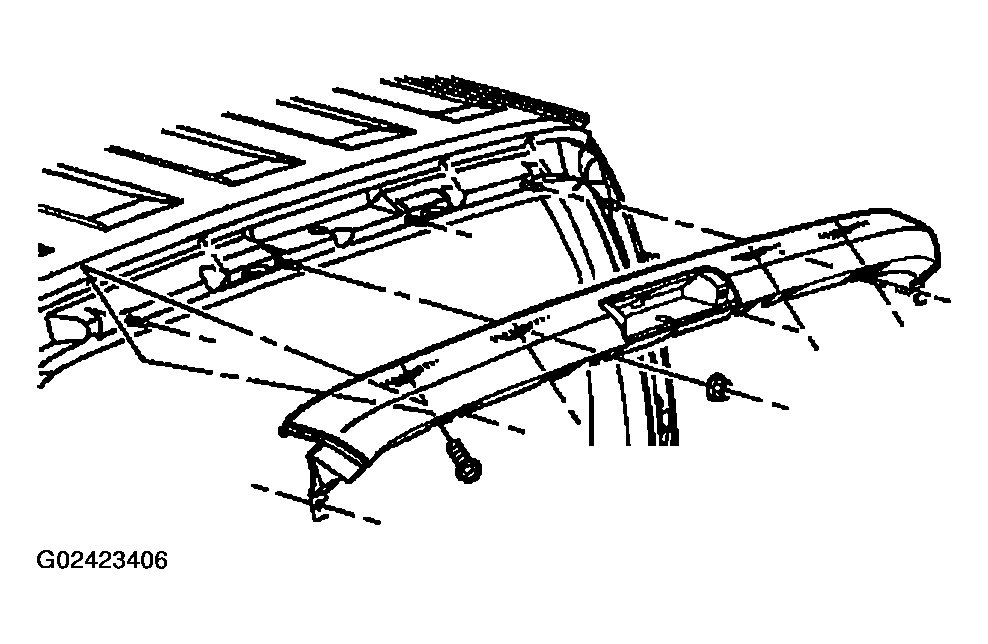

    Fig 1: Installing Center High Mounted Stoplamp Applique
    G02423406Courtesy of GENERAL MOTORS CORP.
  5. Install the upper quarter panel applique.

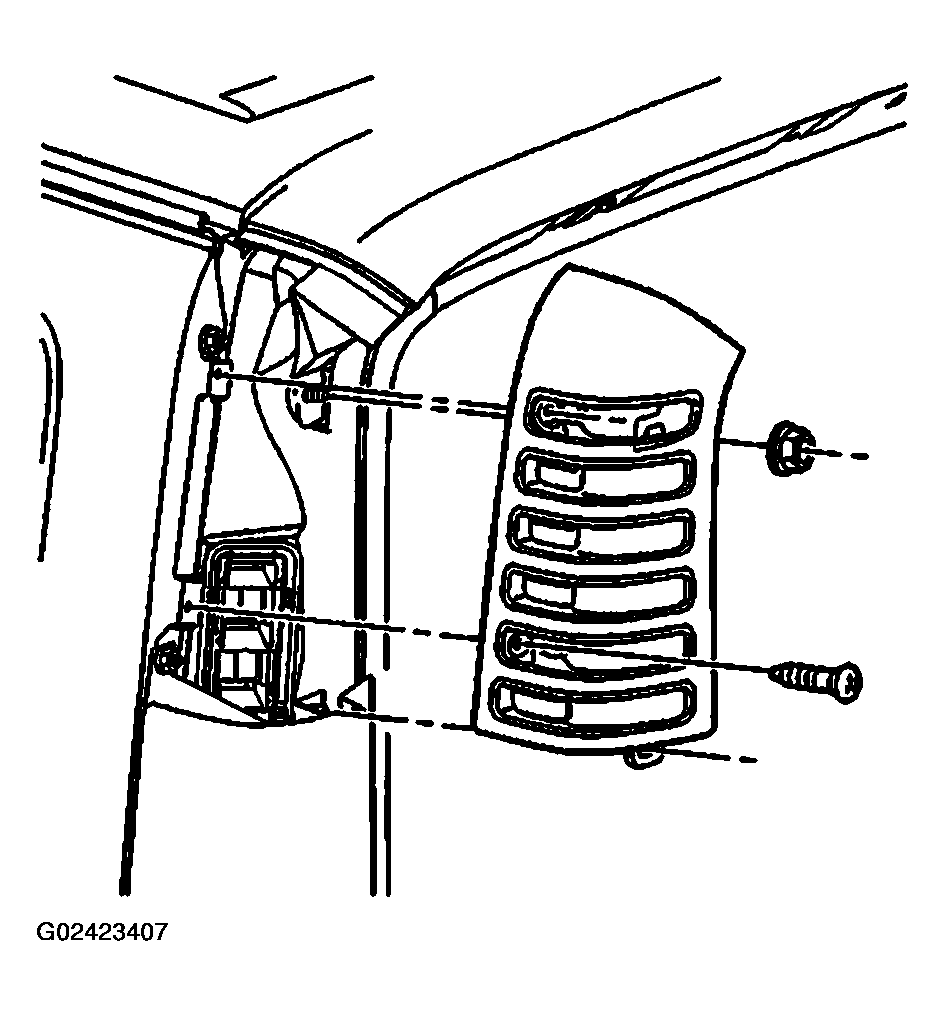

    Fig 2: Installing Upper Quarter Panel Applique
    G02423407Courtesy of GENERAL MOTORS CORP.
