Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the pins (1) that hold the weather-strip to the upper door.
  2. Remove the weatherstrip (3) from the upper door.
  3. Clean the surface of the door with approved cleaning solvent.

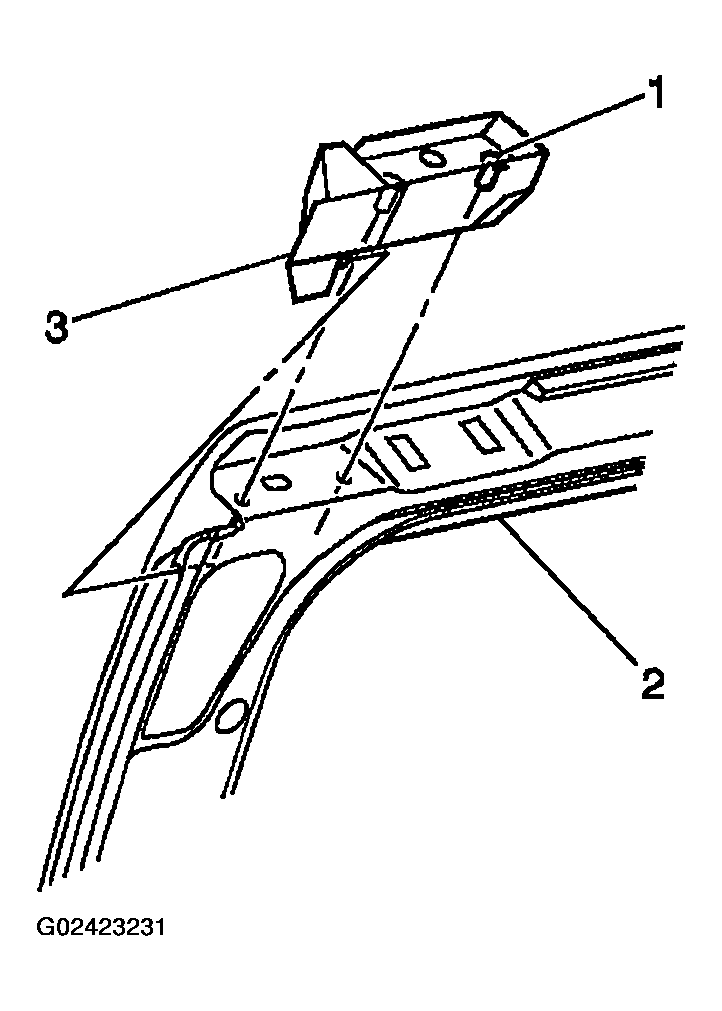

    Fig 1: Removing Rear Side Door Weatherstrip
    G02423231Courtesy of GENERAL MOTORS CORP.
