Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear corner garnish molding. Refer to GARNISH MOLDING REPLACEMENT - REAR CORNER .
  2. Remove the driver side body side rear trim panel. Refer to TRIM PANEL REPLACEMENT - LEFT BODY SIDE .
  3. Remove the passenger side rear corner trim panel. Refer to GARNISH MOLDING REPLACEMENT - REAR DOOR UPPER .
  4. Remove the rear floor trim plate. Refer to FLOOR TRIM PLATE REPLACEMENT - REAR .
  5. Remove the rear door opening frame garnish molding. Refer to GARNISH MOLDING REPLACEMENT - REAR DOOR UPPER .
  6. Pull the rear door opening weatherstrip from the door opening pinch-weld flange. Use 3M Release Agent or the equivalent at the bottom ends of the rear door opening weatherstrip if needed.

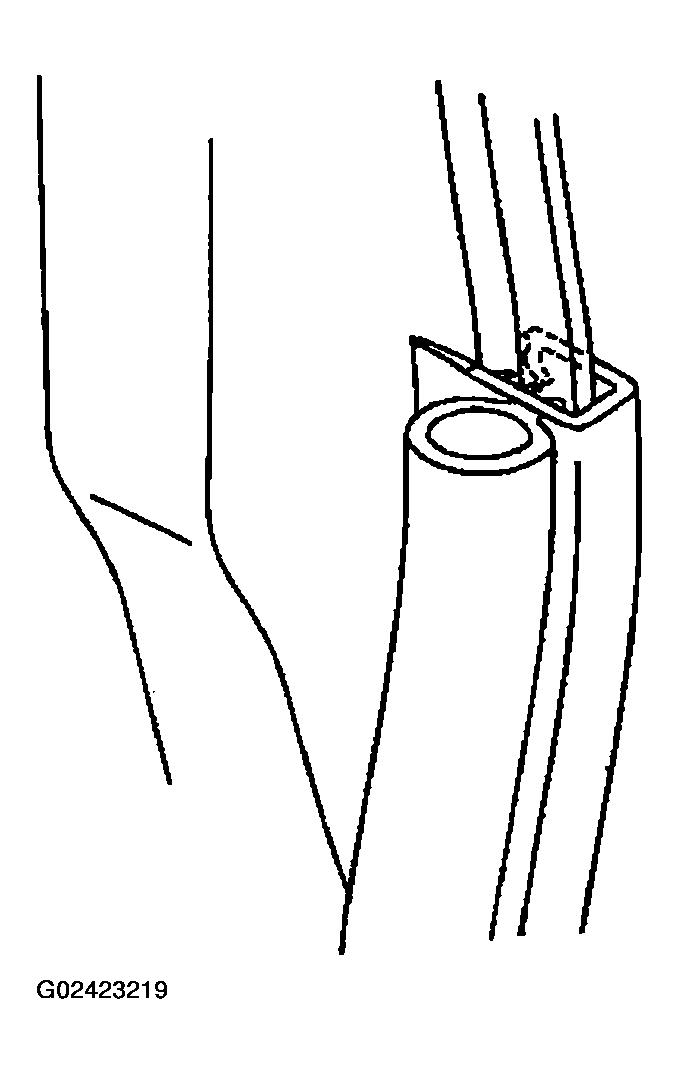

    7. Fig 1: Removing Rear Door Opening Weatherstrip
    G02423219Courtesy of GENERAL MOTORS CORP.
