Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the J 38778  to disengage the retainers around the outside edges of the lower portion of the door trim panel (1).
  2. Carefully pull the door trim panel (1) out of the retainers around the window opening.

    A long flat bladed tool may be necessary to aid in releasing the door trim panel (1) from the window opening retainers.

  3. Remove the front door panel (1) from the vehicle.

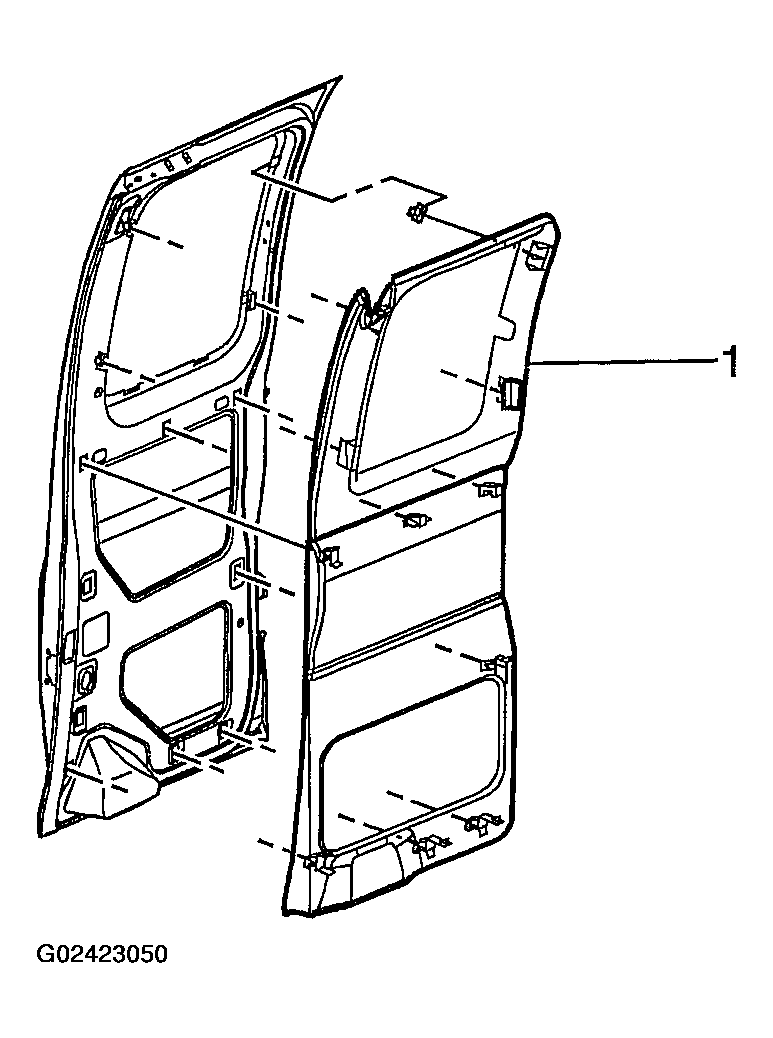

    Fig 1: Removing Side Rear Door Trim Panel - 60/40 Right (E24, 40 Door)
    G02423050Courtesy of GENERAL MOTORS CORP.
