Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the weatherstrip from the door pillar by gently pulling on the weatherstrip.
  2. Remove the weatherstrip retainers from the holes in the door pillar.

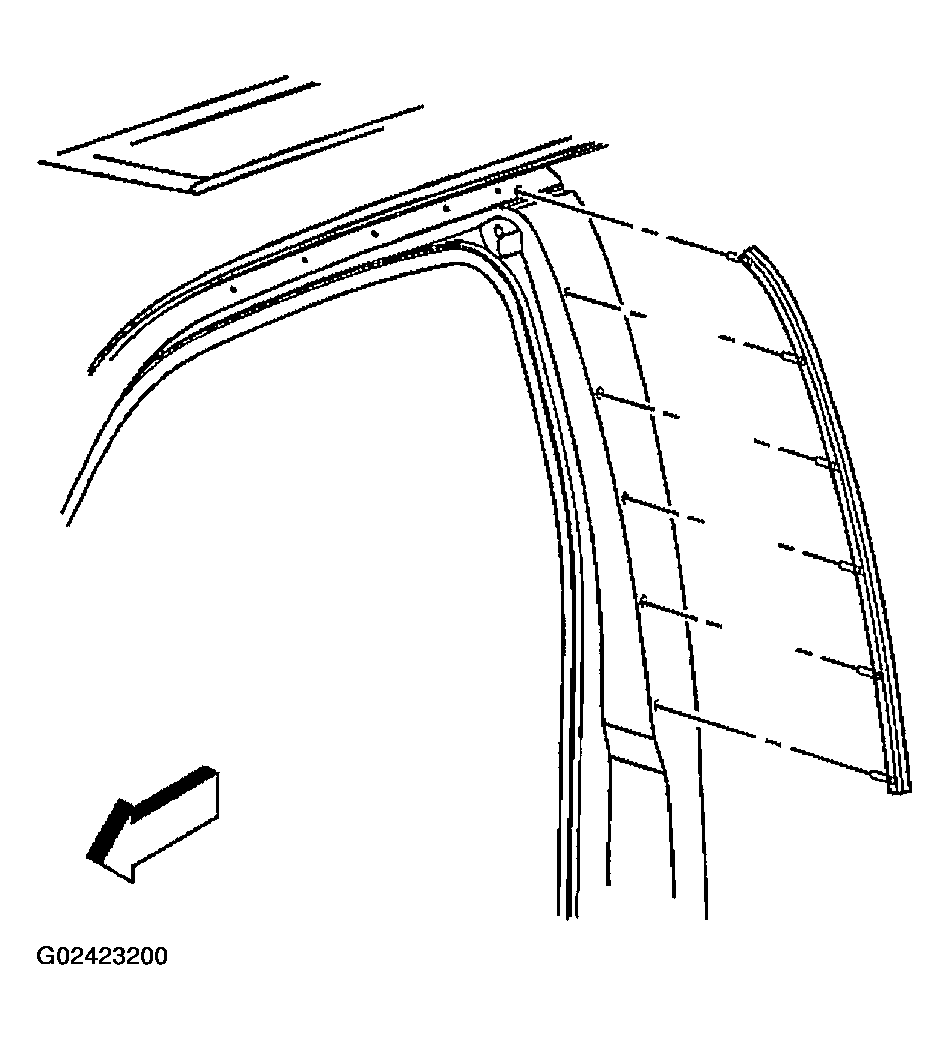

    Fig 1: Removing Front Door Upper Sealing Strip
    G02423200Courtesy of GENERAL MOTORS CORP.
