Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding side door check assembly. Refer to Sliding Door Check Replacement .
  2. Remove the sliding side door lower roller bracket. Refer to Roller Bracket Replacement - Lower .
  3. Remove the bolts (2) that retain the sliding side door lower track (1) to the vehicle.
  4. Remove the sliding side door lower track (1) from the vehicle.

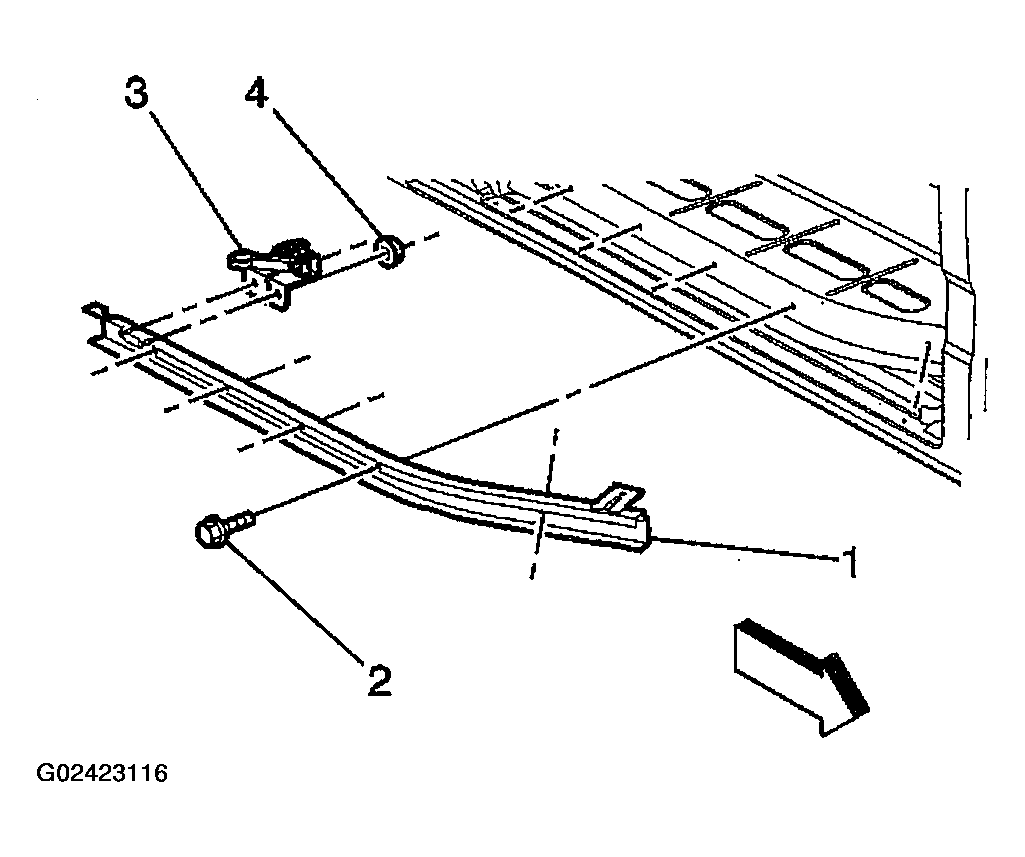

    Fig 1: Removing Sliding Side Door Lower Track
    G02423116Courtesy of GENERAL MOTORS CORP.
