Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the side rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door - 60/40 Right (E24, 40 Door)  or Trim Panel Replacement - Side Rear Door - 60/40 Right (E24, 60 Door)  or Trim Panel Replacement - Side Rear Door - 60/40 Left (E26, 40 Door)  or Trim Panel Replacement - Side Rear Door - 60/40 Left (E26, 60 Door) .
  2. Remove the lock rod (3) from the side rear door upper latch (2).
  3. Remove the bolt (1) that retains the side rear door upper latch (2) to the door.
  4. Remove the side rear door upper latch (2) from the door.

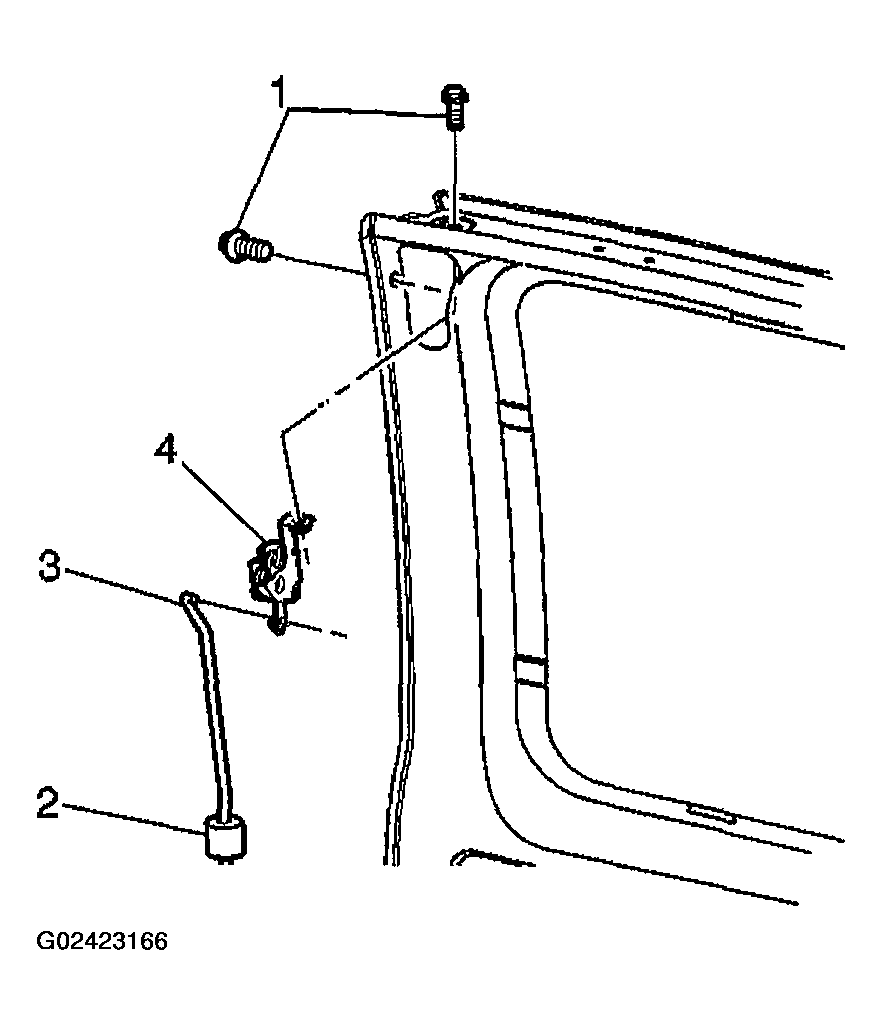

    Fig 1: Removing Rear Door Latch (W/O PRP)
    G02423166Courtesy of GENERAL MOTORS CORP.
