Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Grasp the front door rear garnish molding.

    Gently pull the molding in order to disengage the retaining clips.

  2. Remove the front door rear garnish molding from the vehicle.
  3. Inspect the front door rear garnish molding for broken or missing retaining clips. Replace any clips, if needed.

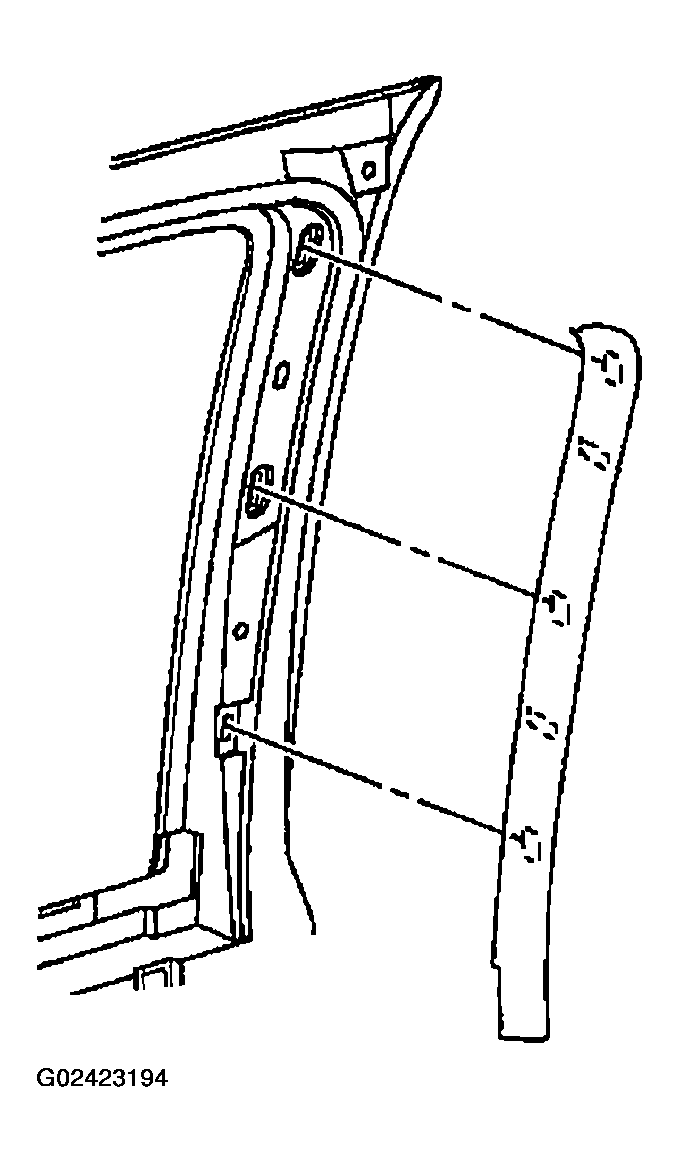

    Fig 1: Removing Front Door Rear Garnish Molding
    G02423194Courtesy of GENERAL MOTORS CORP.
