Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the inside door handle bezel. Refer to Handle Bezel Replacement - Inside - Rear .
  2. Remove the screw (1) from the door trim plate (2).
  3. Partially remove the trim plate (2) from the door trim panel.
  4. Disconnect the electrical connectors from the door lock switch, if equipped.
  5. Remove the front door trim plate (2) from the vehicle.

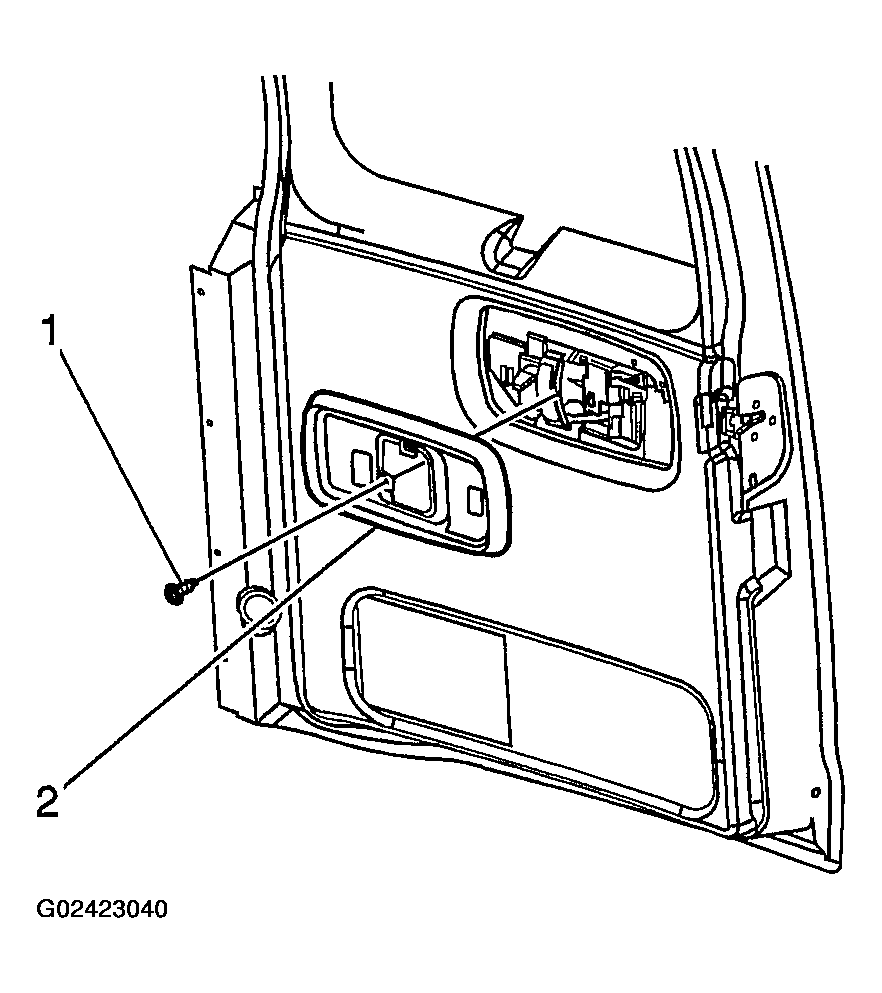

    Fig 1: Removing Rear Door Trim Plate
    G02423040Courtesy of GENERAL MOTORS CORP.
