Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use 3M General Purpose Adhesive Cleaner 3M P/N 08987 or the equivalent in order to remove the side front door check strap seal form the door.
  2. Clean the side front door of all of the old adhesive.

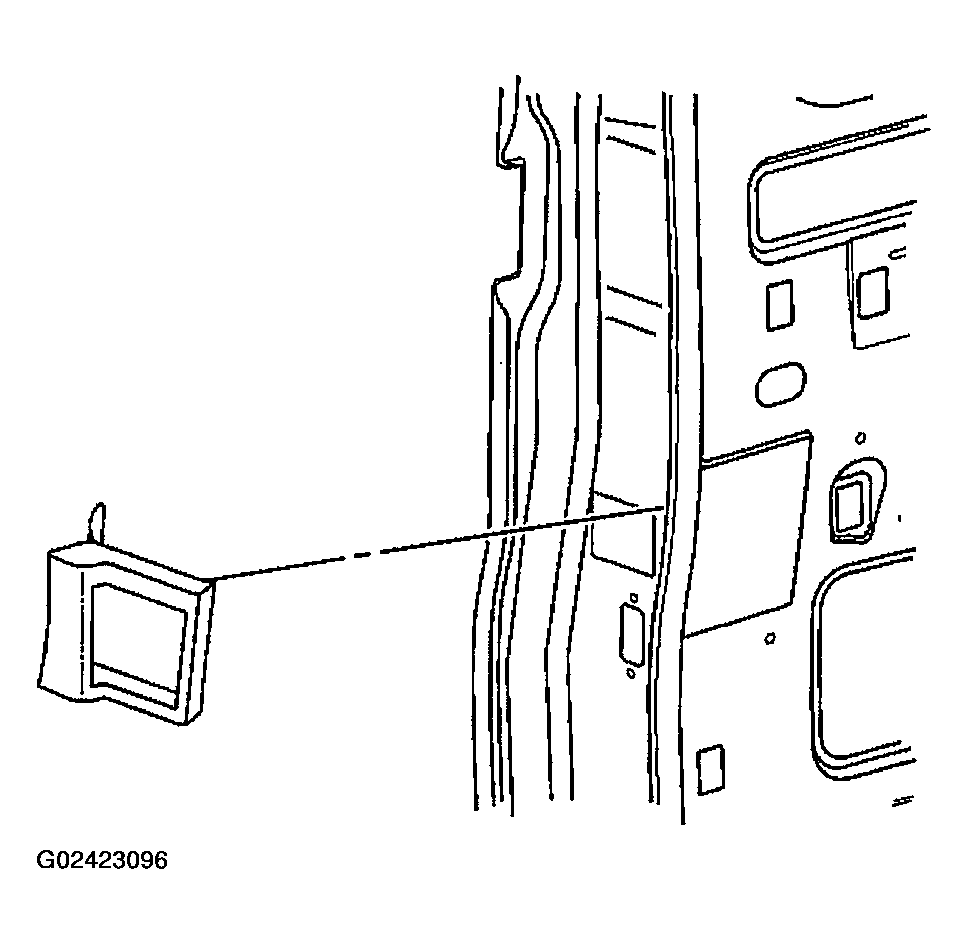

    Fig 1: Removing Side Front Door Check Strap Seal
    G02423096Courtesy of GENERAL MOTORS CORP.
