Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the hood.
  2. Disconnect the electrical connectors from the horn assembly.
  3. Remove the nut (2) that retains the horn mounting bracket (1) to the vehicle.
  4. Remove the horn assembly from the vehicle.
  5. Note the location of the trumpet mouth relative to the mounting bracket.
  6. Remove the nut holding the horn to the mounting bracket.
  7. Remove the horn from the mounting bracket.

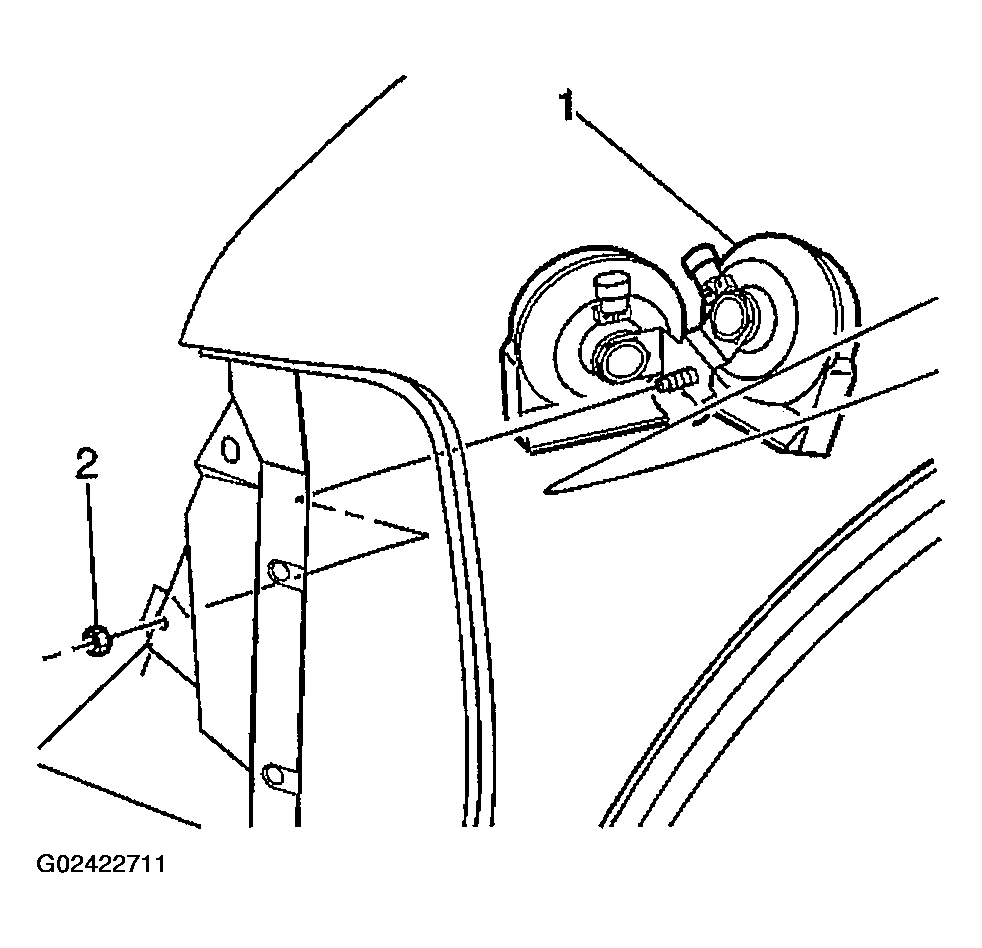

    Fig 1: Removing Horn Mounting Bracket & Horn
    G02422711Courtesy of GENERAL MOTORS CORP.
