Test Description
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

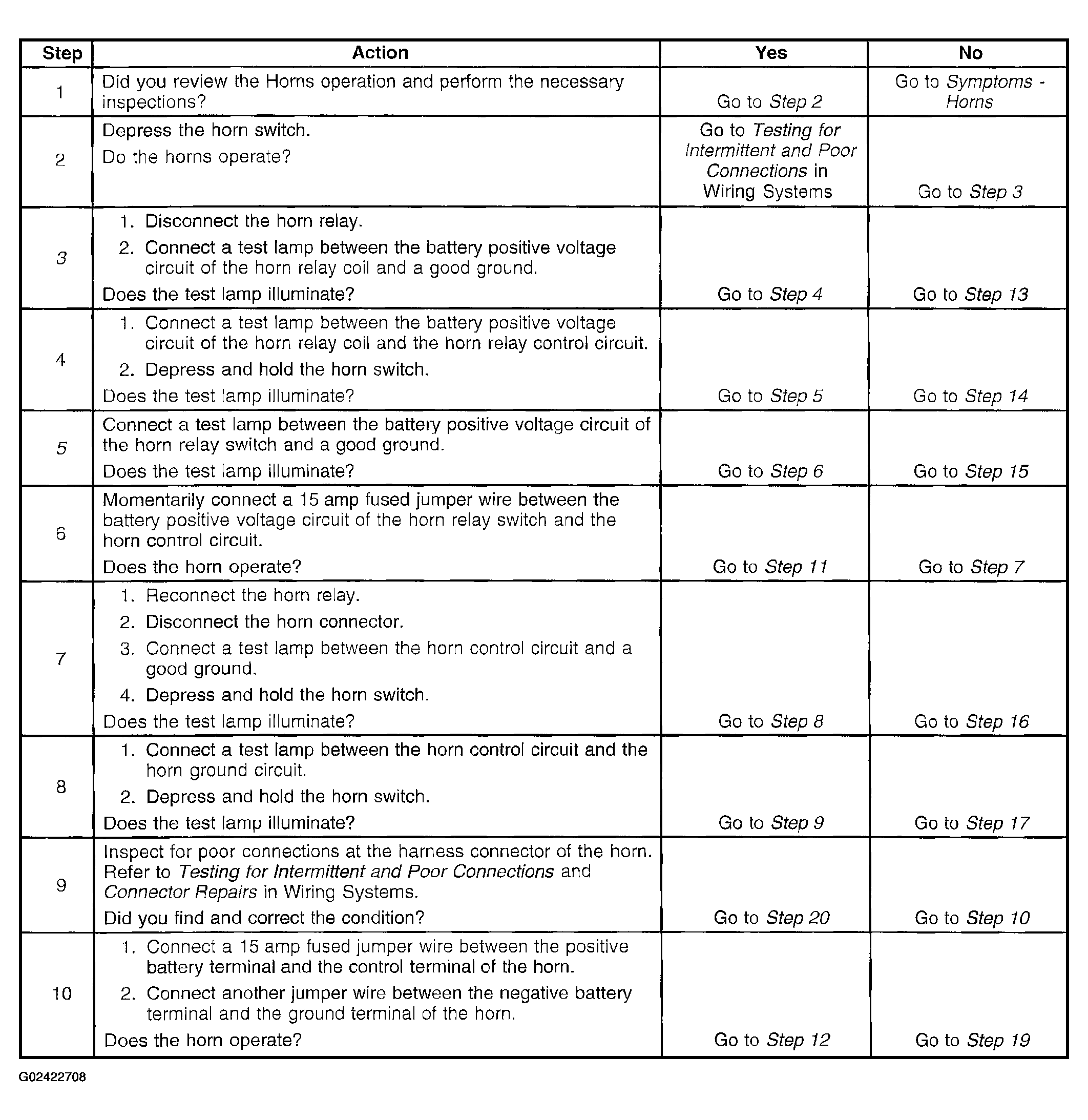

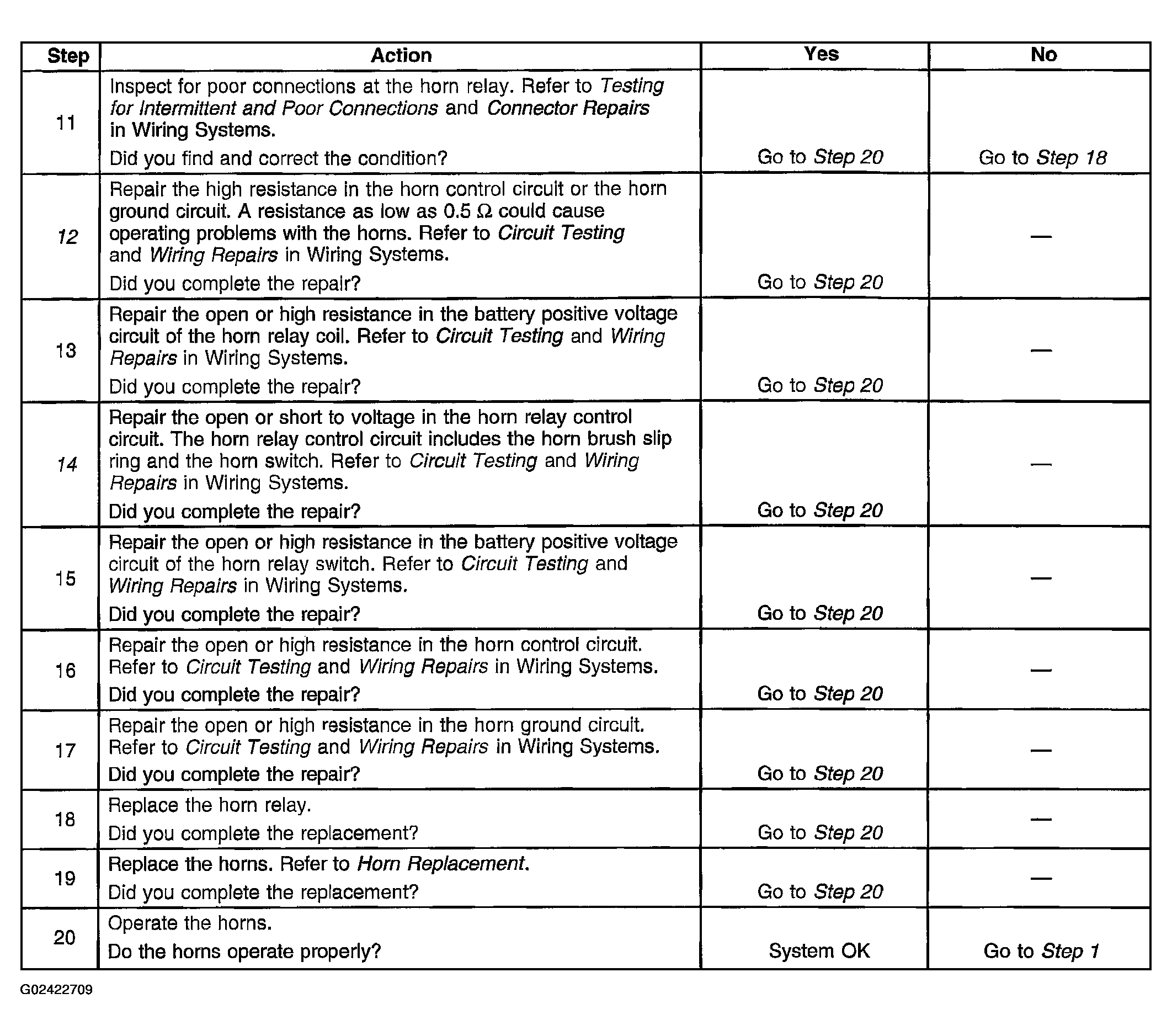

The numbers below refer to the step numbers on the diagnostic table.
- 3. Tests for voltage at the battery positive voltage terminal of the horn relay coil.
- 5. Tests for voltage at the battery positive voltage terminal of the horn relay switch. The HORN fuse supplies power to the battery positive voltage terminal of the horn relay switch.
- 12. The horns need maximum current flow to operate properly. A high resistance greater than 0.5 Ω in the horn control circuit or the horn ground circuit could cause operating problems with the horns. Inspect the circuits for faults that would restrict current flow.
- 14. The horn relay control circuit includes the horn slip ring and the horn switch. The horn slip ring and the horn switch must be tested for a high resistance, an open or a short to voltage when testing the relay control circuit.
