Test Description

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

5. This step tests the primary circuit of the access panel relay.
7. This step tests if the remote control door lock receiver is receiving and acting on an input from the transmitter.
14. An open RFA fuse may be caused by a short to ground in the access panel actuator voltage supply circuit or a shorted access panel actuator.

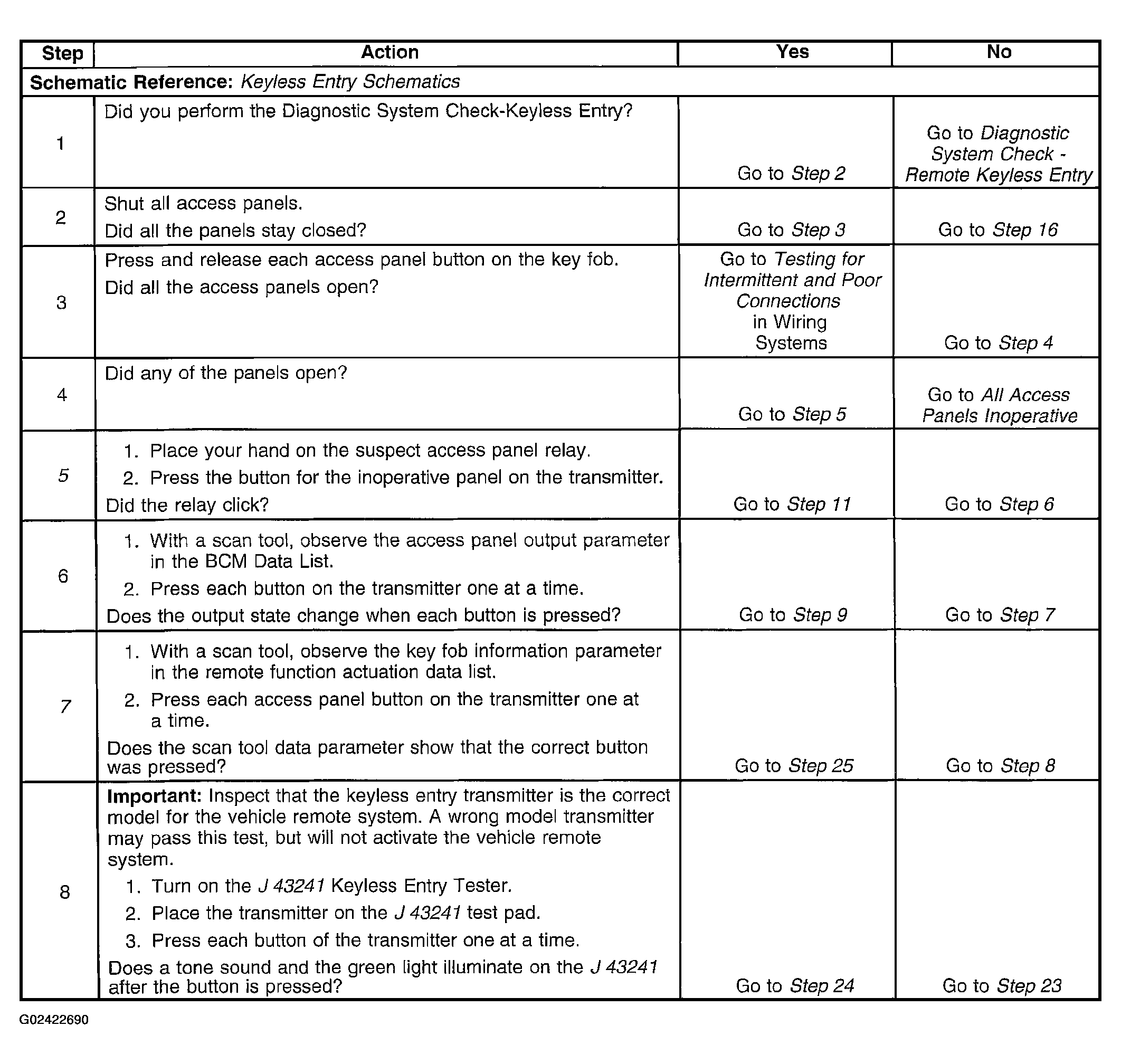

Fig 1: Identifying One Access Panel Inoperative Diagnostic Table (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

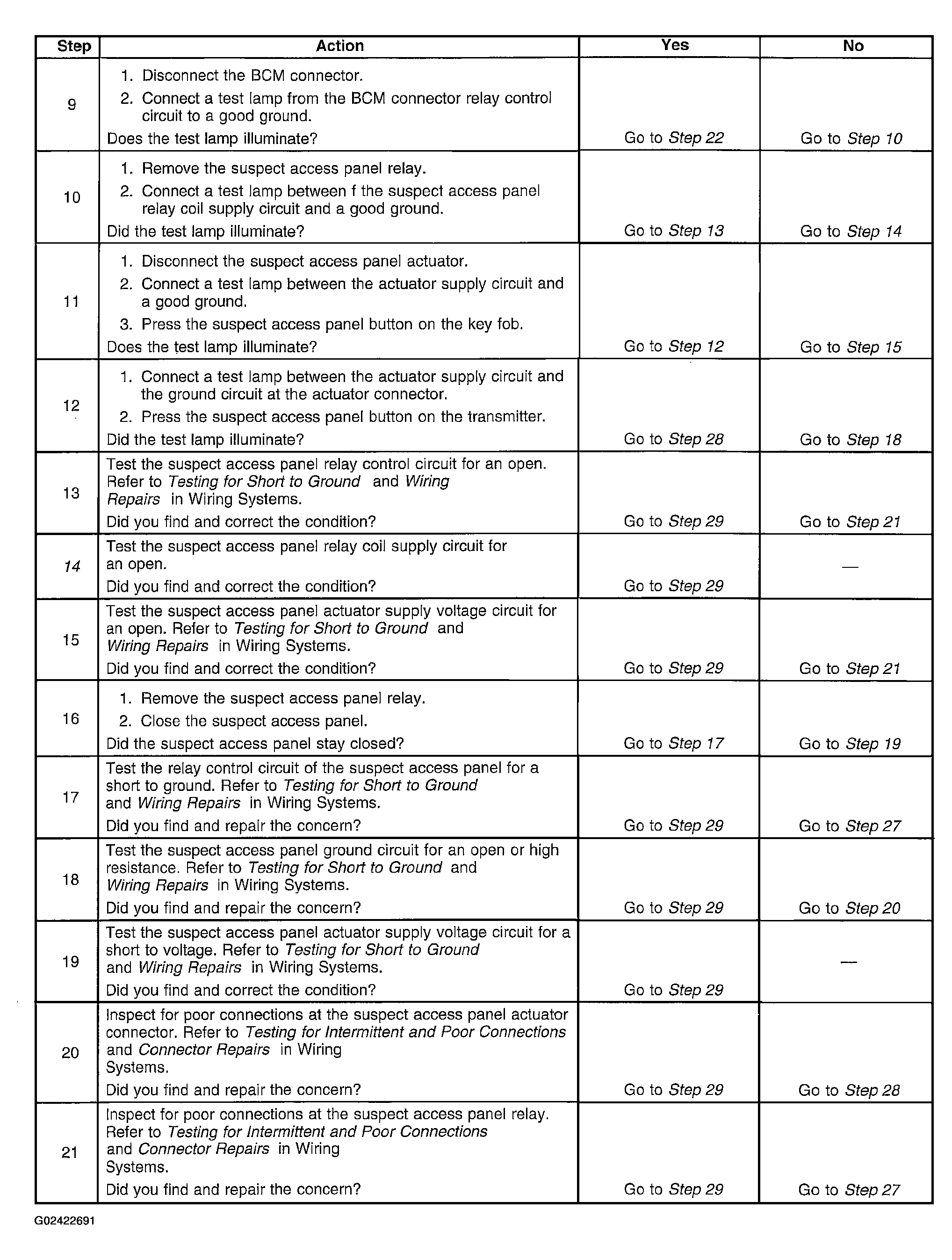

Fig 2: Identifying One Access Panel Inoperative Diagnostic Table (2 Of 3)
Courtesy of GENERAL MOTORS CORP.

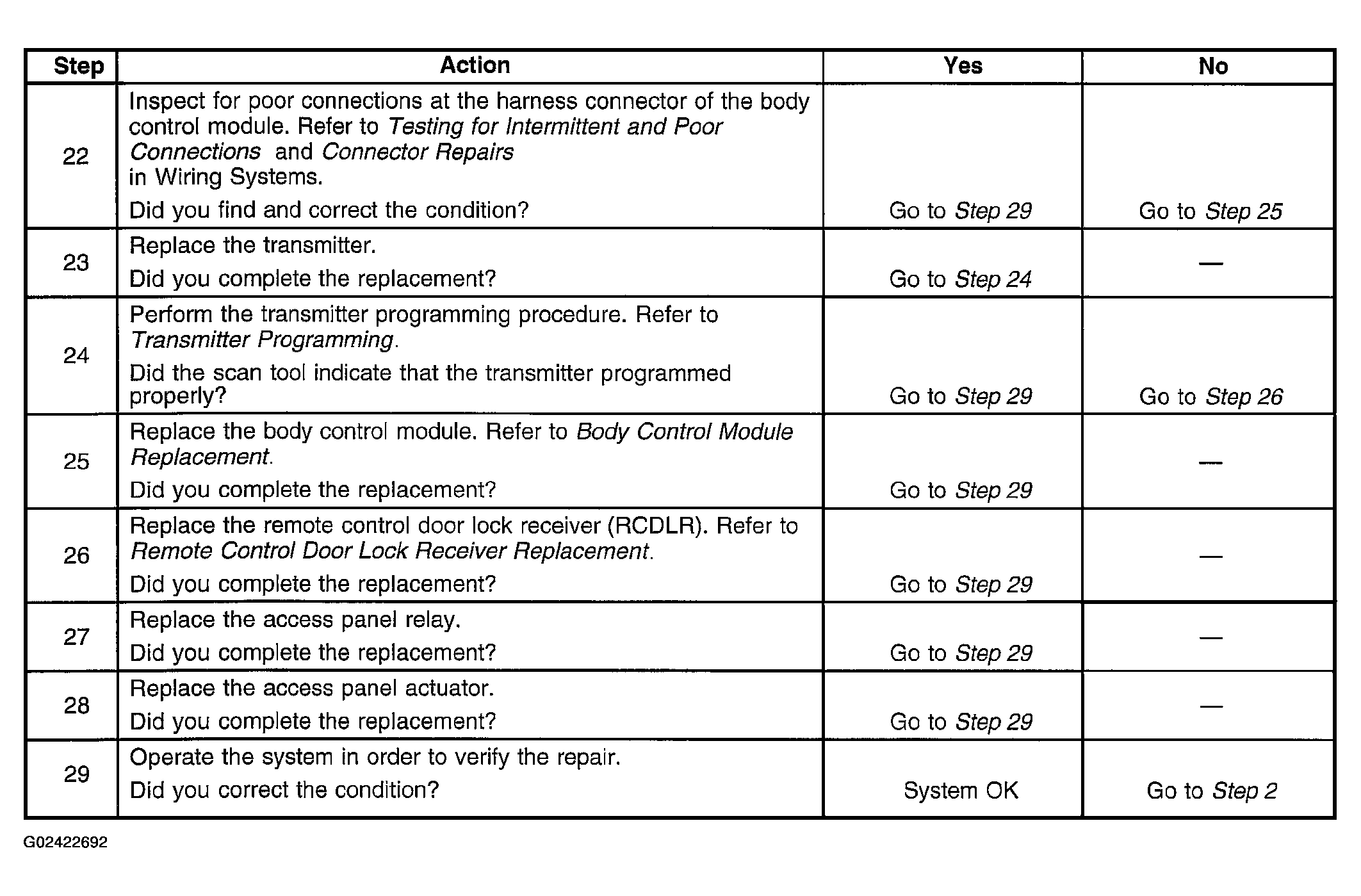

Fig 3: Identifying One Access Panel Inoperative Diagnostic Table (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
