Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the trim plate bezel to the I/P (1).
  2. Connect the electrical connectors to the switches and power ports mounted to the instrument panel cluster trim plate bezel (1).
  3. Install the steering column. Refer to STEERING COLUMN REPLACEMENT .
  4. Install the driver knee bolster bracket. Refer to Knee Bolster Bracket Replacement - Left .
  5. Press the I/P cluster trim plate bezel (1) towards the I/P in order to engage the retainers.
    CAUTION: Refer to FASTENER NOTICE .
  6. Install the I/P cluster trim plate bezel nuts (2).

    Tighten

    Tighten the nuts (2) to 6 N.m (53 lb in).

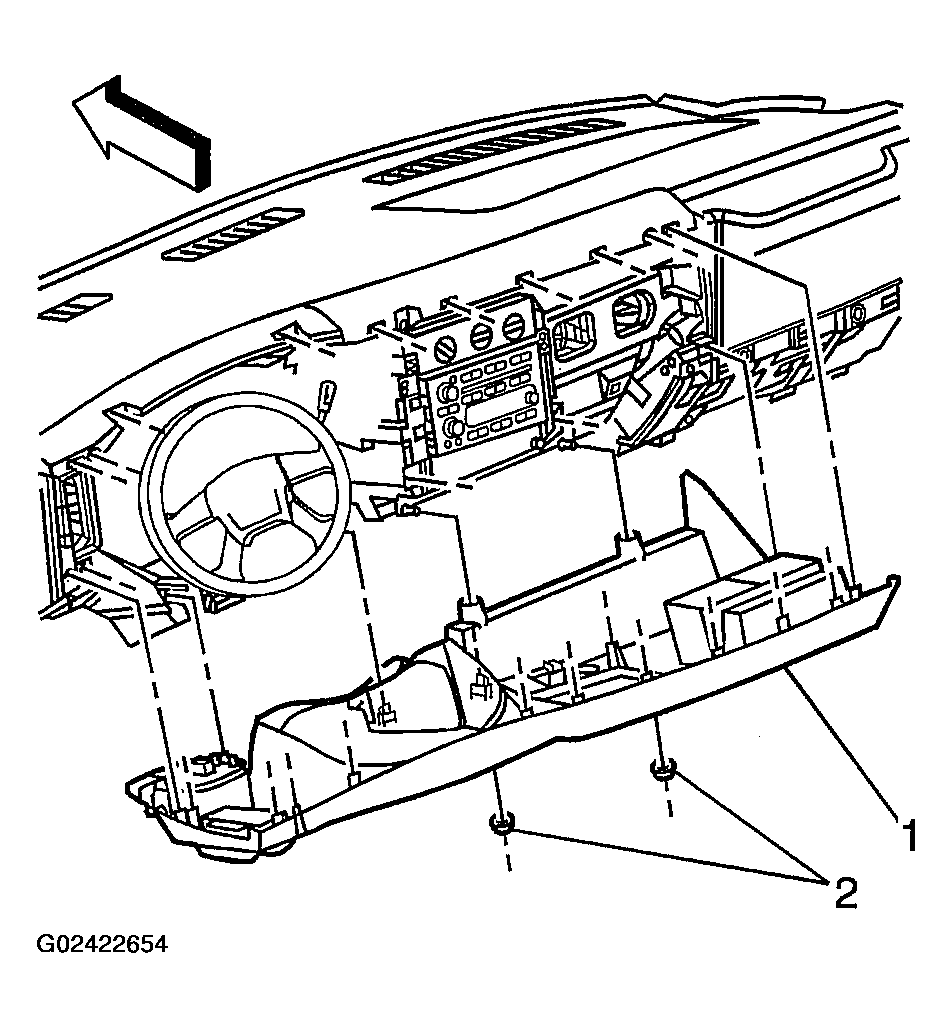

    Fig 1: Installing I/P Cluster Trim Plate Bezel
    G02422654Courtesy of GENERAL MOTORS CORP.
  7. Remove the blocks from the wheels.
  8. Release the parking brake.
