Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the I/P upper trim pad (2) forward in order to engage the front hooks of the I/P upper trim pad (2) to the I/P carrier.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the I/P upper trim pad screws (1, 3).

    Tighten

    Tighten the I/P upper trim pad screws to 3 N.m (18 lb in).

  3. Install the cluster trim plate bezel. Refer to Trim Plate Bezel Replacement - Instrument Panel (I/P) Cluster .
  4. Install the left and right windshield garnish moldings. Refer to WINDSHIELD GARNISH MOLDING REPLACEMENT .

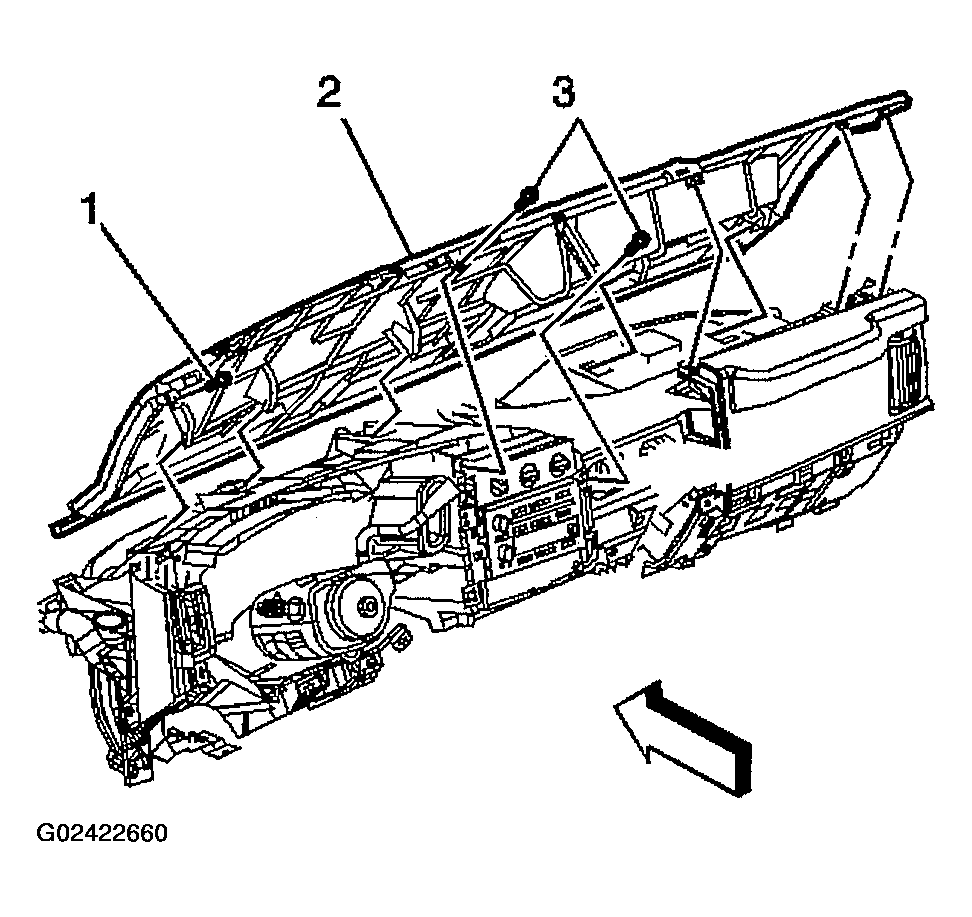

    Fig 1: Installing I/P Upper Trim Pad
    G02422660Courtesy of GENERAL MOTORS CORP.
