Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the I/P driver knee bolster panel to the vehicle.
  2. Align the retainers on the I/P driver knee bolster panel (1) with the slots at the top of the knee bolster bracket.
  3. Press towards the front of the vehicle in order to engage the I/P driver knee bolster panel (1) retainers.
    CAUTION: Refer to FASTENER NOTICE .
  4. Install the knee bolster panel (1) bolts (2).

    Tighten

    Tighten the bolts to 3.5 N.m (31 lb in).

  5. Enable the SIR. Refer to ZONE 3 .

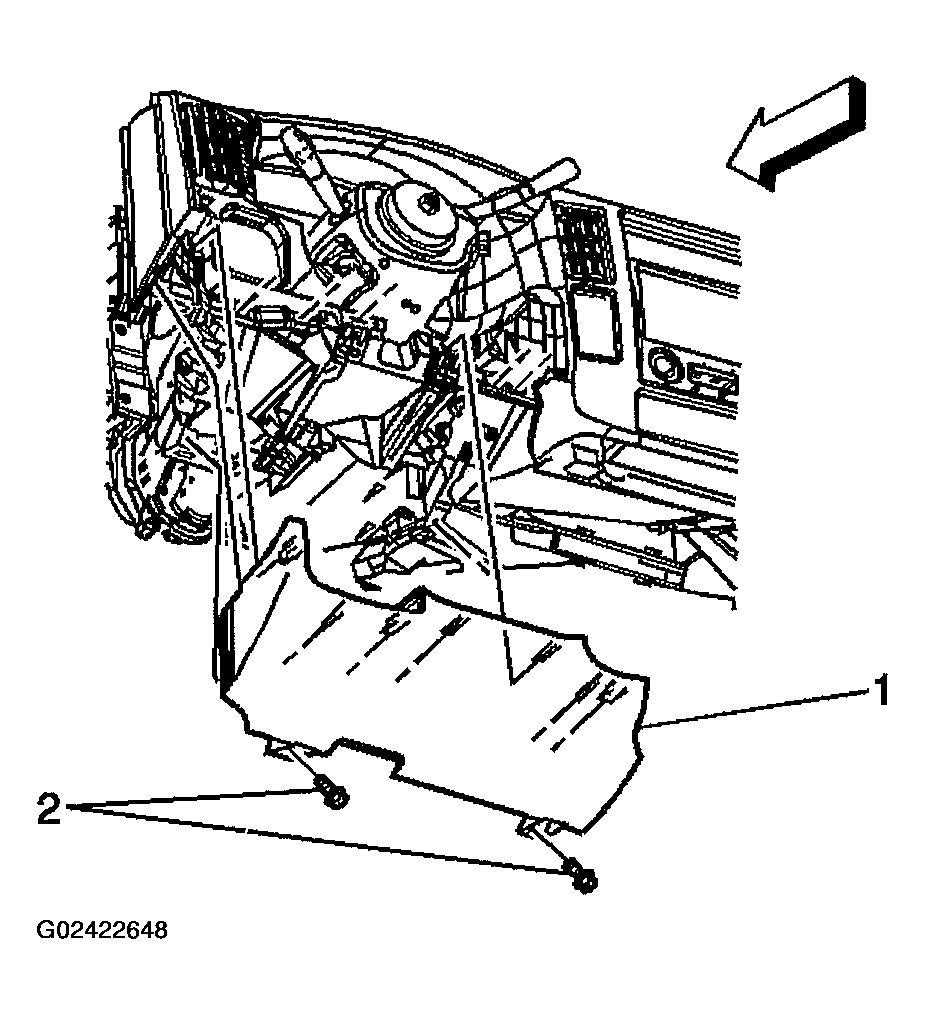

    Fig 1: Installing I/P Driver Knee Bolster Panel
    G02422648Courtesy of GENERAL MOTORS CORP.
