Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the knee bolster trim panel. Refer to Knee Bolster Replacement - Left .
  2. Remove the nuts (2) securing the knee bolster (1) to the knee bolster brackets.
  3. Remove the knee bolster (1).

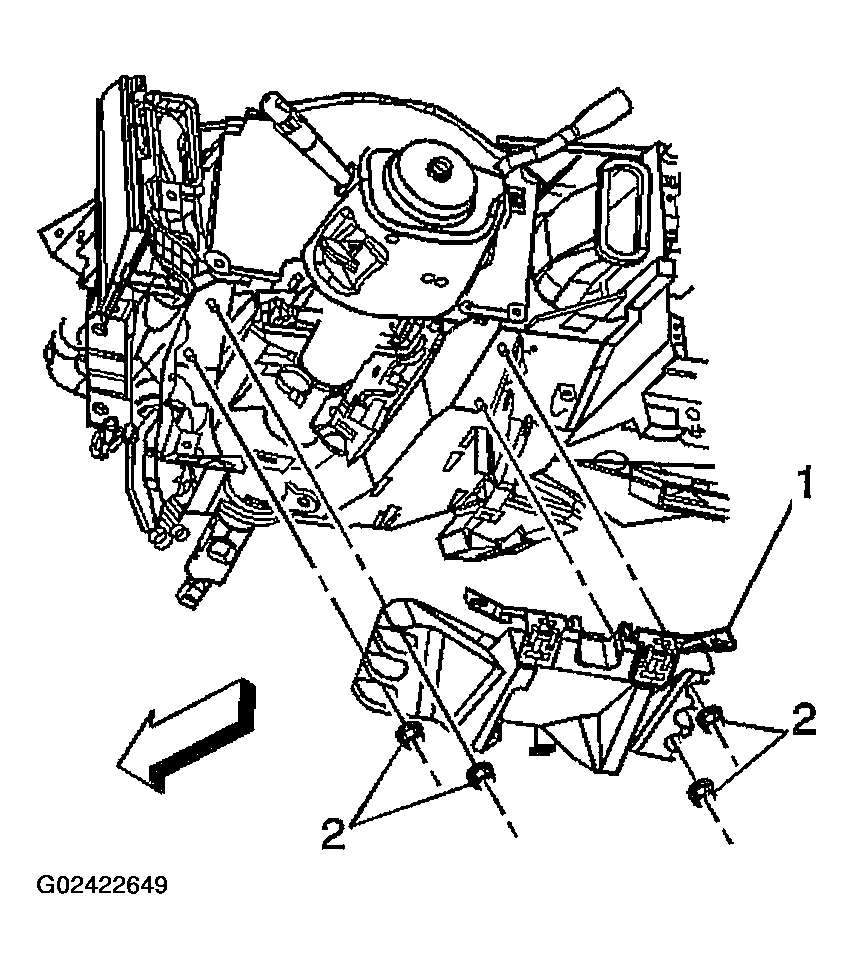

    Fig 1: Removing Knee Bolster - Left
    G02422649Courtesy of GENERAL MOTORS CORP.
  4. Remove the nuts (1) securing the inner and outer knee bolster brackets (2) to the instrument panel (I/P).
  5. Remove the knee bolster brackets (2).

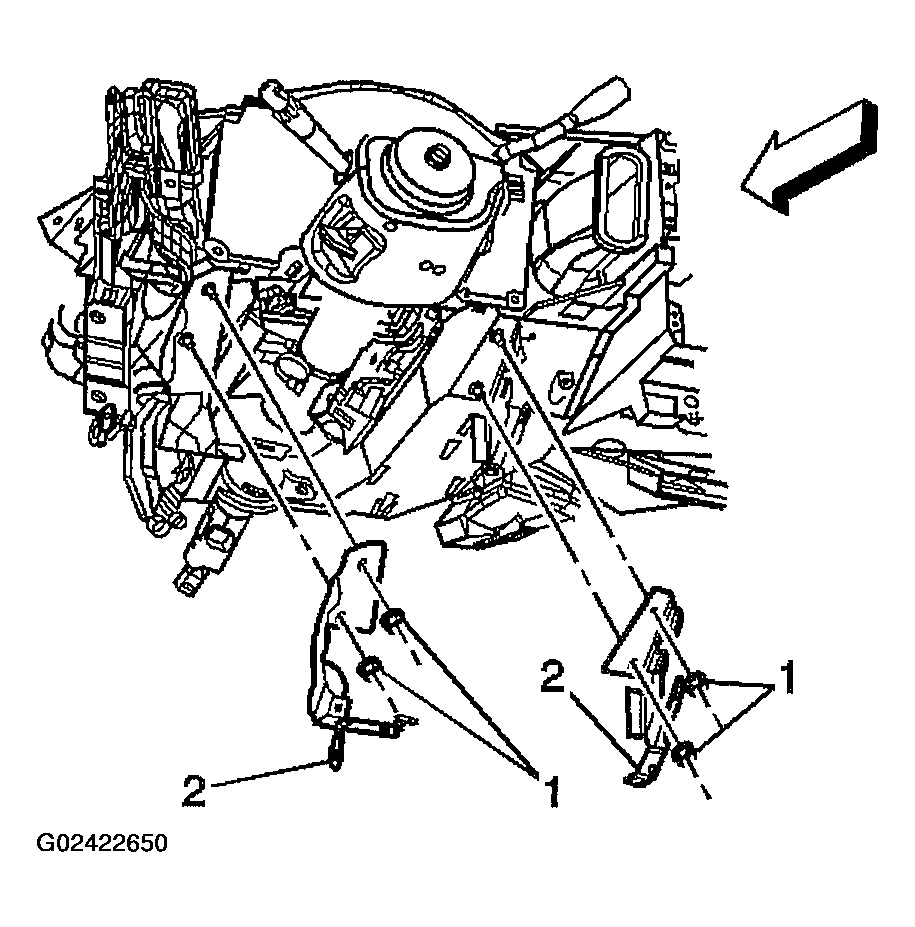

    Fig 2: Removing Knee Bolster Brackets - Left
    G02422650Courtesy of GENERAL MOTORS CORP.
