Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  2. Remove the instrument panel cluster trim plate. Refer to Trim Plate Bezel Replacement - Instrument Panel (I/P) Cluster .
  3. Tilt the steering column fully down, if equipped with tilt steering.
  4. Remove the screws (2) that retain the instrument cluster to the instrument panel carrier.
  5. Remove the instrument cluster (1) from the vehicle.

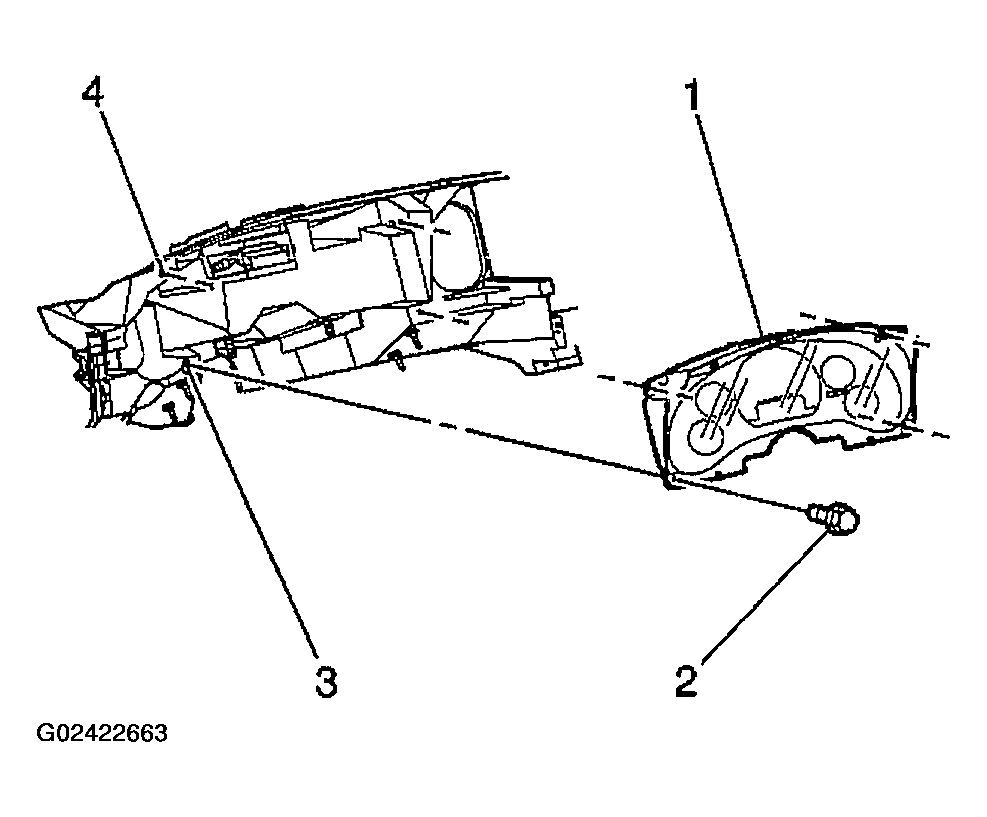

    6. Fig 1: Removing Instrument Cluster
    G02422663Courtesy of GENERAL MOTORS CORP.
