Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP cluster. Refer to Instrument Panel Cluster (IPC) Replacement .
  2. Use a flat-bladed tool in order to disengage the snap retainers (2) at the cluster lens and carrier (1) to the cluster housing.

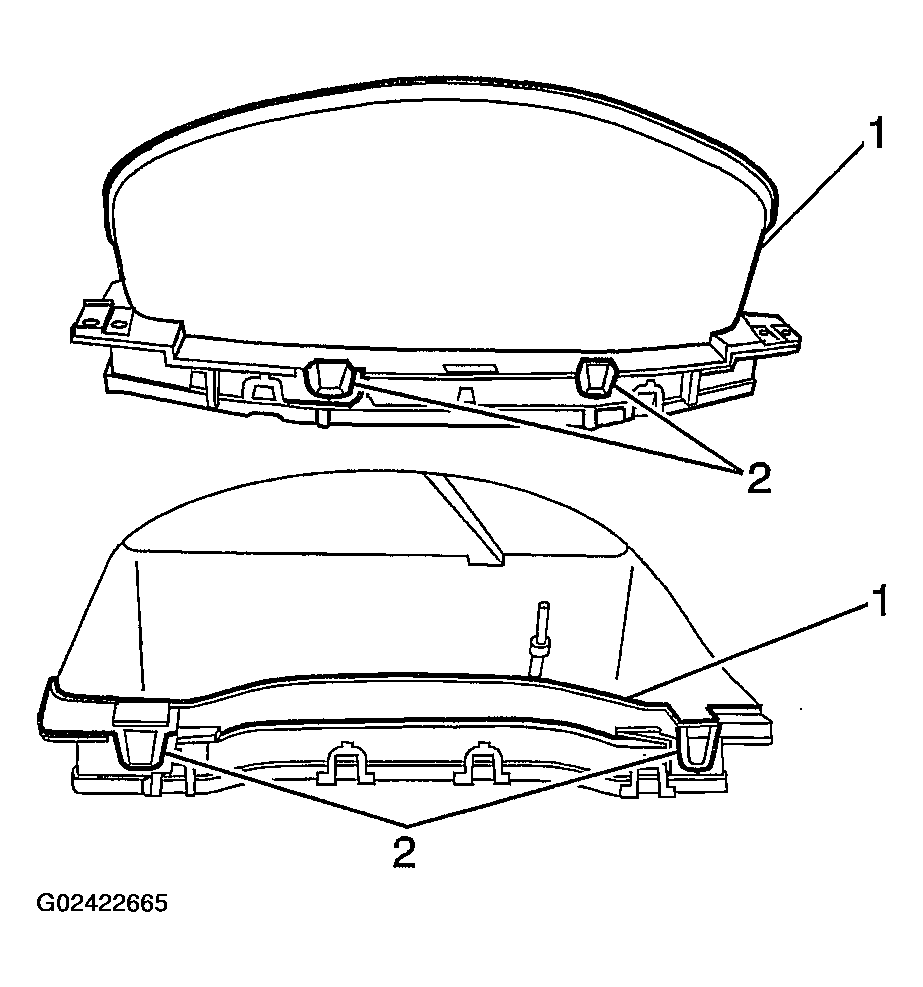

    Fig 1: Removing IP Cluster Lens Retainers
    G02422665Courtesy of GENERAL MOTORS CORP.
  3. Remove the IP cluster lens and carrier (2).

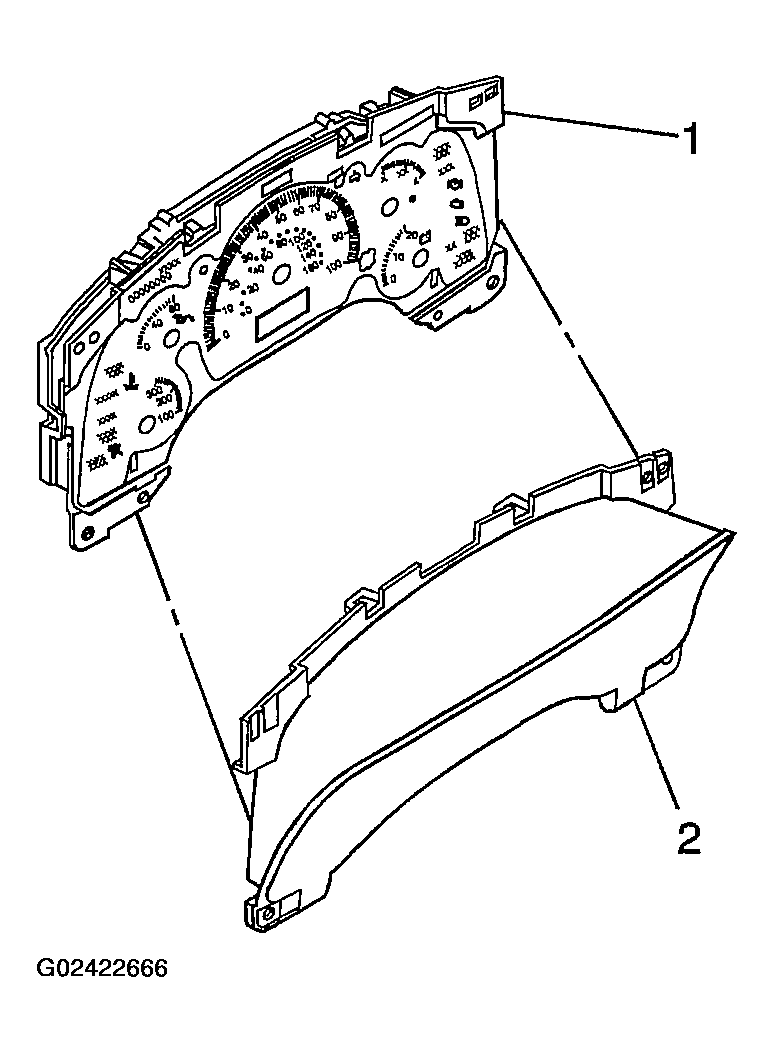

    Fig 2: Removing IP Cluster Lens & Carrier
    G02422666Courtesy of GENERAL MOTORS CORP.
