Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the IP cluster lens and carrier (2) to the IP cluster (1).

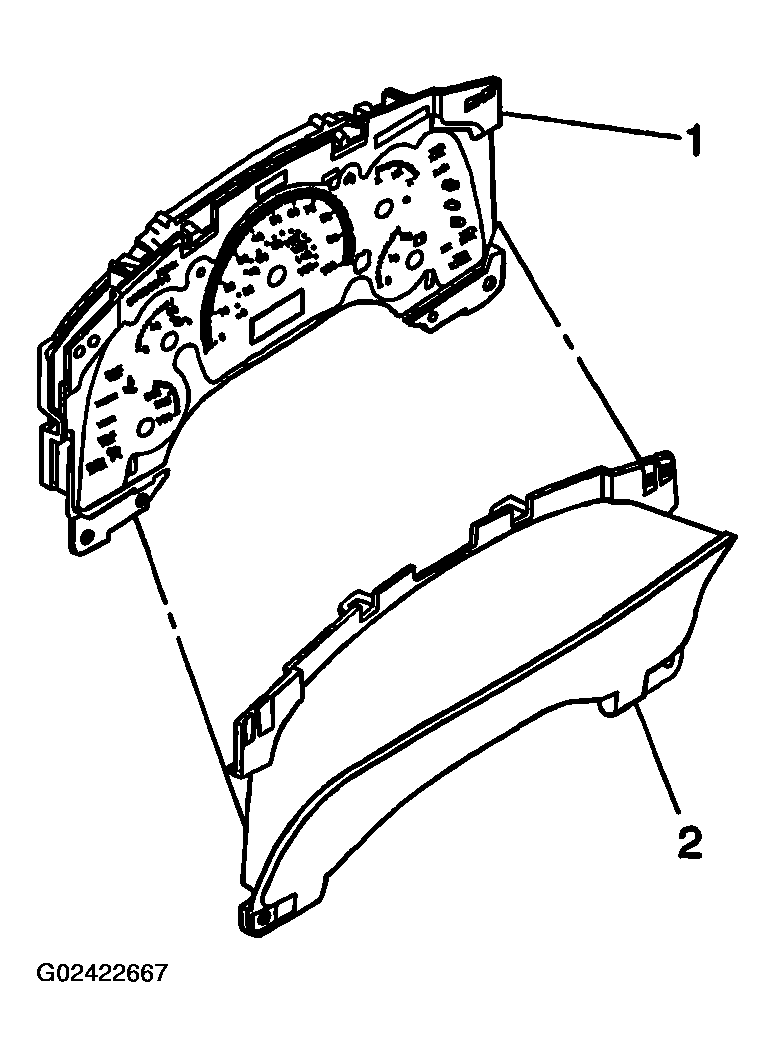

    Fig 1: Installing IP Cluster Lens & Carrier
    G02422667Courtesy of GENERAL MOTORS CORP.
  2. Push the IP cluster lens and carrier (1) toward the IP cluster (2) to engage the snap retainers.
  3. Install the IP cluster. Refer to Instrument Panel Cluster (IPC) Replacement .

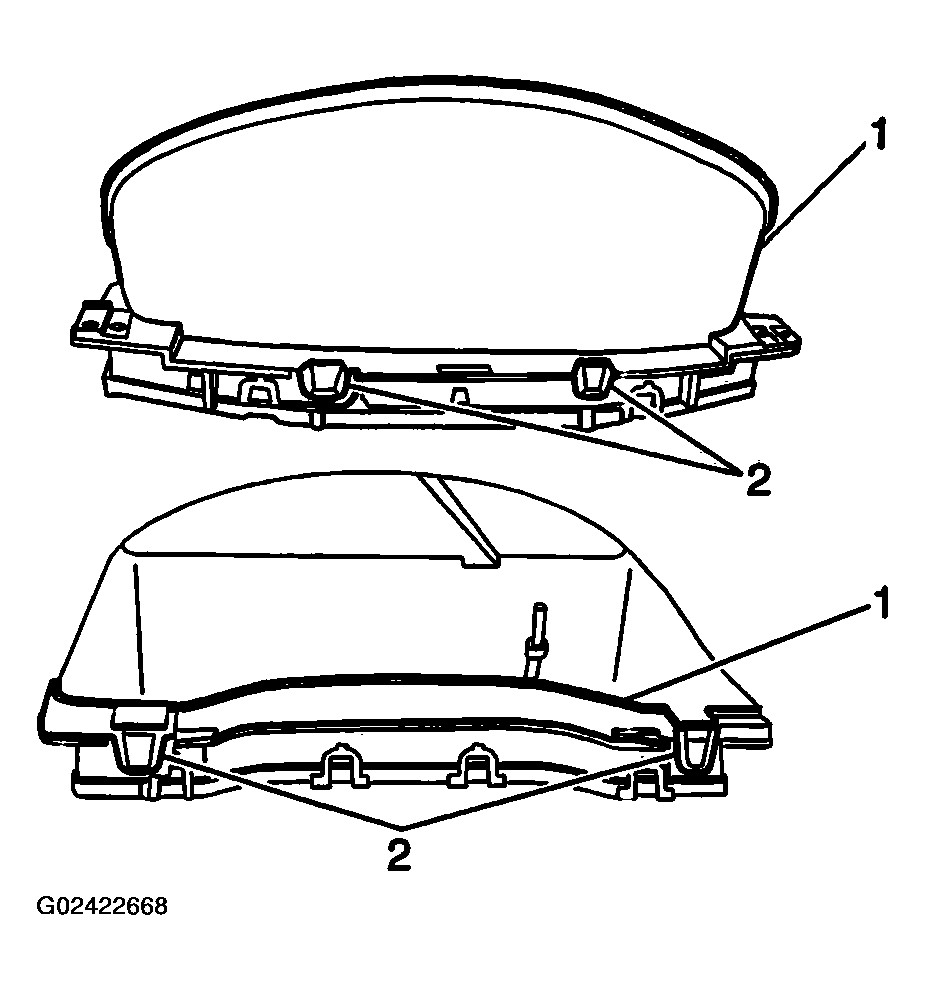

    Fig 2: Installing IP Cluster Lens Retainers
    G02422668Courtesy of GENERAL MOTORS CORP.
