Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR. Refer to ZONE 5 .
  2. Remove the knee bolster trim panel. Refer to Knee Bolster Replacement - Right .
  3. Remove the instrument panel (I/P) upper trim pad. Refer to Trim Pad Replacement - Instrument Panel (I/P) Upper .
  4. Remove the nuts (2) retaining the I/P extension to HVAC duct.
  5. Remove the screws (3) from the I/P extension.
  6. Remove the I/P extension (1).

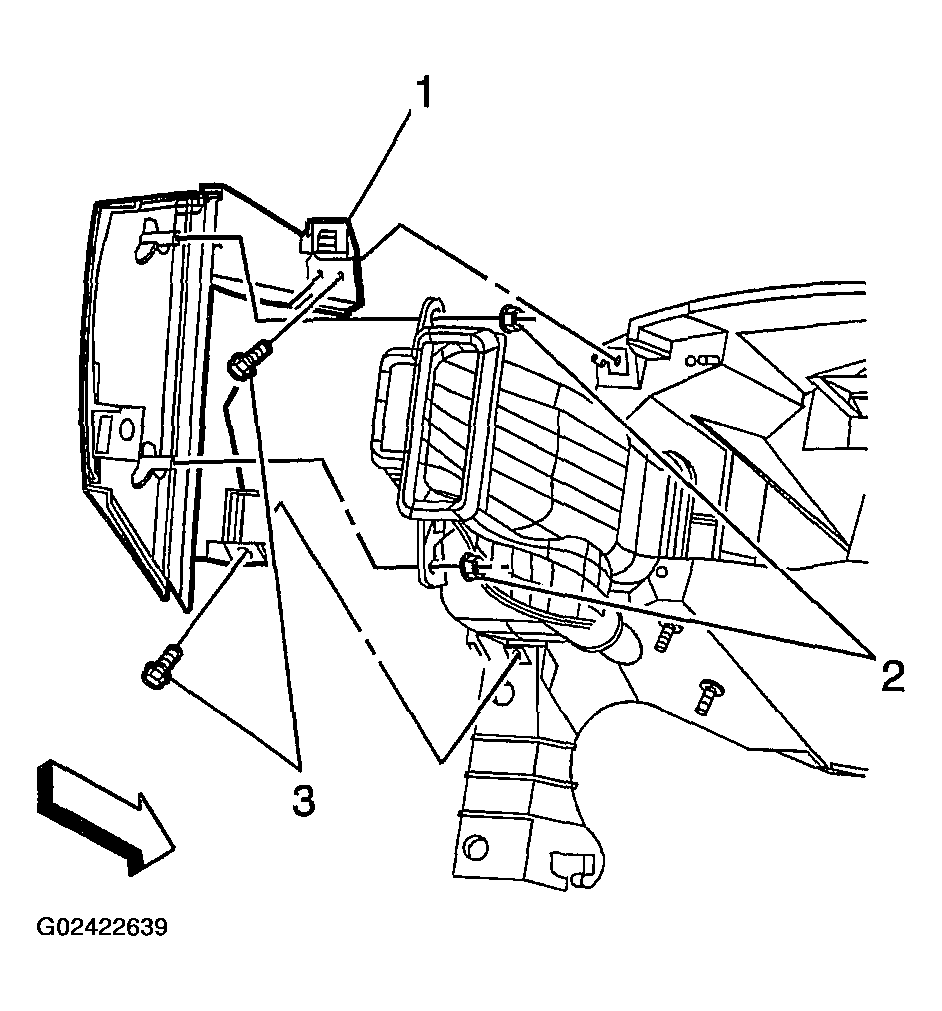

    Fig 1: Removing I/P Extension
    G02422639Courtesy of GENERAL MOTORS CORP.
