Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully open the instrument panel I/P extension door, if equipped.
  2. Remove the lower I/P extension bolts (4).
  3. Remove the upper I/P extension bolts (3).
  4. Remove the I/P lower extension from the vehicle (2).

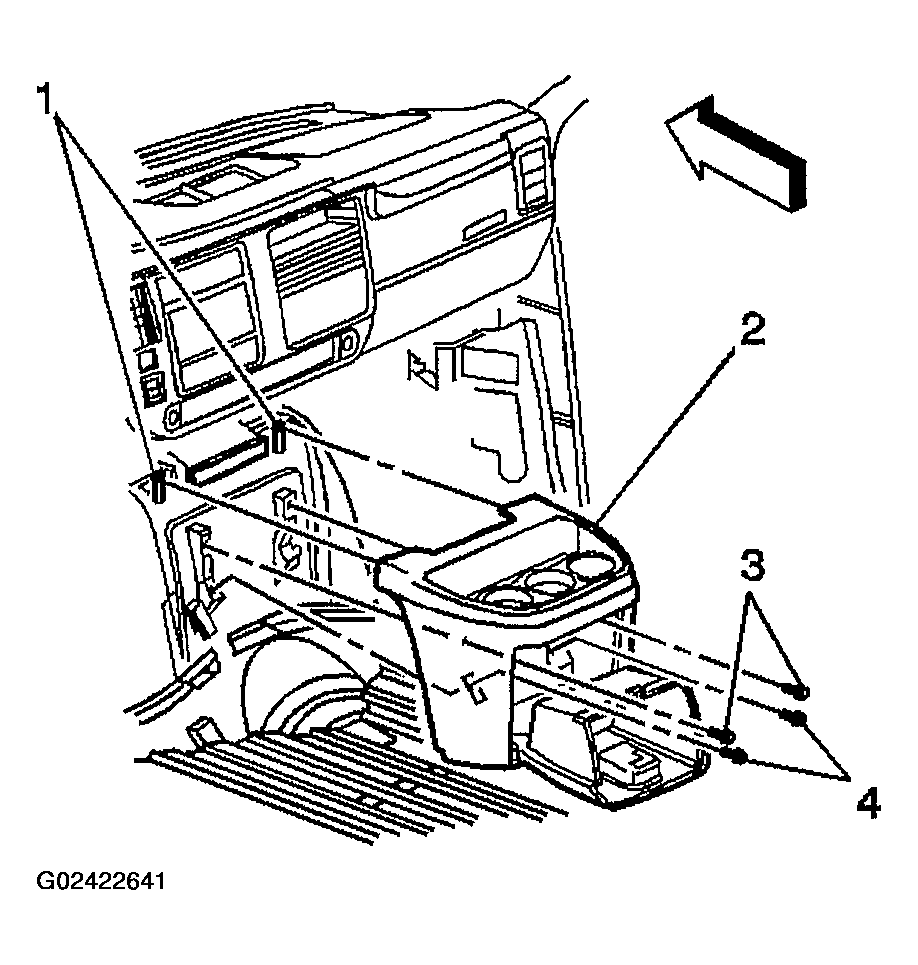

    Fig 1: Removing I/P Lower Extension
    G02422641Courtesy of GENERAL MOTORS CORP.
