Installation Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Important: Ensure the HVAC duct engages the I/P extension duct.

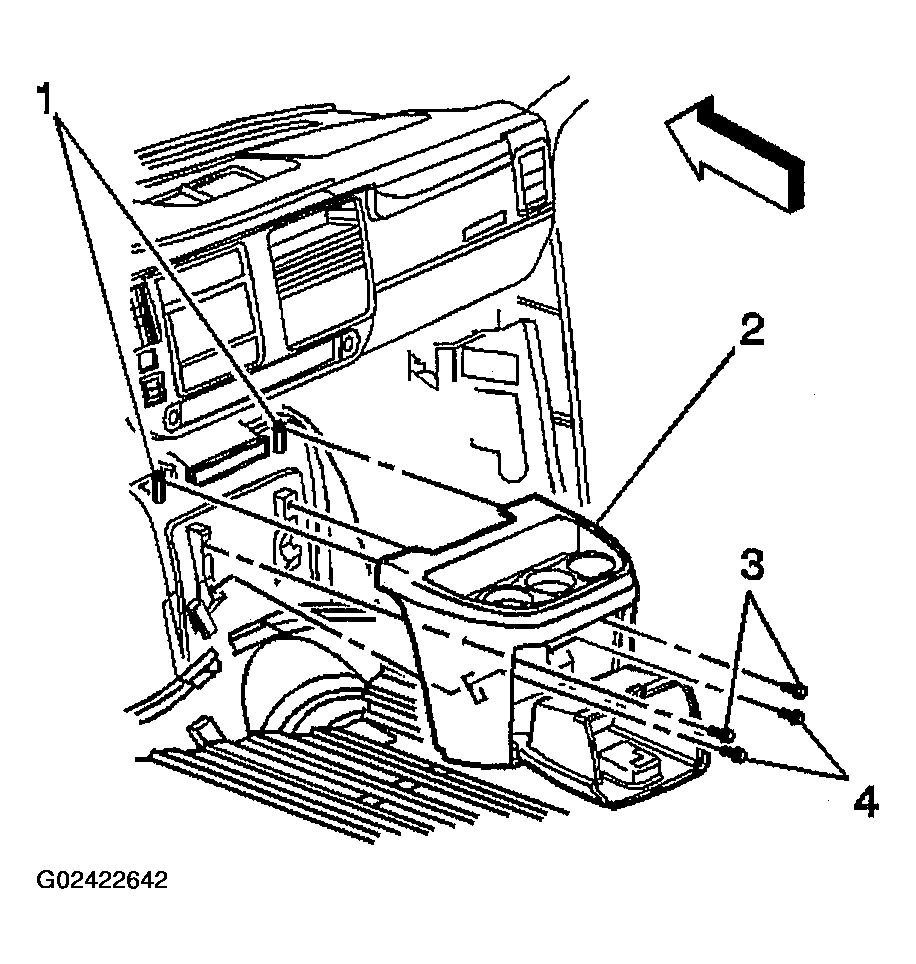

- Install the I/P lower extension (2) to the vehicle.
An audible click indicates I/P lower extension has engaged the retainer pins (1).
CAUTION: Refer to FASTENER NOTICE . - Install the upper (3) and lower (4) bolts to the I/P lower extension (2).
Tighten
Tighten the bolts (3, 4) to 10 N.m (89 lb in).
- Close the I/P extension door, if equipped.
