Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the I/P compartment (2) to the I/P.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the I/P compartment screws (1).

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Install the instrument panel (I/P) cluster trim plate bezel. Refer to Trim Plate Bezel Replacement - Instrument Panel (I/P) Cluster .

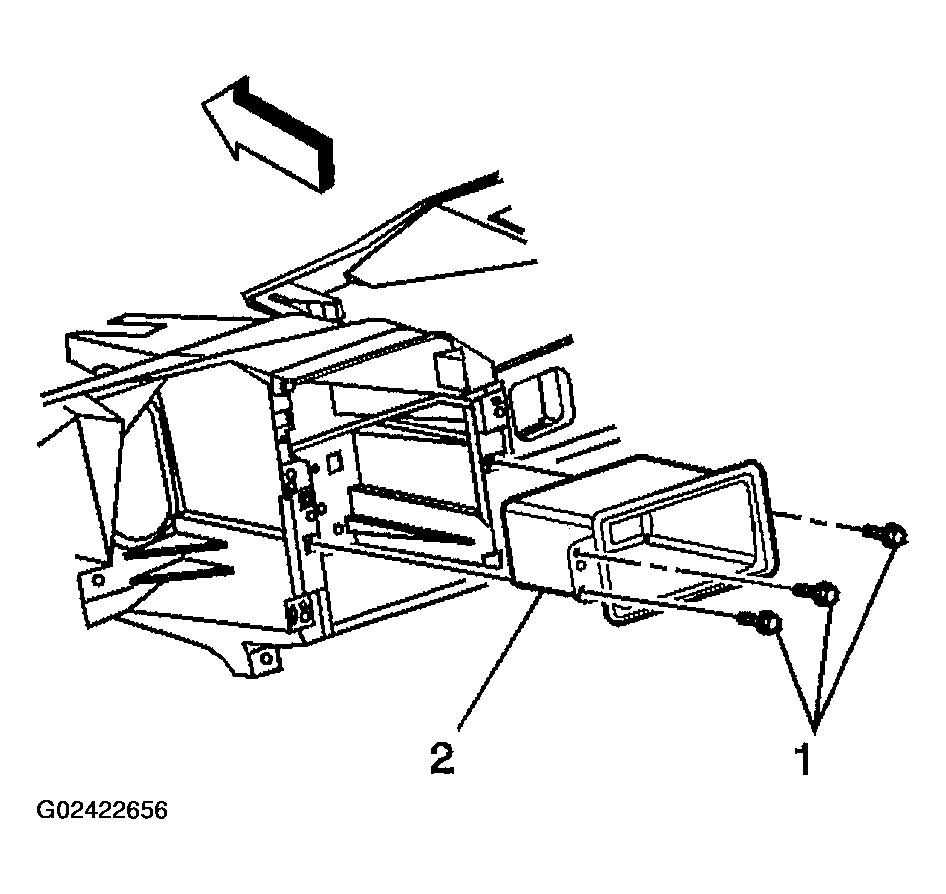

    Fig 1: Installing I/P Compartment
    G02422656Courtesy of GENERAL MOTORS CORP.
