Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cigar lighter fuse.
  2. Remove the cigar lighter element.
  3. Using the J 42059  , perform the following procedure to remove the cigar lighter socket:
    1. 3.1. Place one side of the T-portion of the J 42059 into the tab window in the lighter socket.
    2. 3.2. Rotate the tool into the opposite tab window in the lighter socket.
    3. 3.3. Once J 42059 is engaged in both tabs, pull the lighter socket straight out.
  4. Remove the tool from the lighter socket.

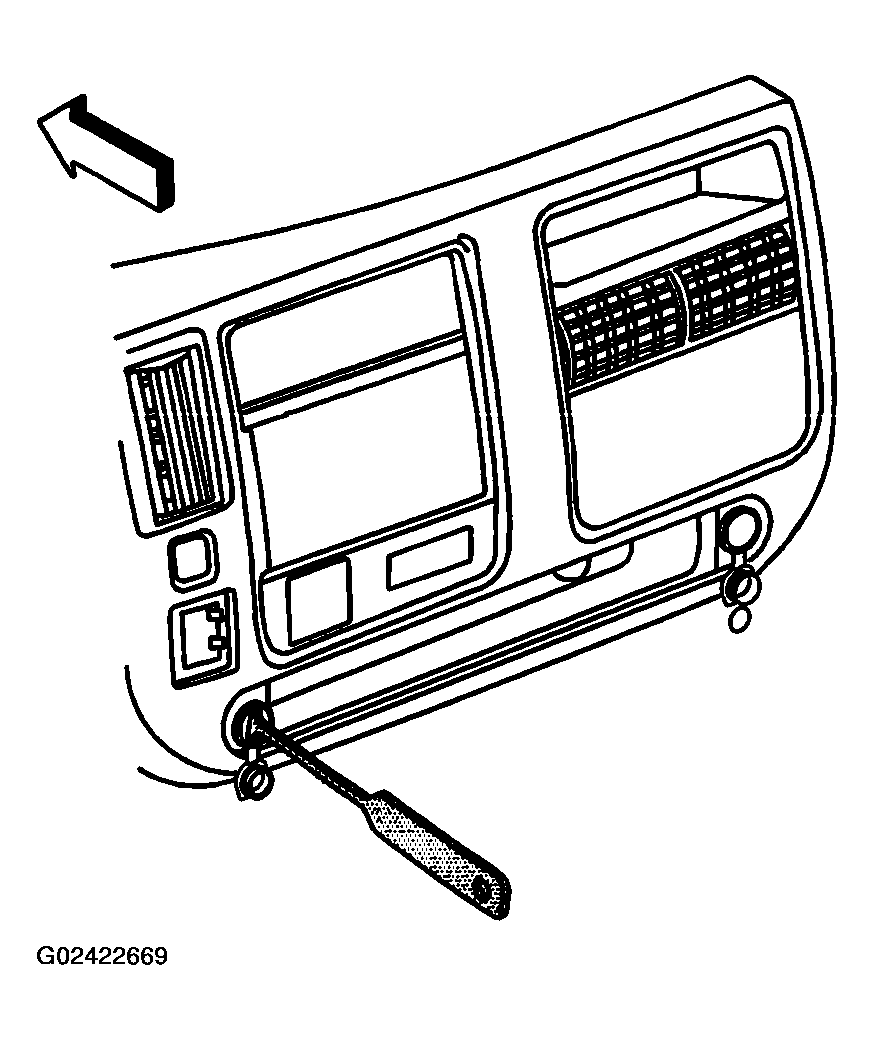

    Fig 1: Removing Cigar Lighter Socket Using J 42059
    G02422669Courtesy of GENERAL MOTORS CORP.
  5. Pull the cigar lighter socket (3) and cigar lighter retainer (2) out of the trim plate.
  6. Disconnect the electrical connector (1) from the N cigar lighter (3).
  7. Remove the cigar lighter retainer (2) from the cigar lighter socket (3).

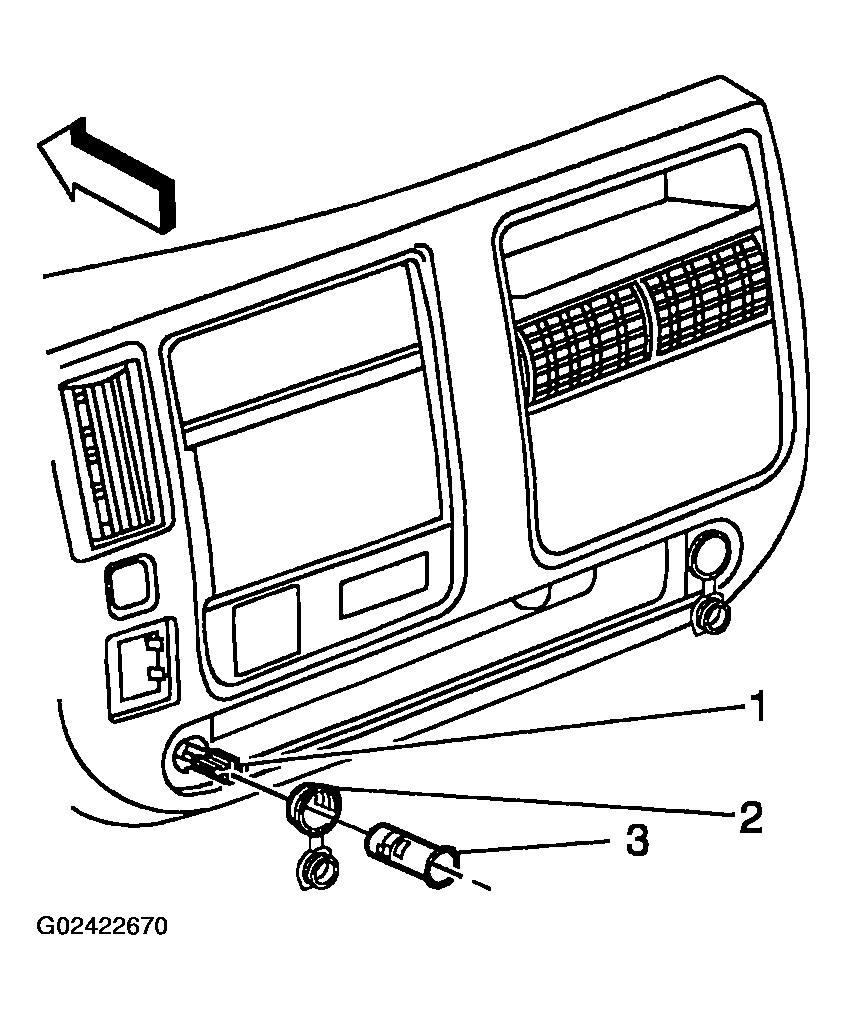

    Fig 2: Removing Cigar Lighter Socket & Retainer
    G02422670Courtesy of GENERAL MOTORS CORP.
