Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cigar lighter retainer (2) to the trim plate by pressing the retainer (2) into place until fully seated.
  2. Connect the electrical connector (1) to the cigar lighter socket (3).
  3. Align the cigar lighter socket (3) key way to the key slot in the retainer ring (2).
  4. Press the cigar lighter socket (3) into place until the cigar lighter socket (3) is fully seated.
  5. Install the cigar lighter fuse.

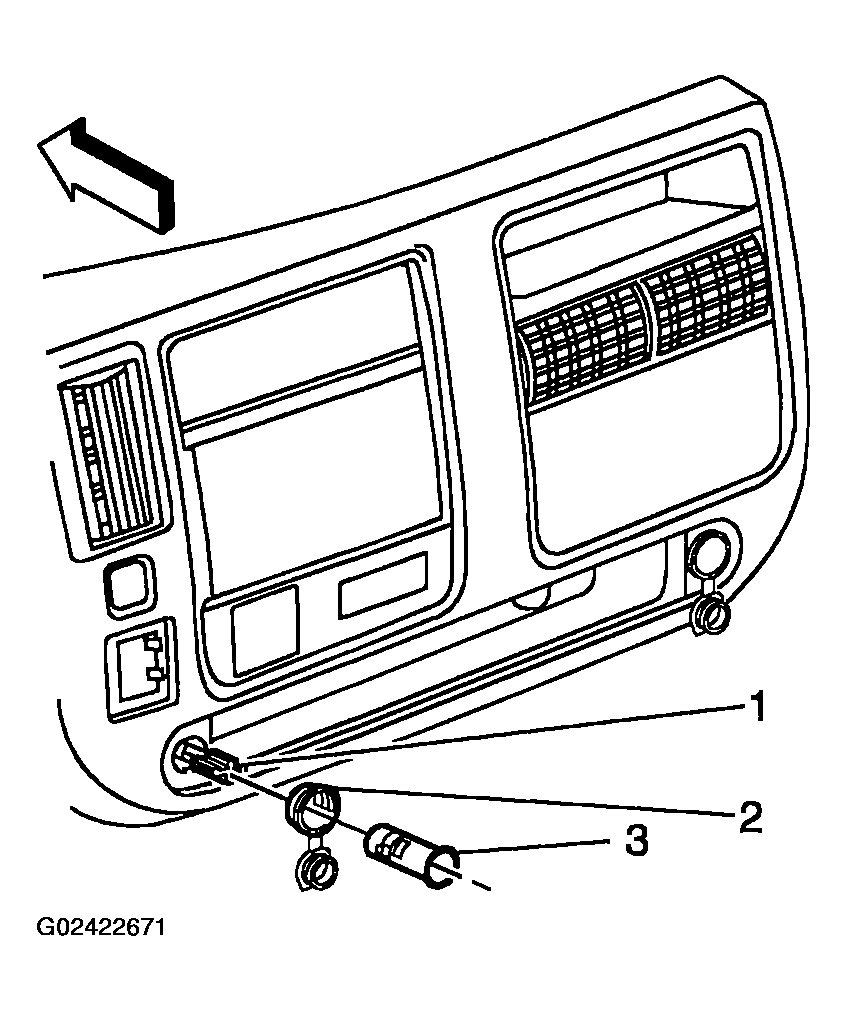

    Fig 1: Installing Cigar Socket & Retainer
    G02422671Courtesy of GENERAL MOTORS CORP.
