Test Description

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 3. This step tests for a high resistance in the signal circuit and the low reference circuit of the fuel level sensor.
  2. 13. DTCs will set in the PCM when you perform this diagnostic table.

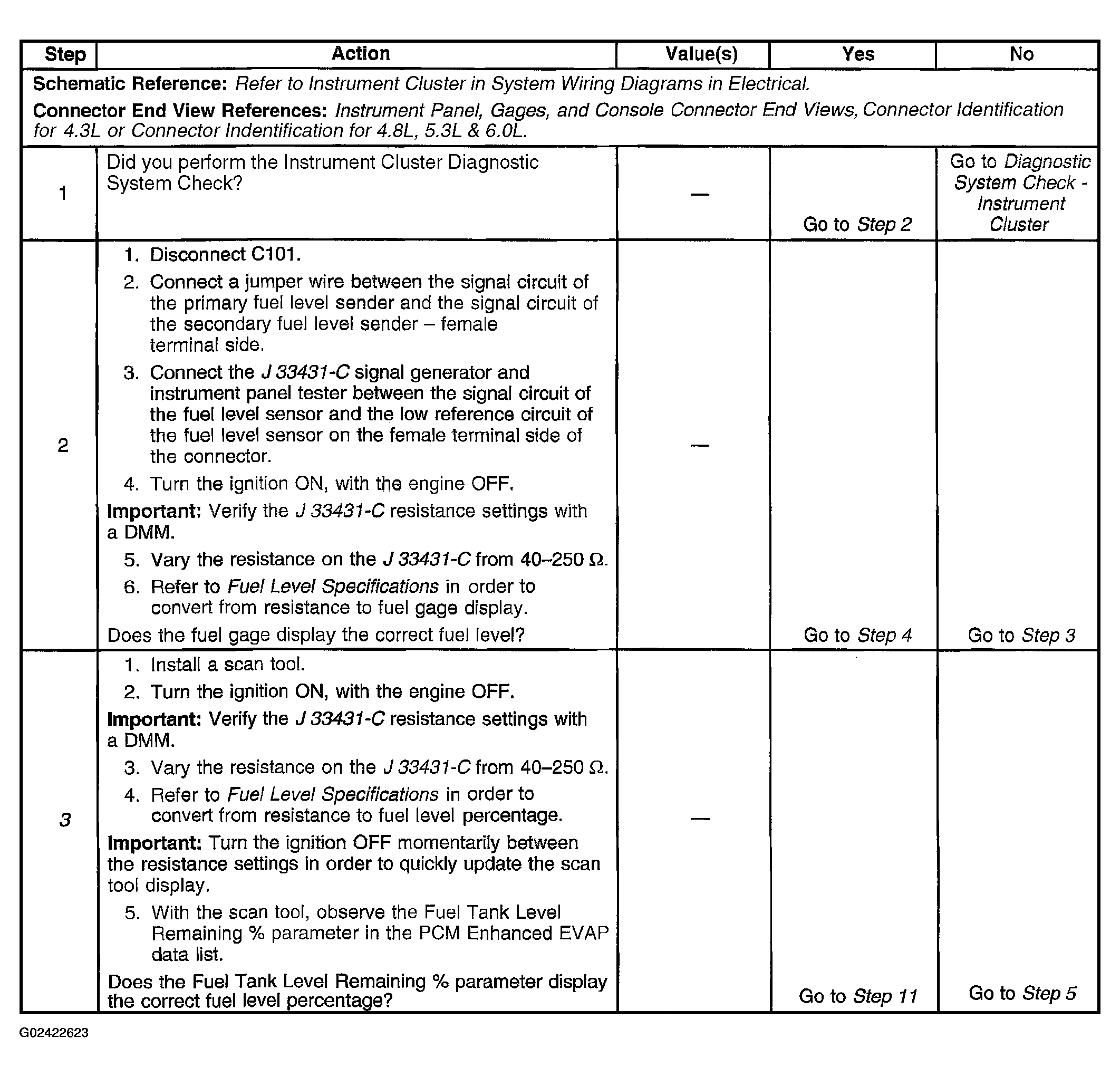

Fig 1: Fuel Gage Inaccurate Or Inoperative (Dual Tank) - 1 Of 3
G02422623Courtesy of GENERAL MOTORS CORP.

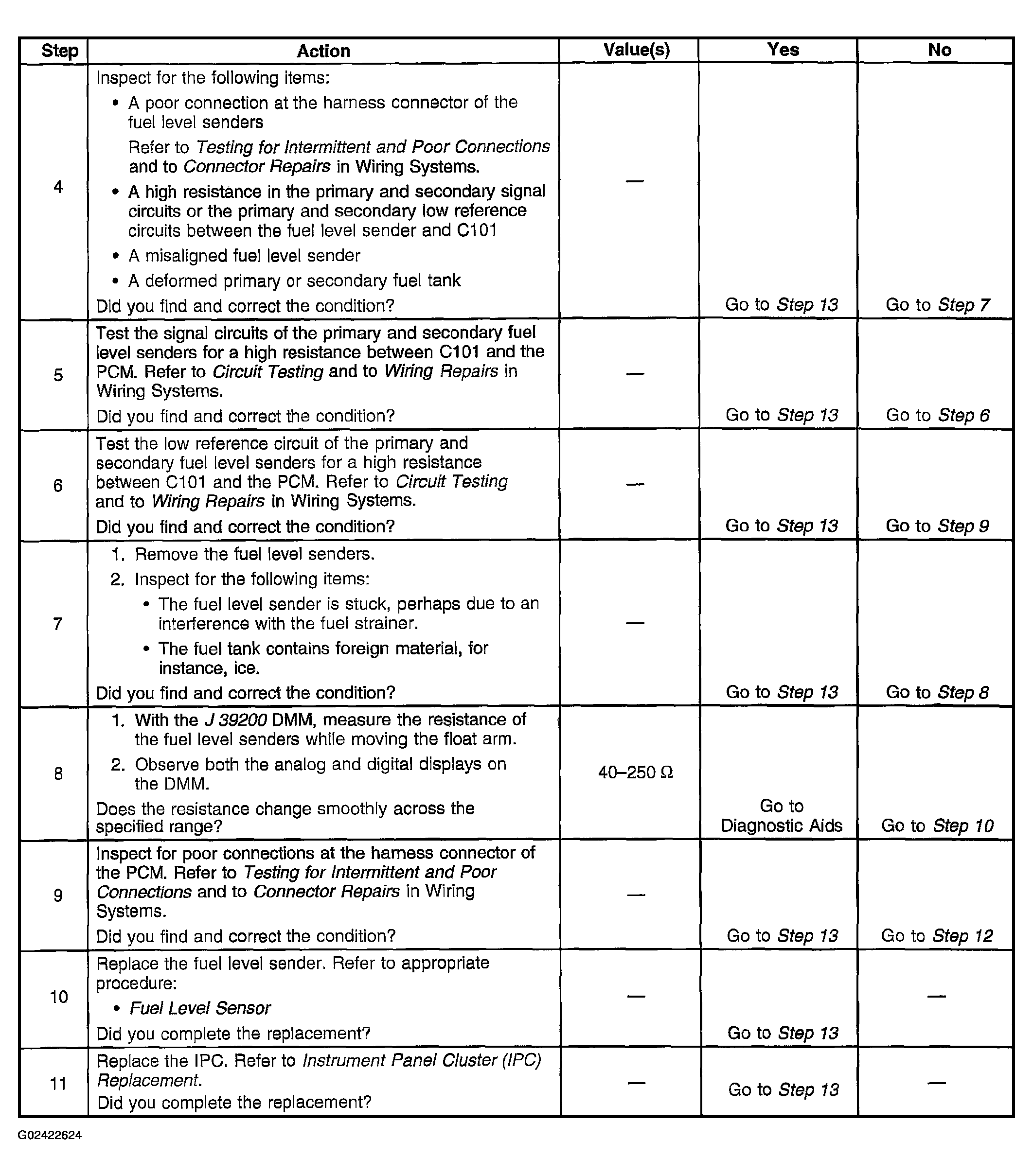

Fig 2: Fuel Gage Inaccurate Or Inoperative (Dual Tank) - 2 Of 3
G02422624Courtesy of GENERAL MOTORS CORP.

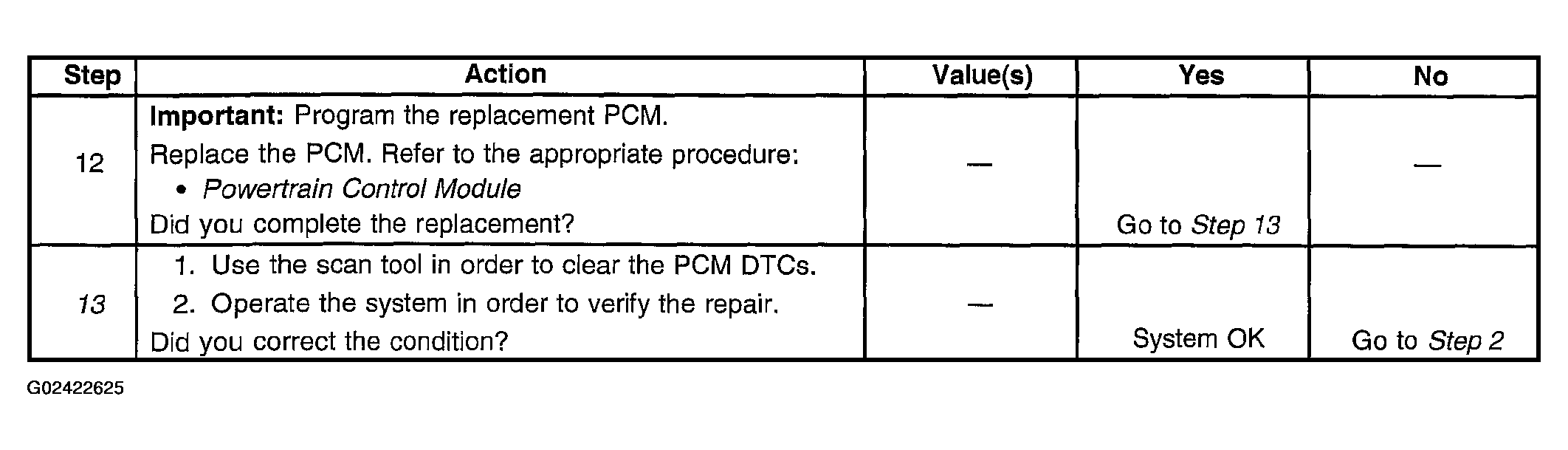

Fig 3: Fuel Gage Inaccurate Or Inoperative (Dual Tank) - 3 Of 3
G02422625Courtesy of GENERAL MOTORS CORP.
