Test Description

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2.  Lack of communication may be due to a partial malfunction of the class 2 serial data circuit or due to a total malfunction of the class 2 serial data circuit. The specified procedure will determine the particular condition.
  2. 3.  The symptom list in Symptoms will determine the correct diagnostic procedure to use.
  3. 4.  The presence of DTCs which begin with "U" indicate that loss of class 2 communications has occurred.

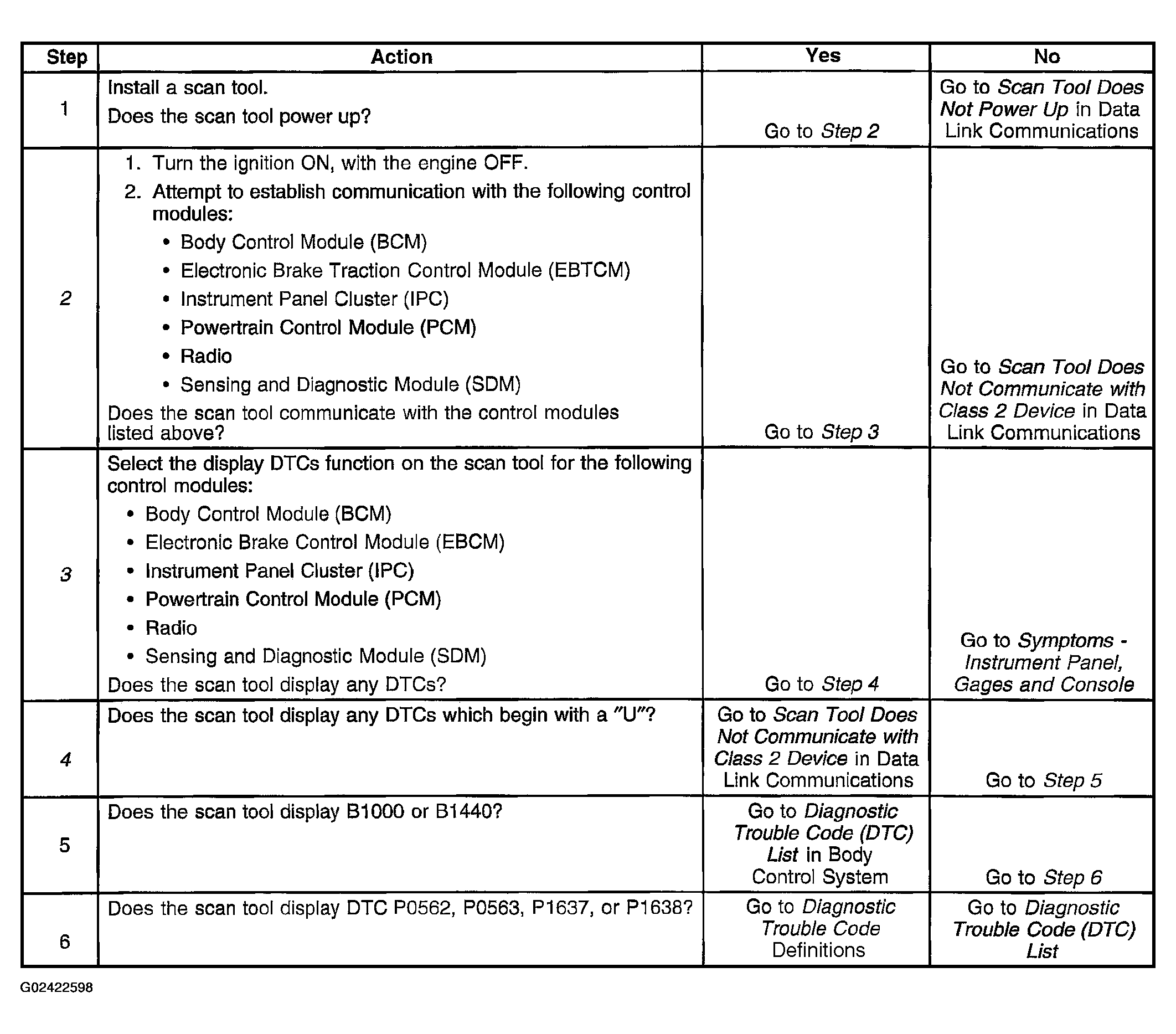

Fig 1: Diagnostic System Check - Instrument Cluster
G02422598Courtesy of GENERAL MOTORS CORP.
