Test Description

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 3.  Tests for the proper operation of the circuit in the high voltage range.

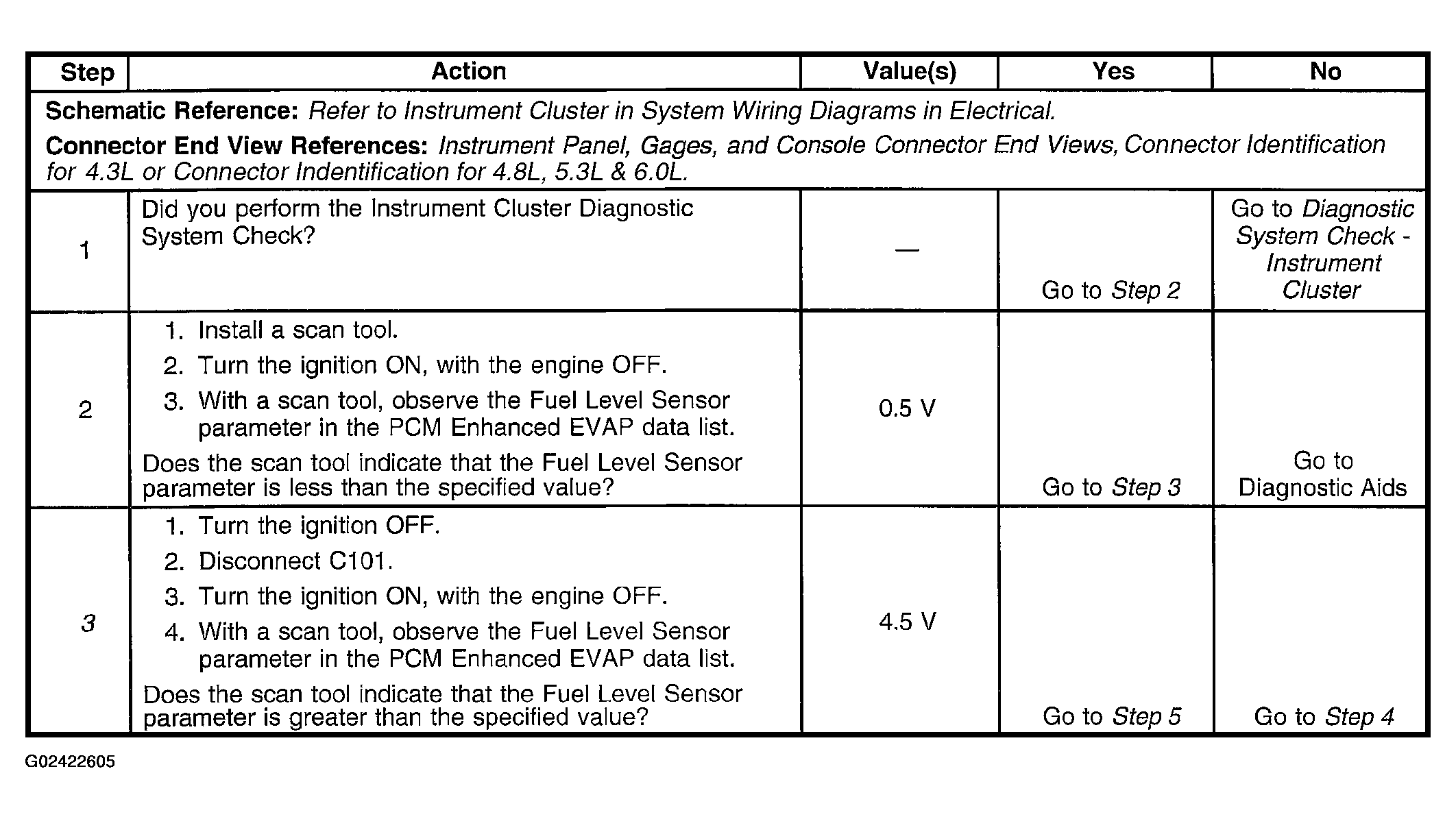

Fig 1: DTC P0462 (1 Of 2)
G02422605Courtesy of GENERAL MOTORS CORP.

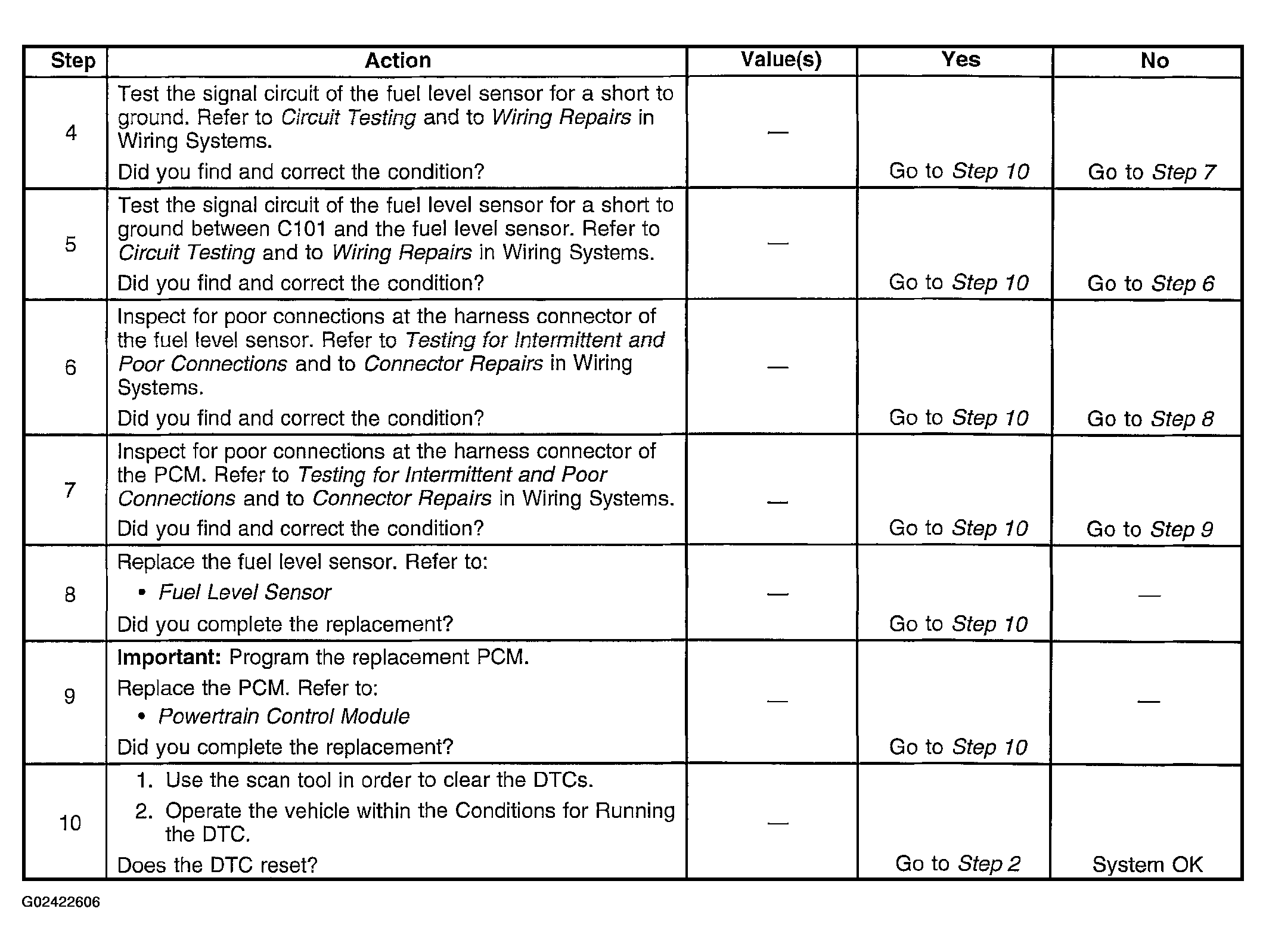

Fig 2: DTC P0462 (2 Of 2)
G02422606Courtesy of GENERAL MOTORS CORP.
