Instrument Panel, Gages, and Console Connector End Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

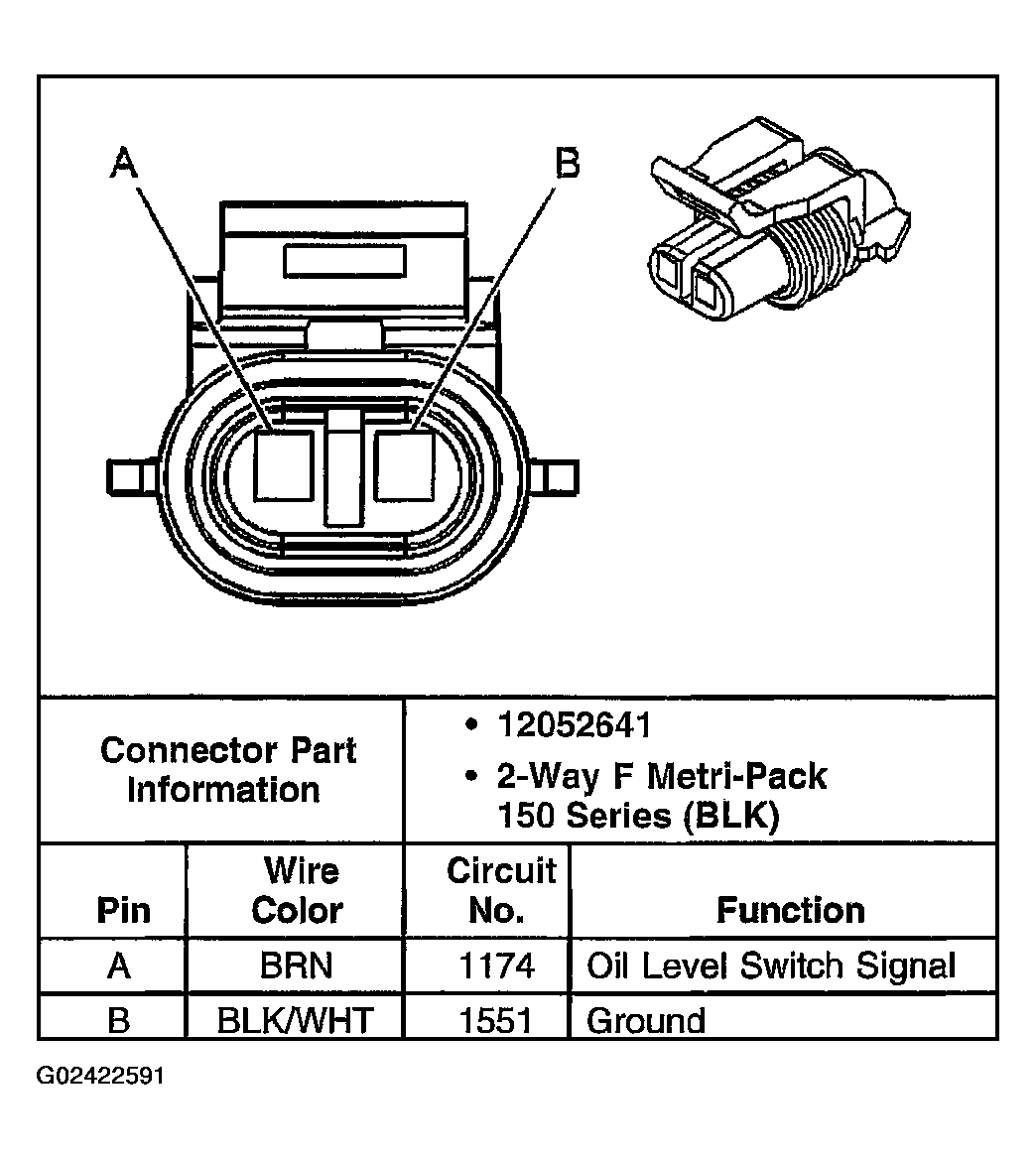

Fig 1: Engine Oil Level Switch Connector End View

G02422591

Courtesy of GENERAL MOTORS CORP.

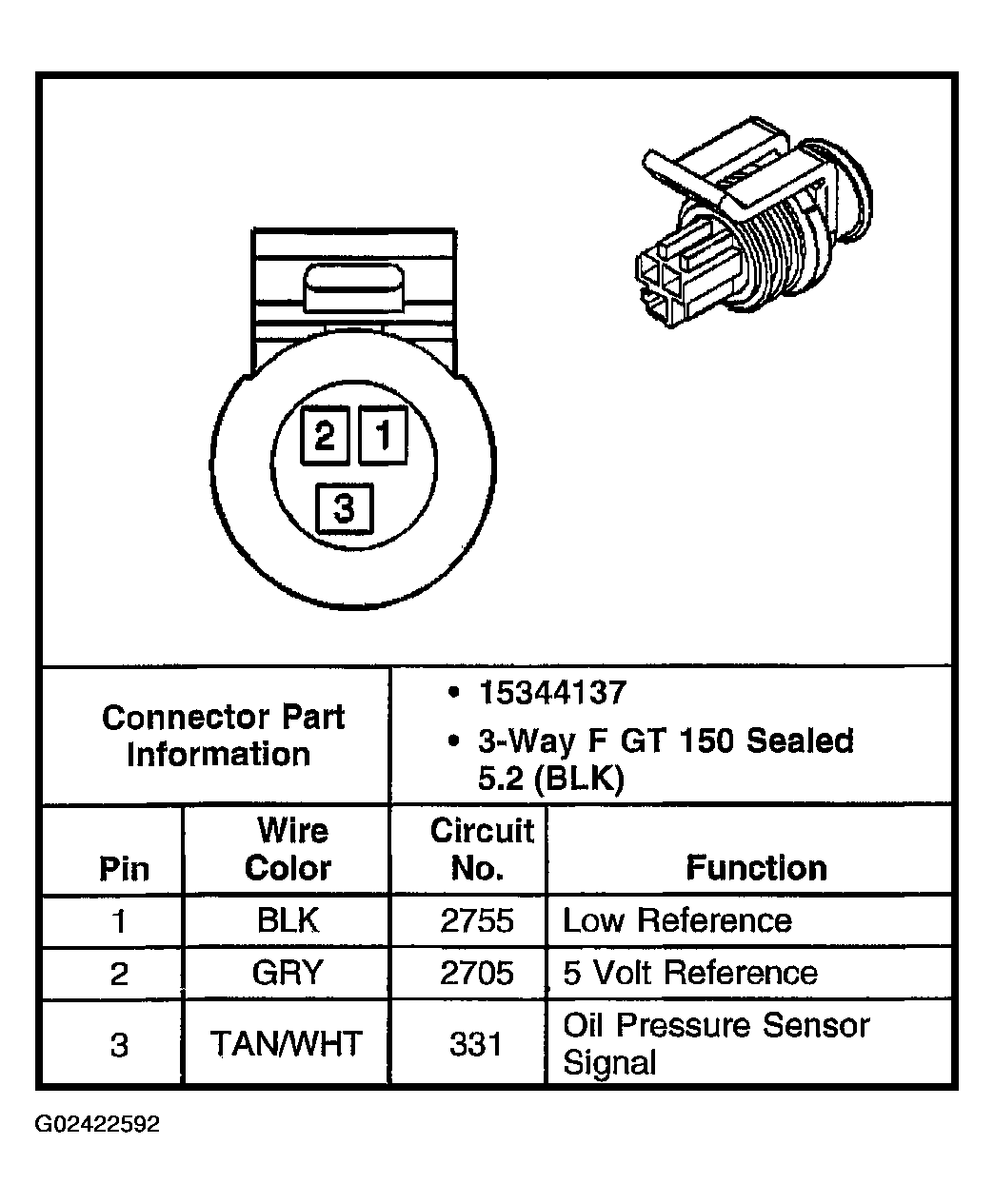

Fig 2: Engine Oil Pressure (EOP) Sensor Connector End View

G02422592

Courtesy of GENERAL MOTORS CORP.

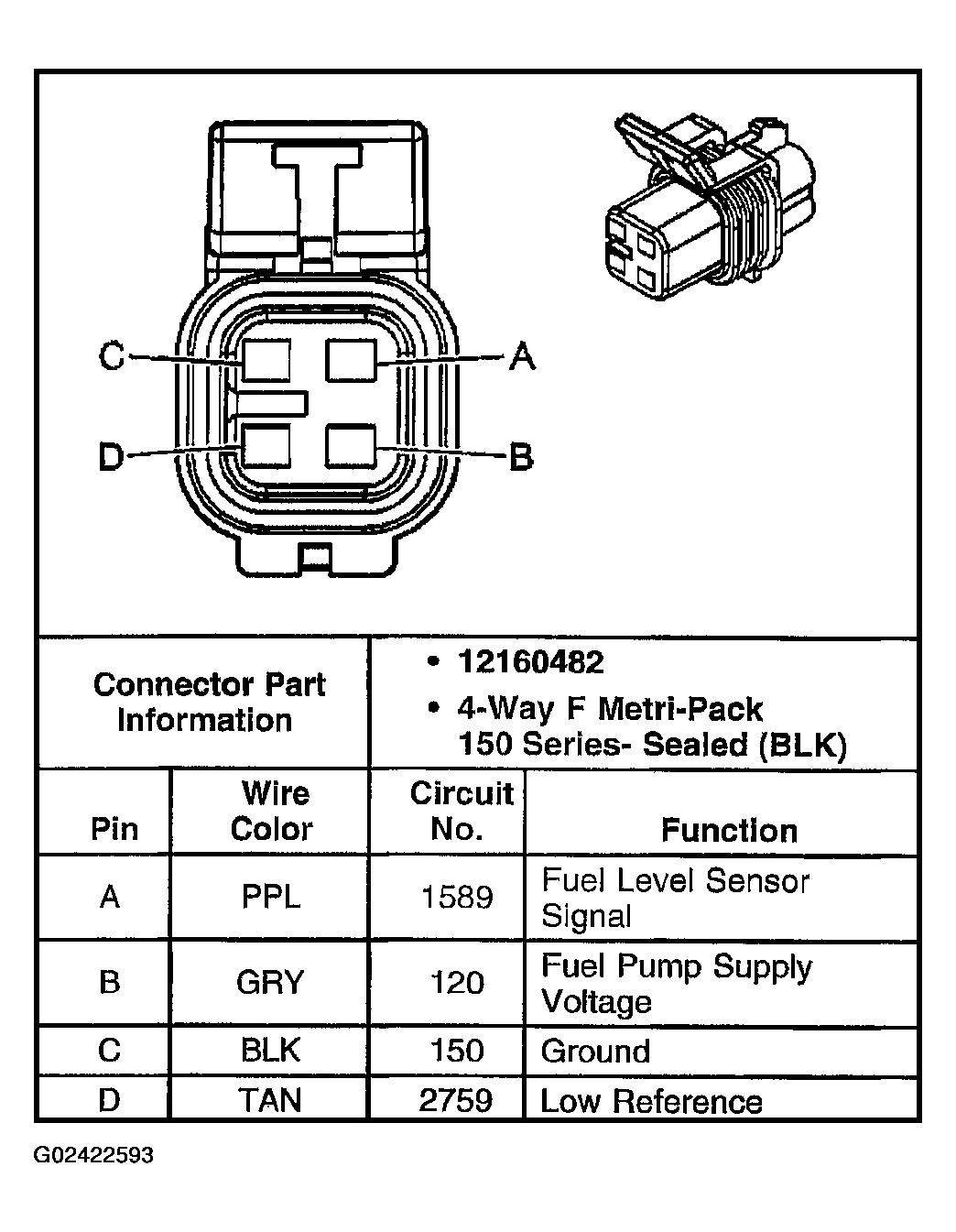

Fig 3: Fuel Pump & Sender Assembly (NE7, 60 Gal. Fuel Tank) Connector End View

G02422593

Courtesy of GENERAL MOTORS CORP.

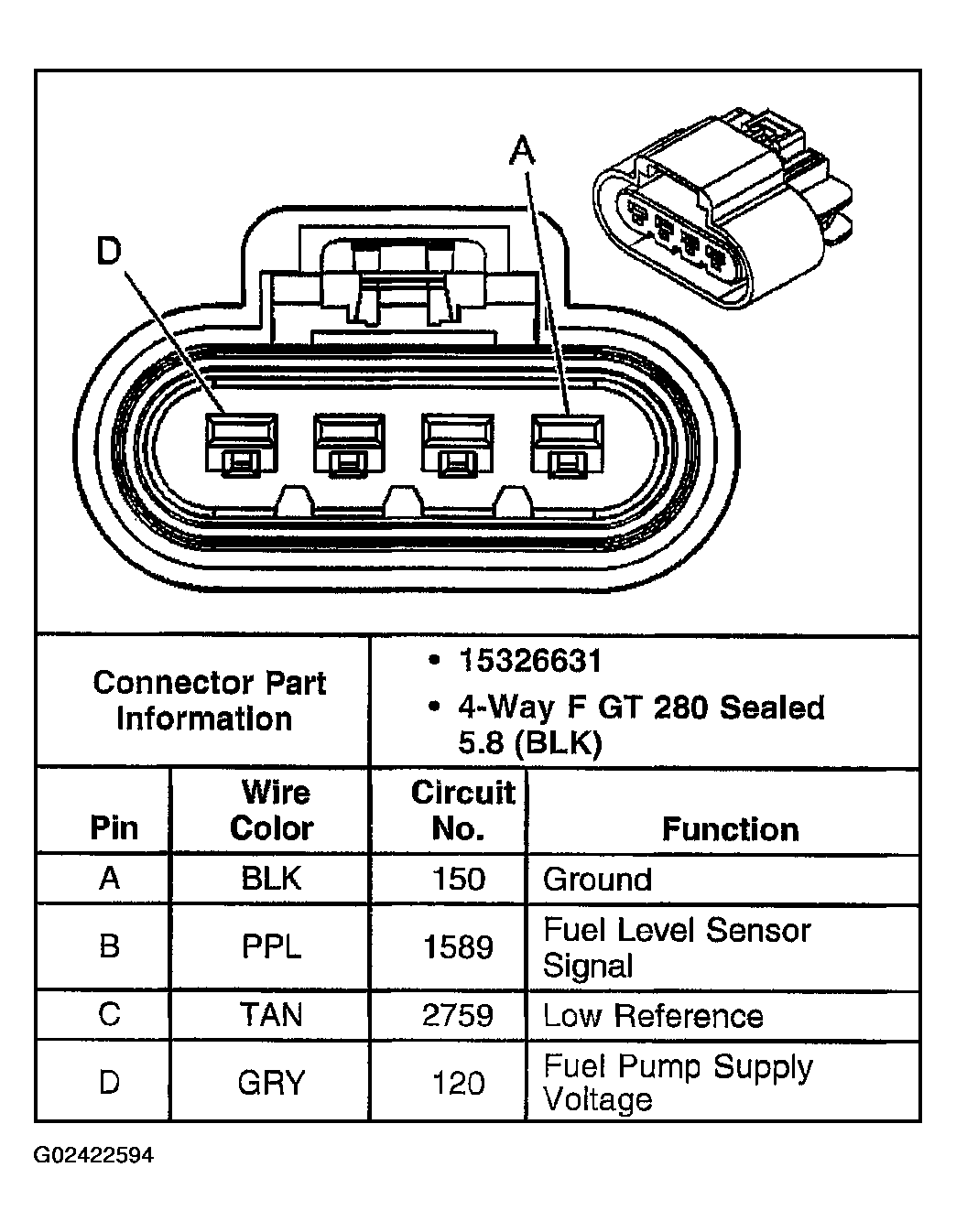

Fig 4: Fuel Pump & Sender Assembly (w/o NE7, 60 Gal. Fuel Tank) Connector End View

G02422594

Courtesy of GENERAL MOTORS CORP.

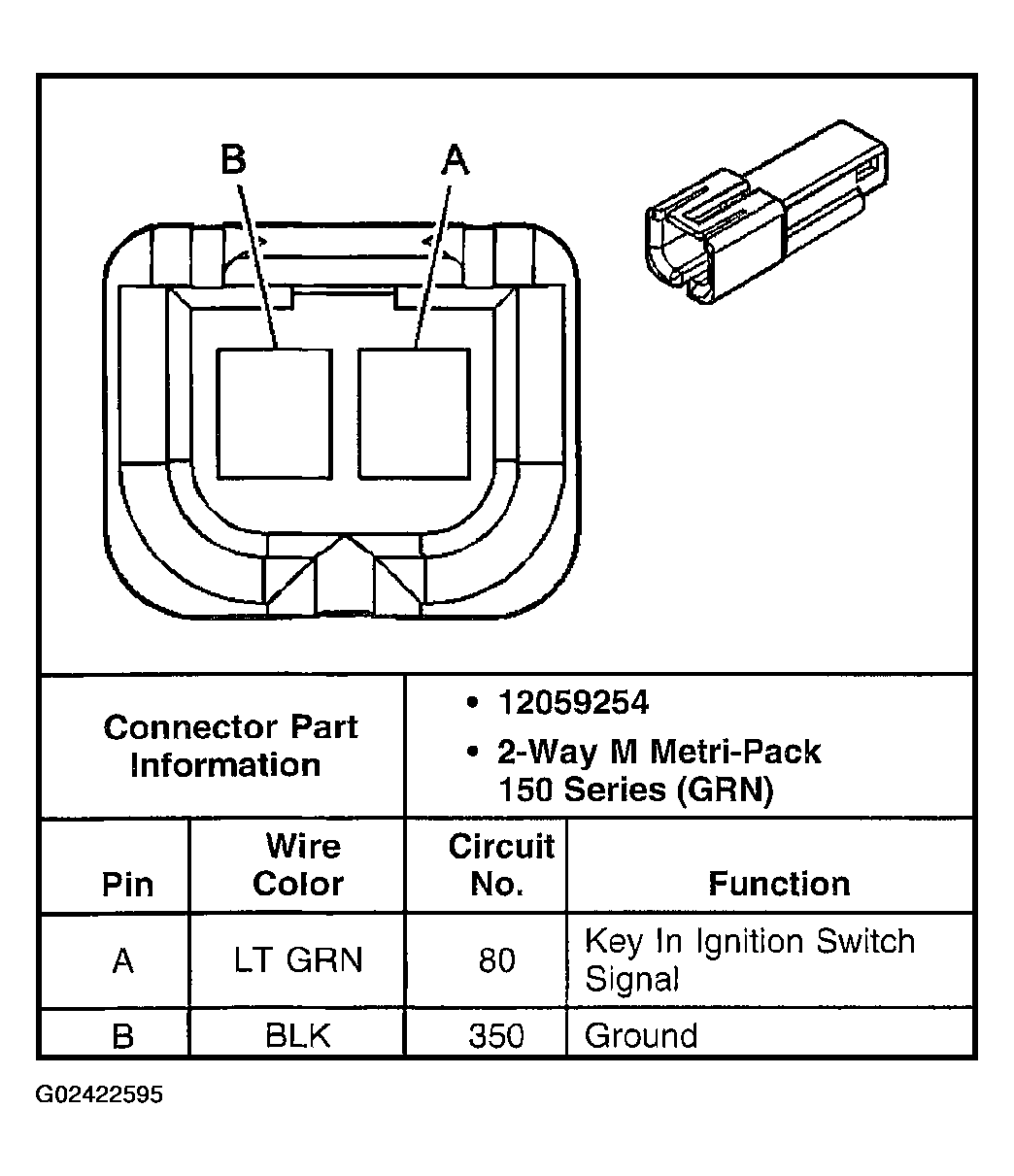

Fig 5: Ignition Key Alarm Switch Connector End View

G02422595

Courtesy of GENERAL MOTORS CORP.

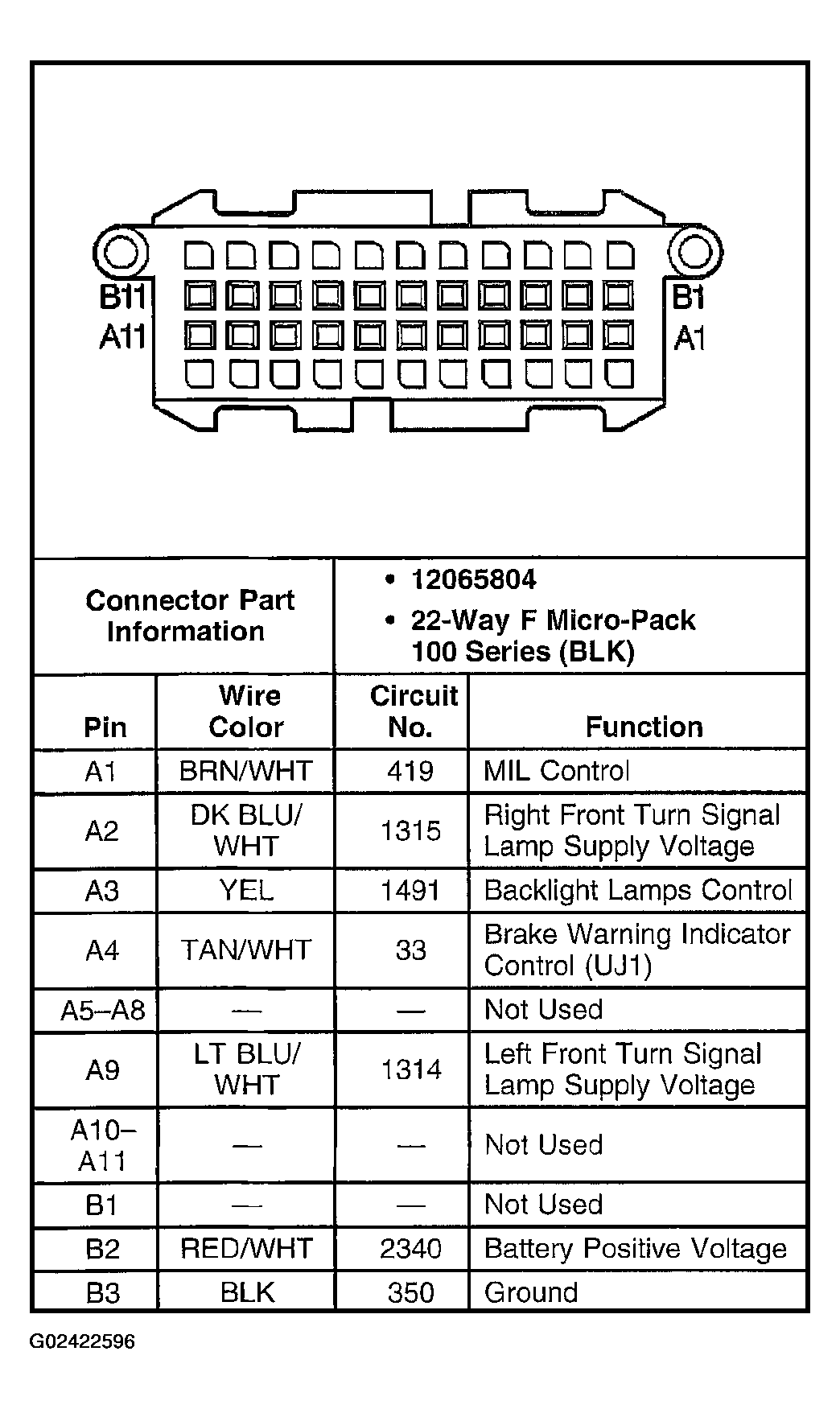

Fig 6: Instrument Panel Cluster (IPC) Connector End View (1 Of 2)

G02422596

Courtesy of GENERAL MOTORS CORP.

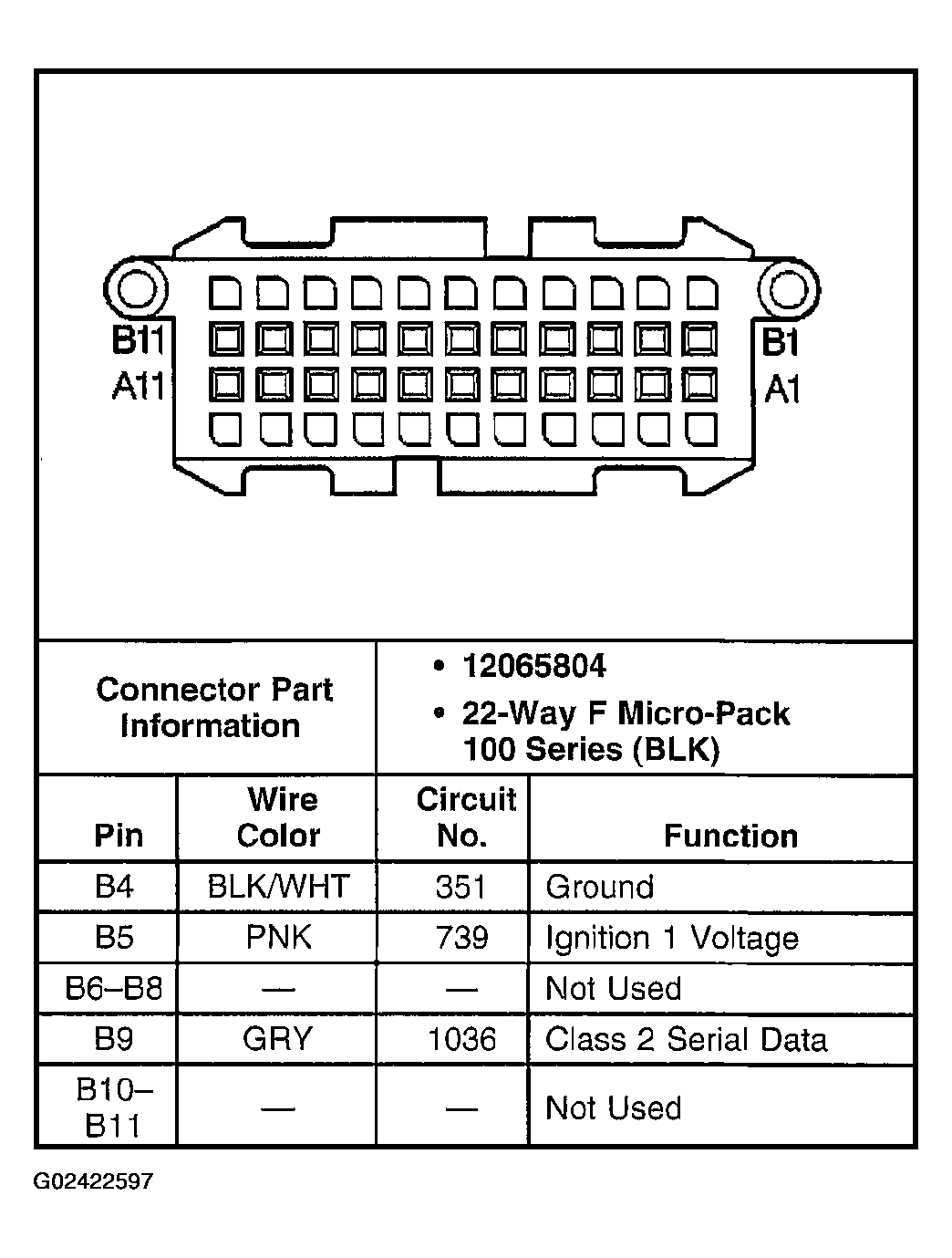

Fig 7: Instrument Panel Cluster (IPC) Connector End View (2 Of 2)

G02422597

Courtesy of GENERAL MOTORS CORP.
