Diagnostic Aids

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

DTC B1001 is an indication that the restraints ID or the VIN stored in both the BCM and SDM do not match. If any of the modules mentioned above were replaced, the replaced module need to be reprogrammed for proper operation.

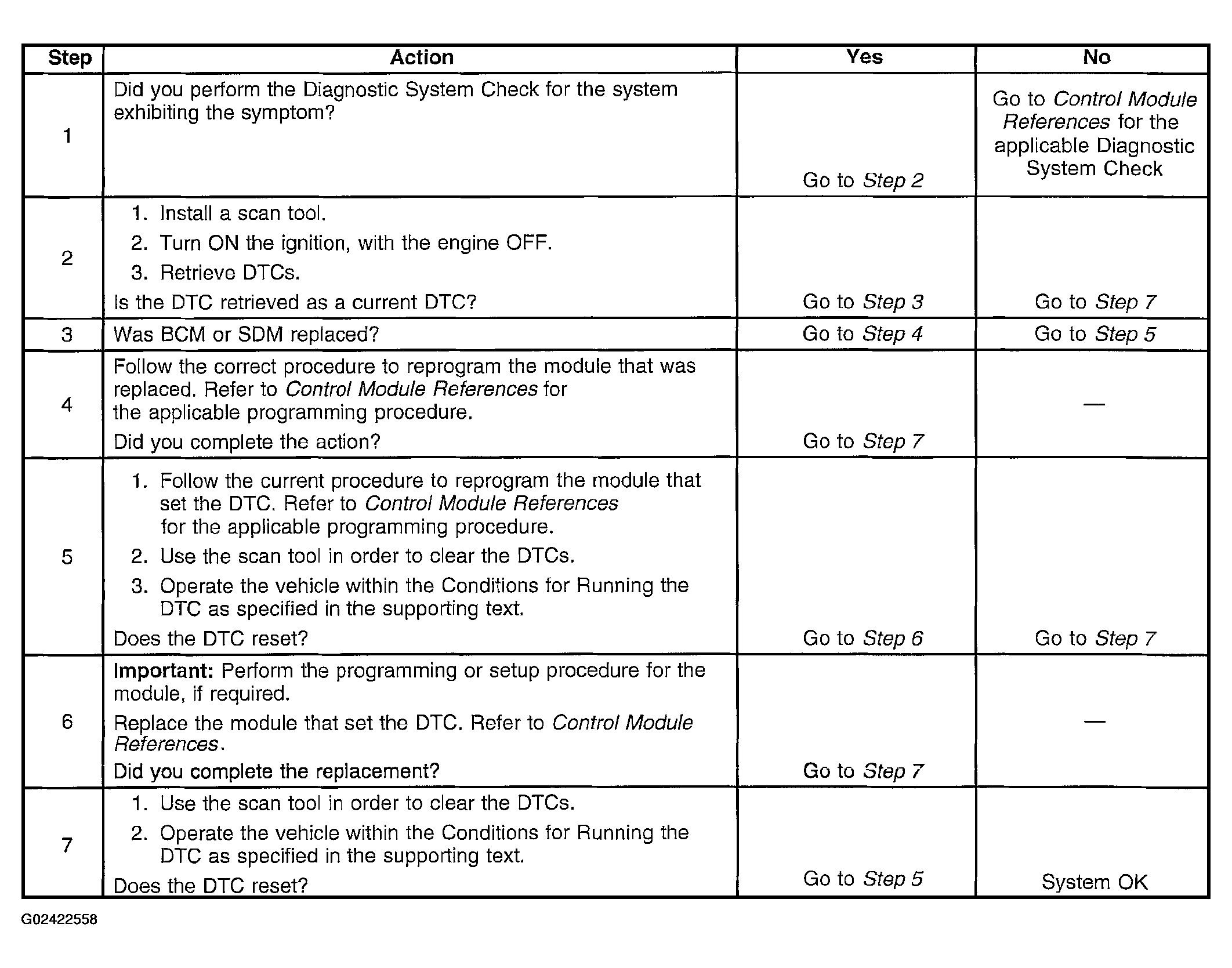

Fig 1: DTC B1001
G02422558Courtesy of GENERAL MOTORS CORP.
