Diagnostic Aids

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

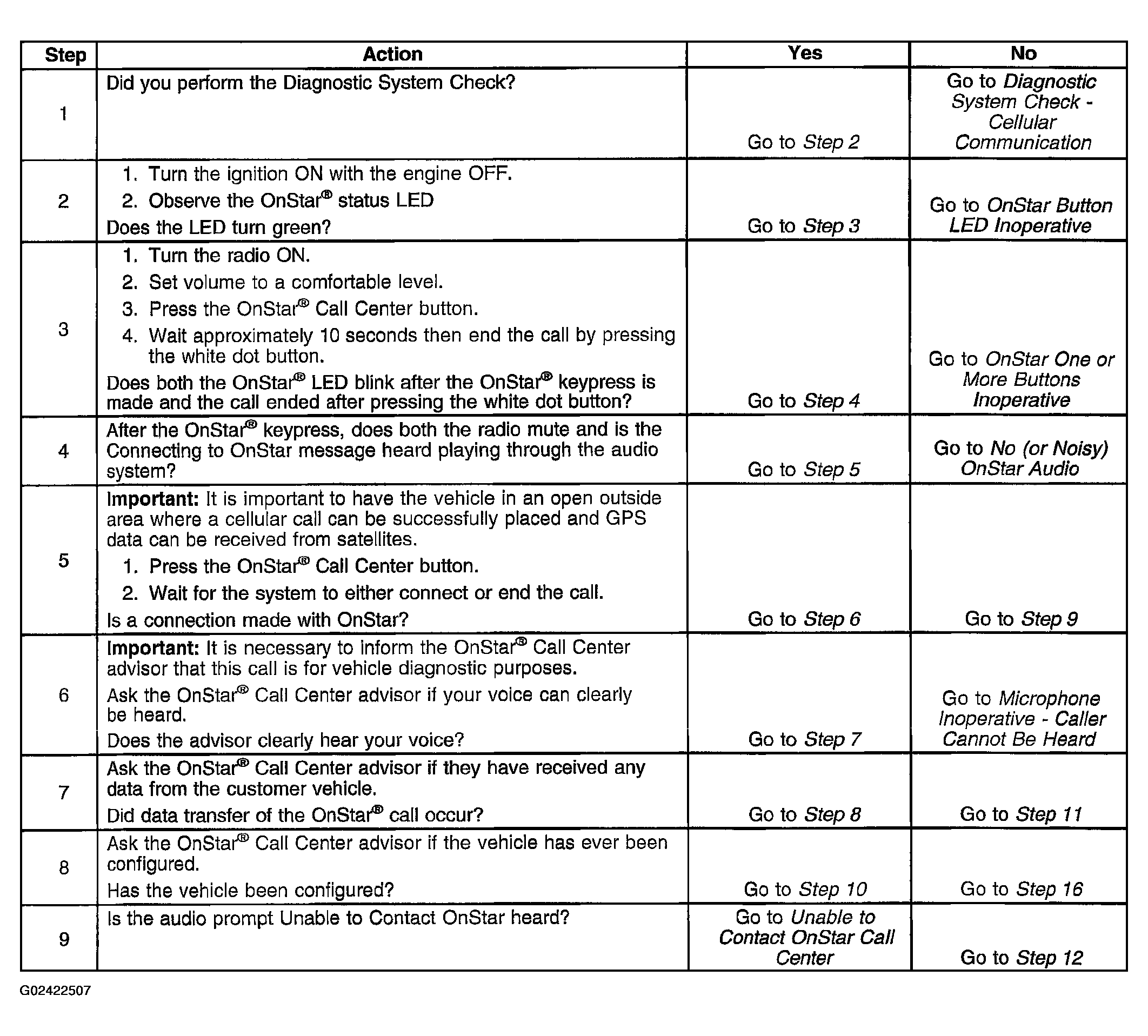

Fig 1: OnStar Symptom Diagnosis (1 Of 2)
G02422507Courtesy of GENERAL MOTORS CORP.

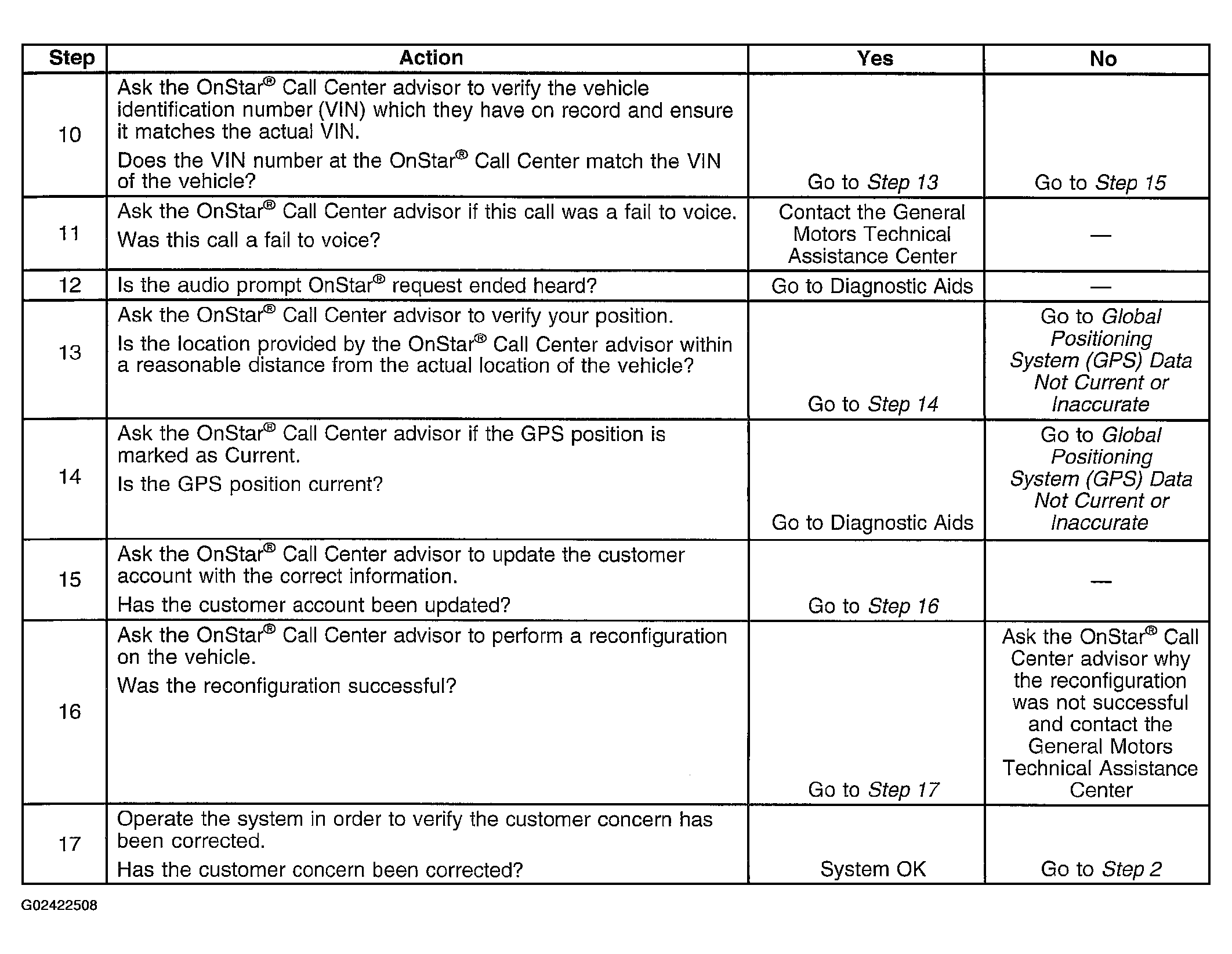

Fig 2: OnStar Symptom Diagnosis (2 Of 2)
G02422508Courtesy of GENERAL MOTORS CORP.
