Test Description

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 7.  If the Cellular Telephone Voice Low Reference circuit is shorted to voltage the Vehicle Communication Interface Module has been damaged and requires replacement.

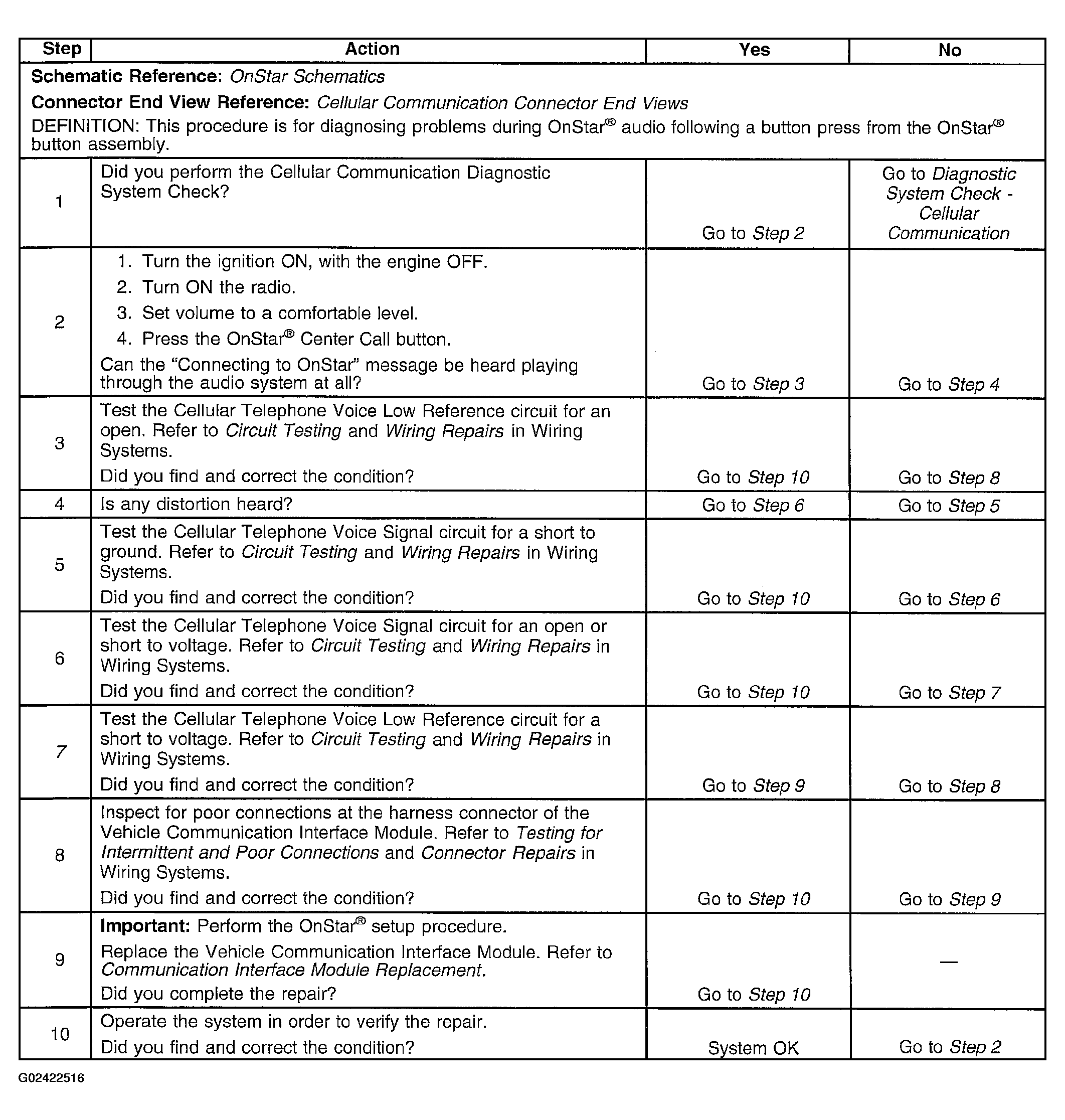

Fig 1: No (Or Noisy) OnStar Audio
G02422516Courtesy of GENERAL MOTORS CORP.
