Diagnostic Aids
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

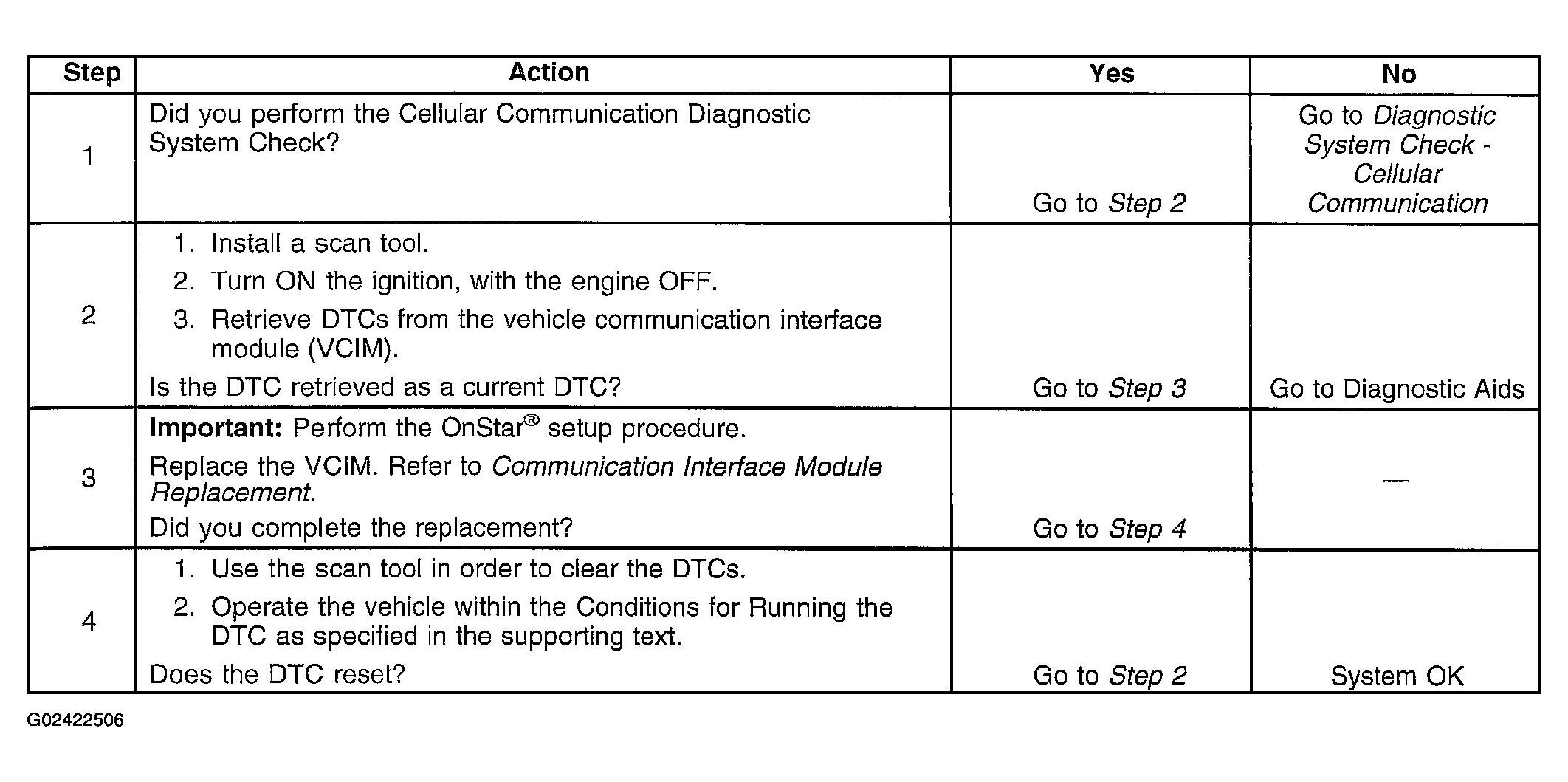

- The diagnostic procedure used for DTC U1500 in OnStar® systems with single module generations of OnStar® differ greatly from previous generations with two modules. While these older generations denoted a failure of the three wire bus between the modules by setting a U1500, single module OnStar® systems use this DTC to denote an internal module failure. The determination of whether a one or two module generation of OnStar® is used should be confirmed. Refer to OnStar Description and Operation .
- This DTC may be stored as a history DTC without affecting the operation of the module. If stored only as a history DTC and not retrieved as a current DTC, do not replace the VCIM.
- If this DTC is retrieved as both a current and history DTC, replace the VCIM.
