Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear header trim panel, if equipped.

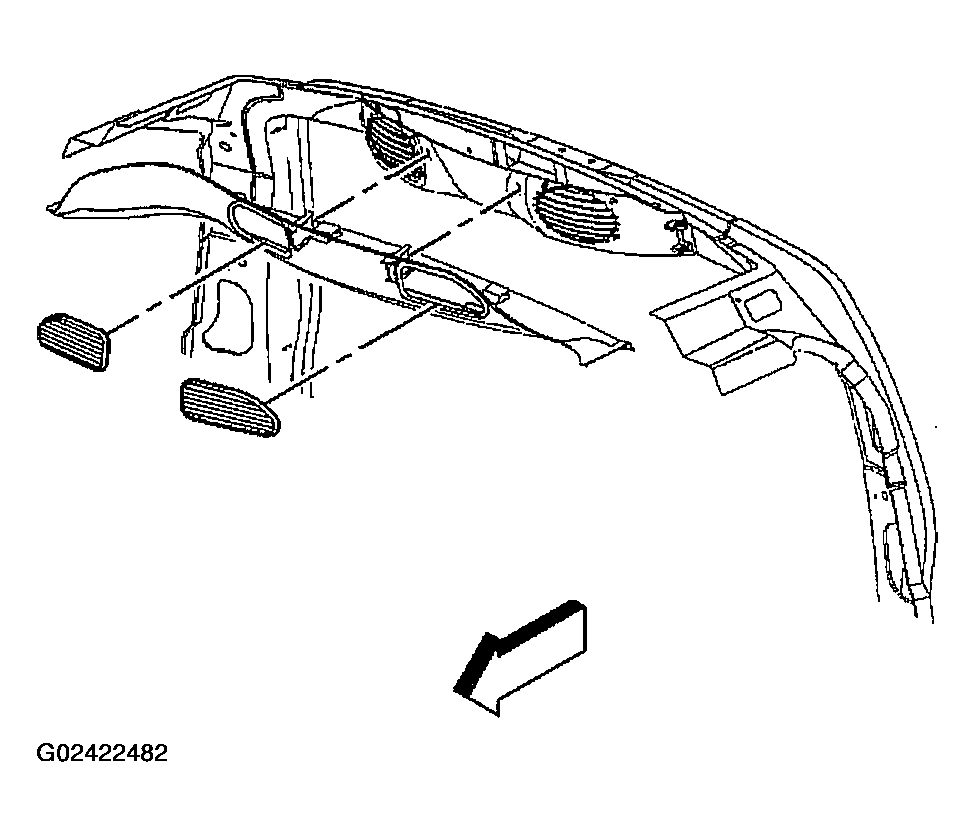

    Fig 1: Removing Rear Header Trim Panel
    G02422482Courtesy of GENERAL MOTORS CORP.
  2. Remove the nuts retaining the rear header speaker housing to the vehicle.
  3. Remove the rear header speaker housing from the vehicle.
  4. Disconnect the electrical connector from the speaker.
  5. Remove the screws retaining the rear header speaker to the rear header speaker housing.
  6. Remove the rear header speaker from the rear header speaker housing.

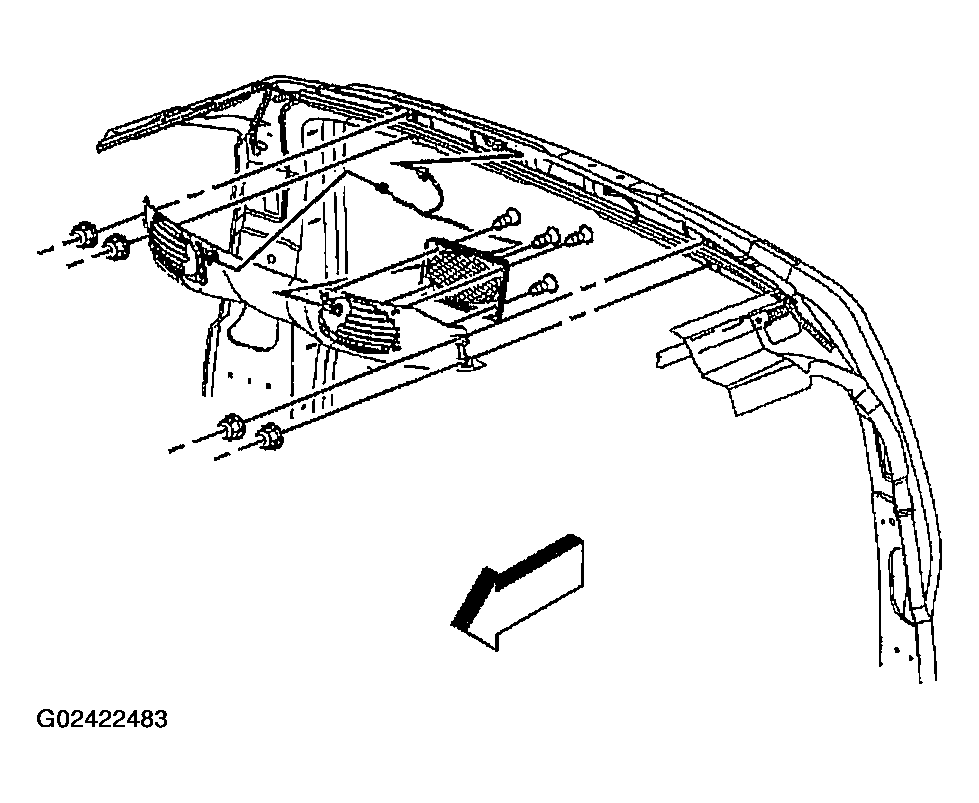

    Fig 2: Removing Rear Header Speaker
    G02422483Courtesy of GENERAL MOTORS CORP.
