Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. Refer to TRIM PANEL REPLACEMENT - REAR DOOR - LEFT or TRIM PANEL REPLACEMENT - REAR DOOR - RIGHT .
    WARNING: Eye protection must be worn when drilling rivets to reduce the chance of personal injury.
  2. Remove the rivets retaining the rear door speaker/housing to the door using appropriate drill and drill bit.
  3. Remove the speaker/housing from the door.
  4. Disconnect the electrical connector from the speaker.

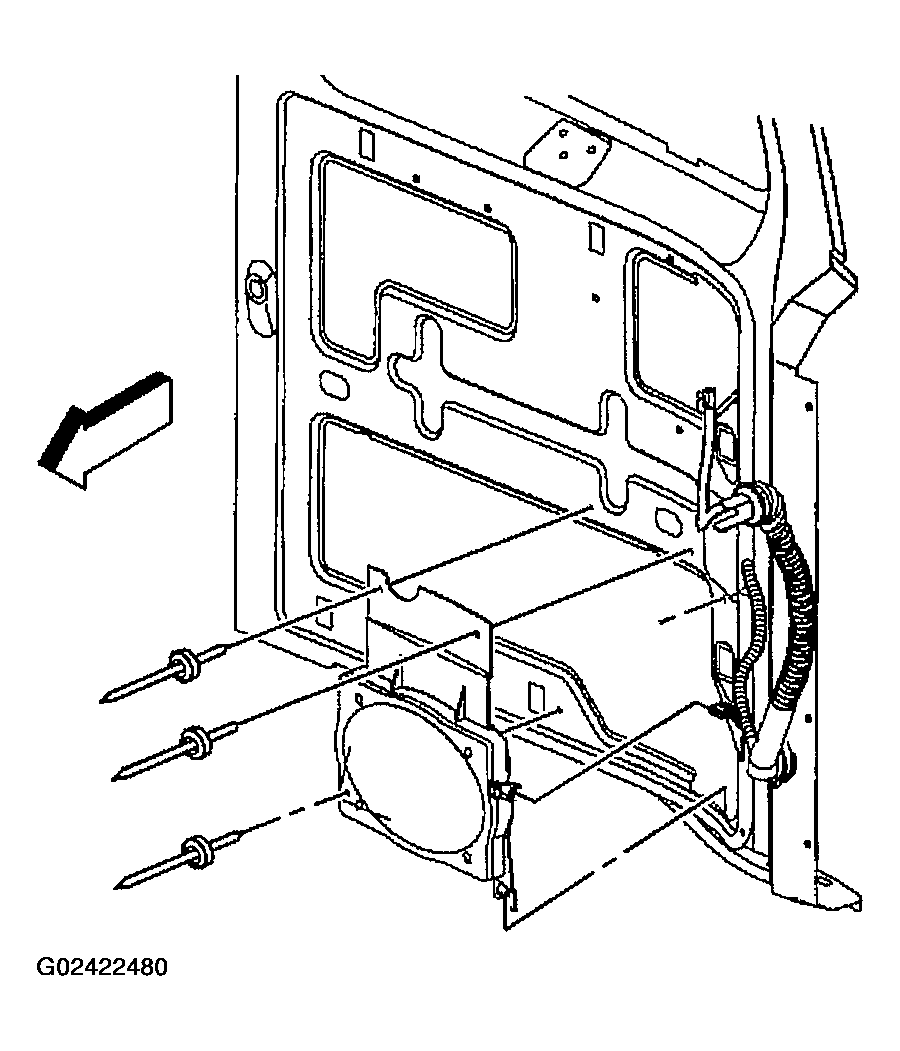

    Fig 1: Removing Rear Door Speaker
    G02422480Courtesy of GENERAL MOTORS CORP.
