Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Important: Use tape on the tool surface in order to protect the paint on the antenna mast from damage.

Install the antenna mast to the antenna base.

Fig 1: Installing Antenna Mast
Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to FASTENER NOTICE .
Screw the antenna mast to the antenna base.
Tighten

Tighten the antenna mast to 5 N.m (44 lb in).

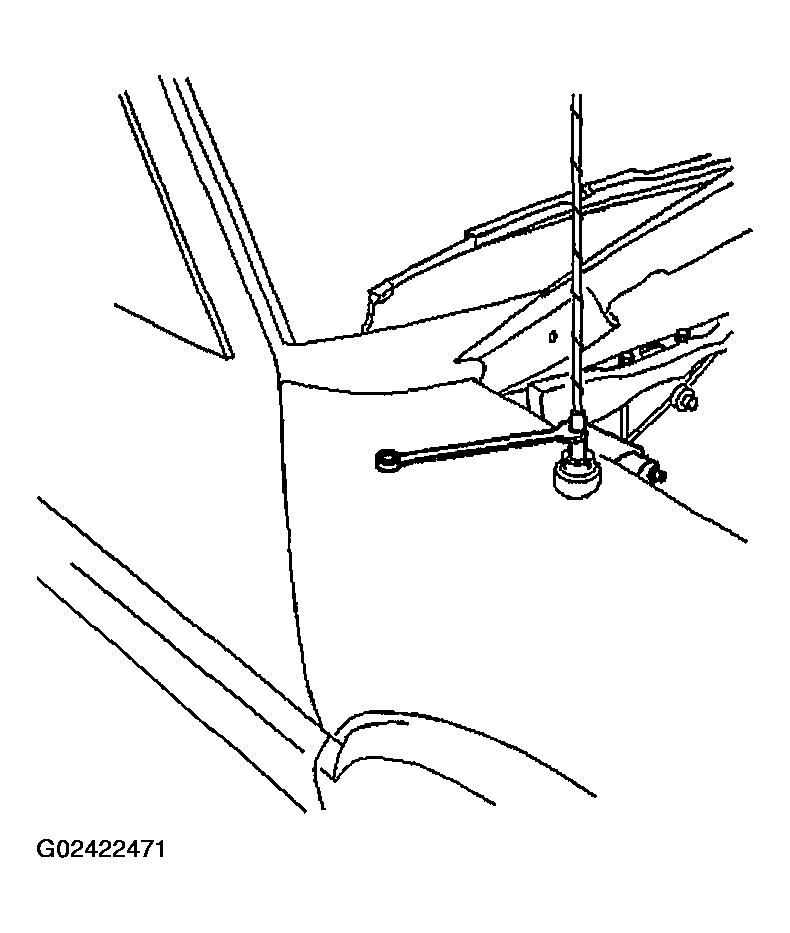

Fig 2: Screwing Antenna Mast To Antenna Base
Courtesy of GENERAL MOTORS CORP.
