Removal Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

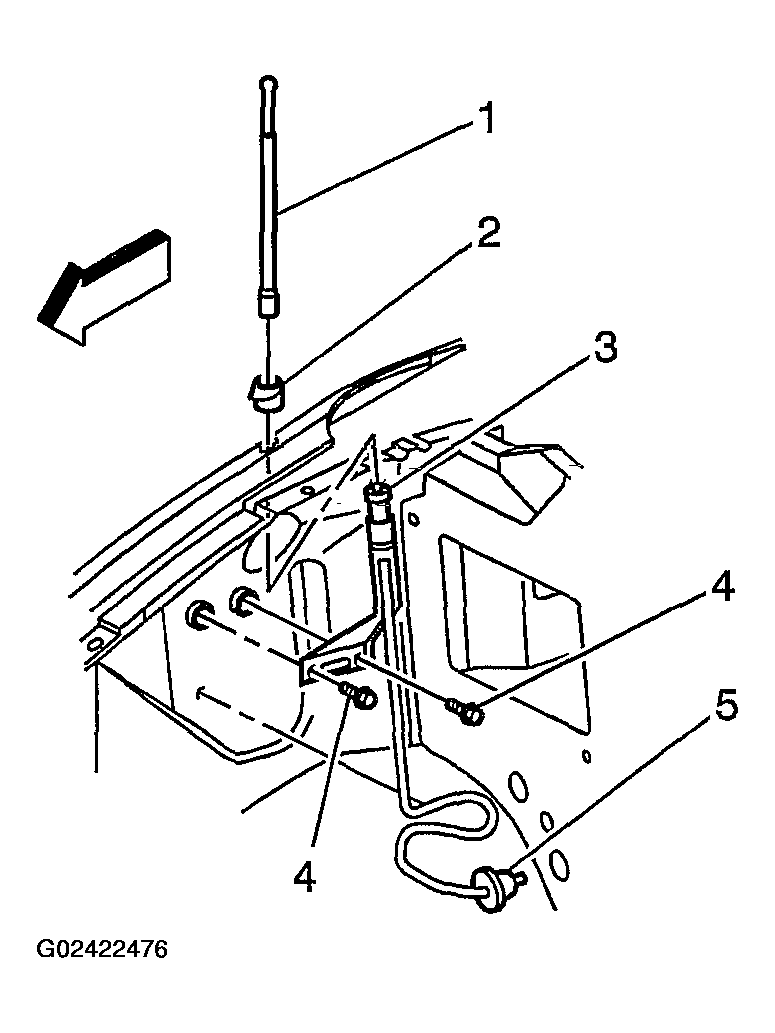

- Unscrew and remove the antenna mast (1). Refer to Fixed Antenna Mast Replacement .
- Disconnect the antenna base cable connection from the antenna extension cable.
- Push the antenna base cable grommet (5) out, through the firewall.
- Open hood to access the antenna cable/base (3).
- Remove the antenna collar (2).
- Remove the antenna cable/base bolts (4).
- Remove the antenna cable/base (3) from the vehicle.
