Mast Antennas

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Unplug antenna lead-in connector from radio receiver and plug a test antenna into radio. Make sure antenna base is grounded to the vehicle chassis and keep hands off the mast.

Check radio reception in an area away from electrical interferences. Tune to several weak and strong AM and FM stations. If the radio reception improved, the problem exists with the antenna and/or lead-in cable. If the reception is still poor, refer to Audio System Troubleshooting Hints .

Important:  Always zero out the DMM before taking a resistance measurement in order to ensure an accurate reading.

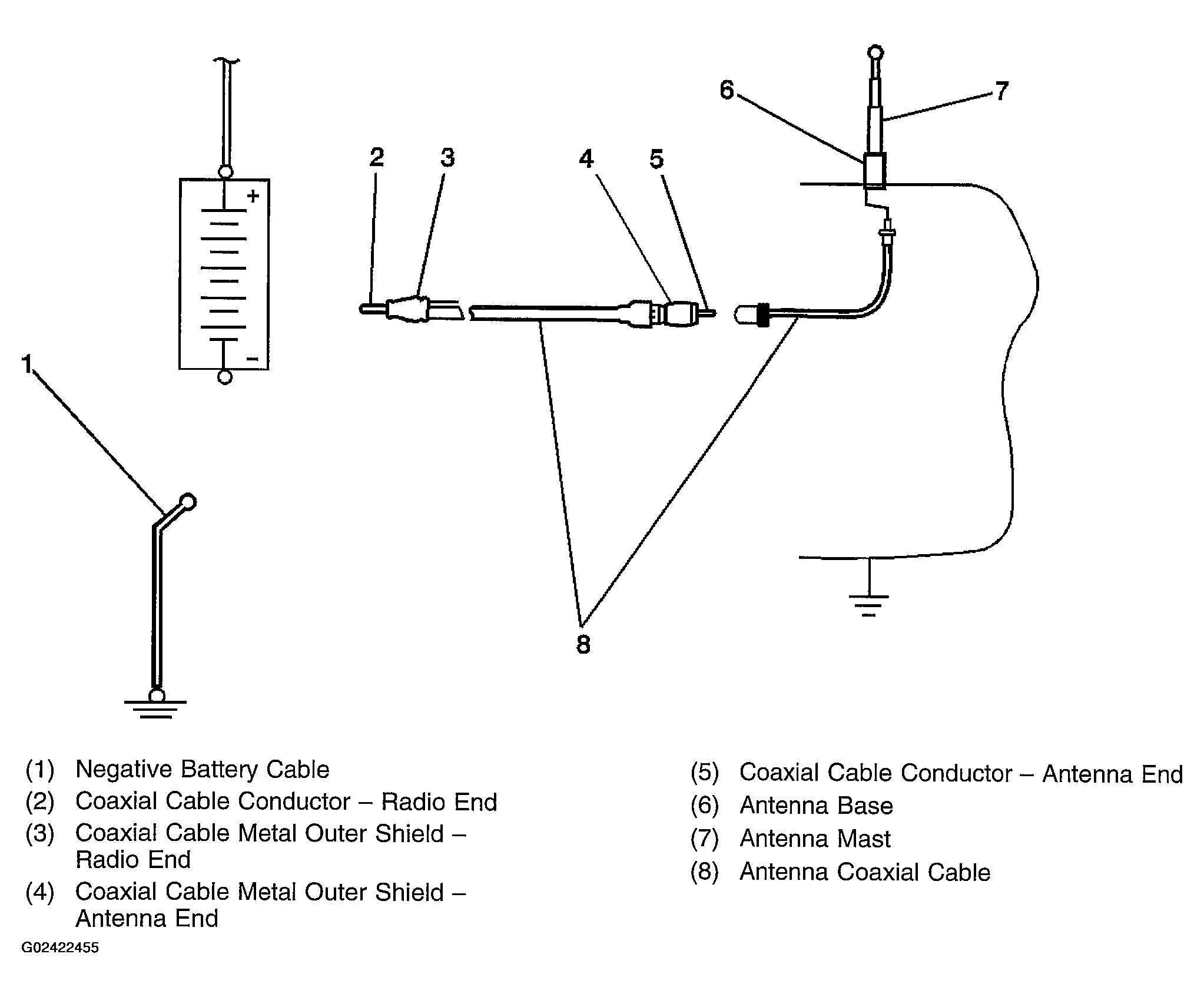

Fig 1: Mast Antenna System
G02422455Courtesy of GENERAL MOTORS CORP.
Measuring Resistance (Mast Antenna System)

Ohmmeter Probes At Points Resistance Measured In Ohms
1 and 3 Less than 0.2
1 and 4 Less than 0.2
1 and 6 Less than 0.2
1 and 2 Infinite
1 and 5 Infinite
1 and 7 Infinite
2 and 3 Infinite
2 and 4 Infinite
2 and 6 Infinite
3 and 4 Less than 0.2
3 and 6 Less than 0.2
3 and 5 Infinite
3 and 7 Infinite

Refer to the table when testing the antenna and/or lead-in cable.

  1. Measure the resistance from the coax center conductor to antenna mast. Ohmmeter probes at points 2 and 7.
  2. Total resistance from end to end of center conductor (Ohmmeter probes at points 2 and 5):
    • RG-58/RG-59 type cable - less than 0.20 Ω
    • RG-62/RG-62M type cable - less than 3.5 Ω
  3. When checking the resistance, cautiously wiggle the lead-in tip and cable. Refer to TESTING FOR INTERMITTENT AND POOR CONNECTIONS .
  4. Replace the antenna and/or lead-in cable when the above readings are not obtained. Refer to Fixed Antenna Mast Replacement  for service procedure.
