Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Gently pry out the lens (2) of the vanity mirror assembly (4) with a suitable flat-bladed tool.
  2. Remove the bulb (3) from the socket.

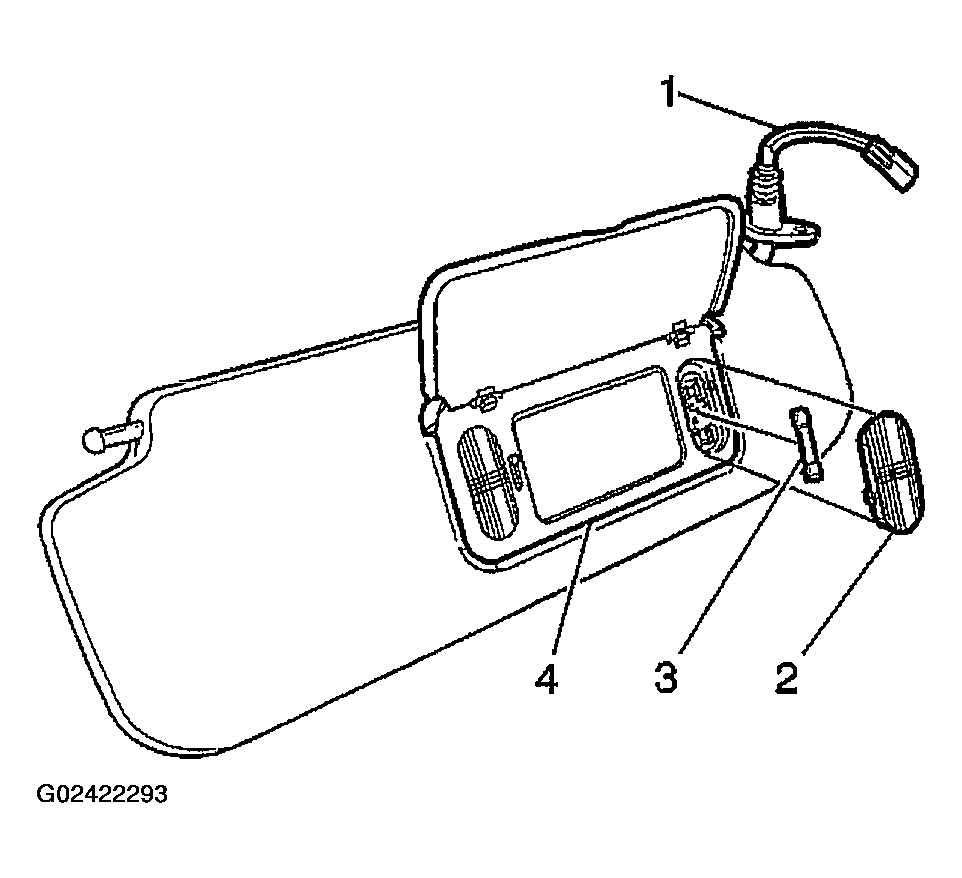

    Fig 1: Removing Vanity Mirror Lamp Bulb
    G02422293Courtesy of GENERAL MOTORS CORP.
