Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the electrical connector (3) from the underhood lamp (1).
  2. Release the retaining clip (2).
  3. Remove the underhood lamp (1).

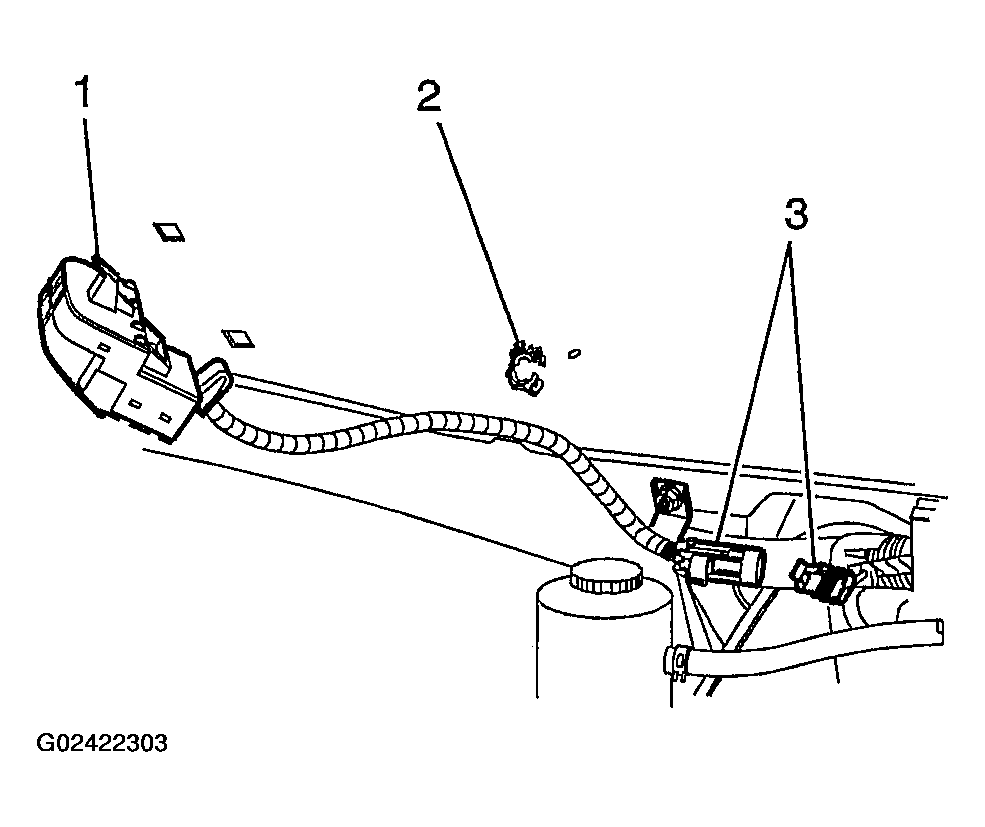

    Fig 1: Removing Underhood Lamp
    G02422303Courtesy of GENERAL MOTORS CORP.
