Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws (4) from the park/turn signal lamp to the grille.
  2. Remove the park/turn signal lamp (3) from the grille.
  3. Disconnect the bulb socket(s) (1) from the park/turn signal lamp by turning the bulb sockets in a counterclockwise direction.
  4. Remove the bulb(s) (1) from the socket.

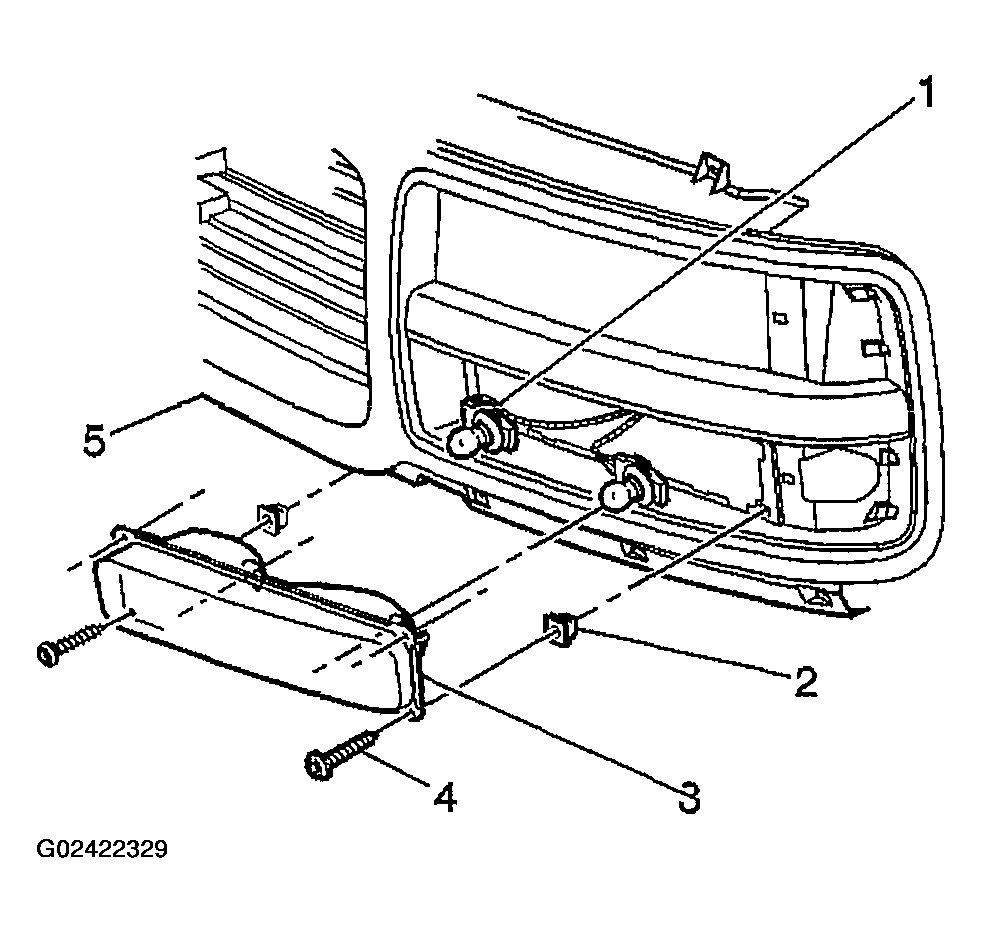

    Fig 1: Removing Park/Turn Signal Lamp (Uplevel Vehicles)
    G02422329Courtesy of GENERAL MOTORS CORP.
