Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb (1) into the socket by turning the bulb sockets in a clockwise direction.
  2. Connect the bulb socket (1) into the park/turn signal lamp.
  3. Install the park/turn signal lamp (2) to the grille (5).
    CAUTION: Refer to FASTENER NOTICE .
  4. Install the park/turn signal lamp retaining screws (3) to the grille.

    Tighten

    Tighten the screws to 1.5 N.m (13 lb in).

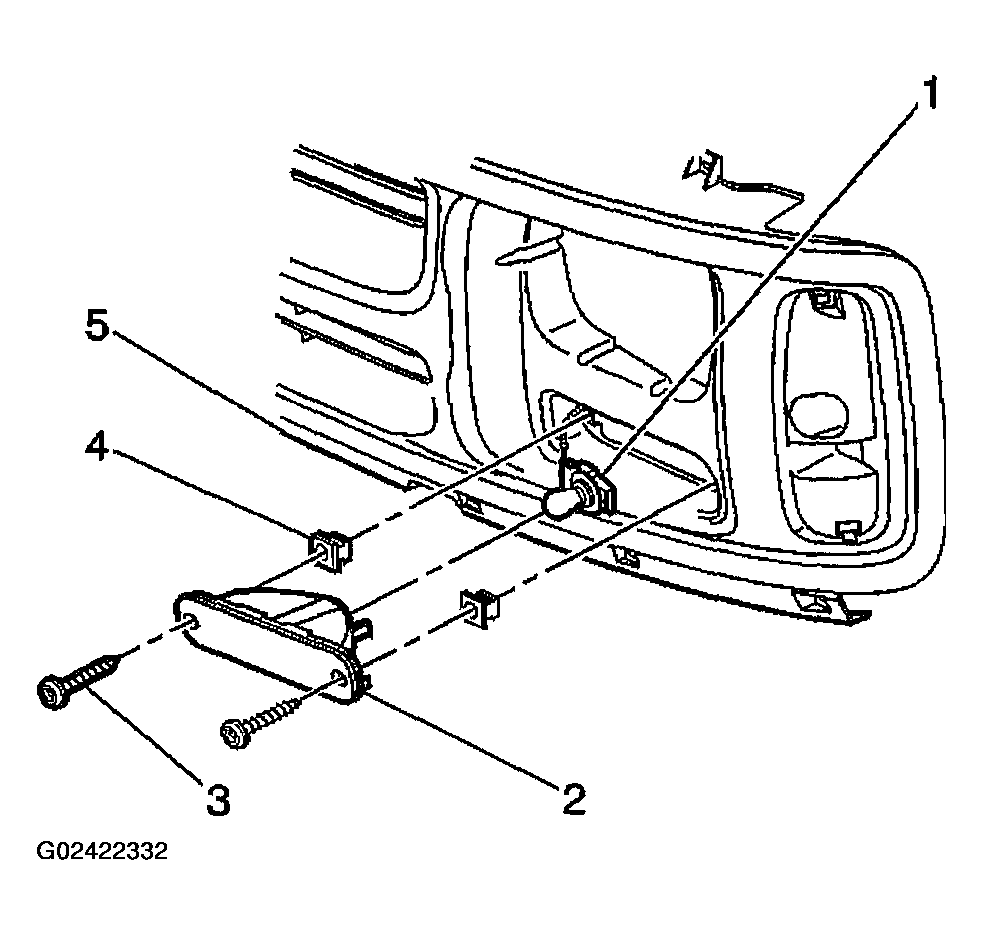

    Fig 1: Installing Park/Turn Signal Lamp (Base Vehicles)
    G02422332Courtesy of GENERAL MOTORS CORP.
