Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screw (4) that retains the side marker or the reflector to the grille.
  2. Remove the side marker lamp (3) or the reflector (5) from the grille.
  3. Disconnect the bulb socket (2) from the side marker lamp.
  4. Remove the bulb (2) from the socket by turning the bulb in a counter clockwise direction.

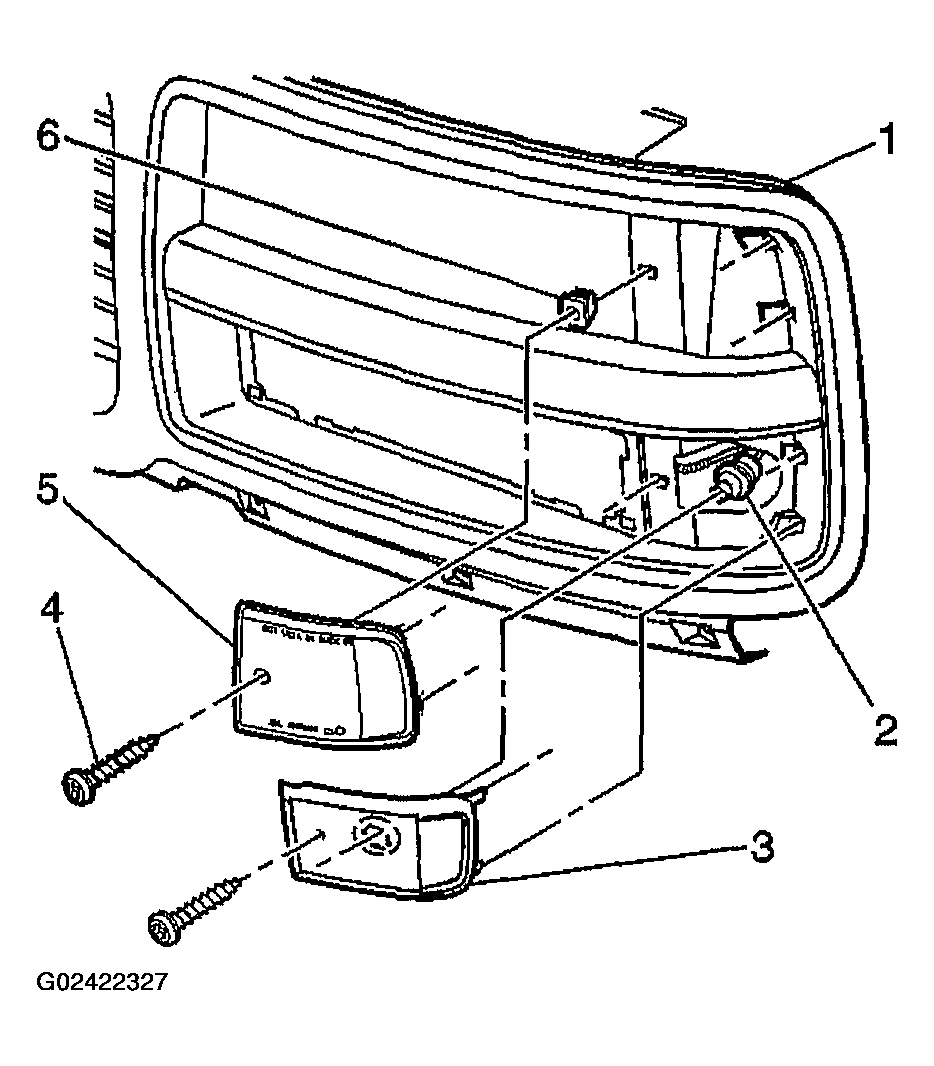

    Fig 1: Removing Front Side Marker Lamp (RPO Code X88/Z88)
    G02422327Courtesy of GENERAL MOTORS CORP.
