Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb (2) into the socket by turning the bulb in a clockwise direction.
  2. Connect the bulb socket (2) into the side marker lamp.
  3. Install the side marker lamp (3) or the reflector (5) to the radiator grille (1).
    CAUTION: Refer to FASTENER NOTICE .
  4. Install the side marker lamp or reflector retaining screw (4) to the grille.

    Tighten

    Tighten the screws to 1.5 N.m (13 lb in).

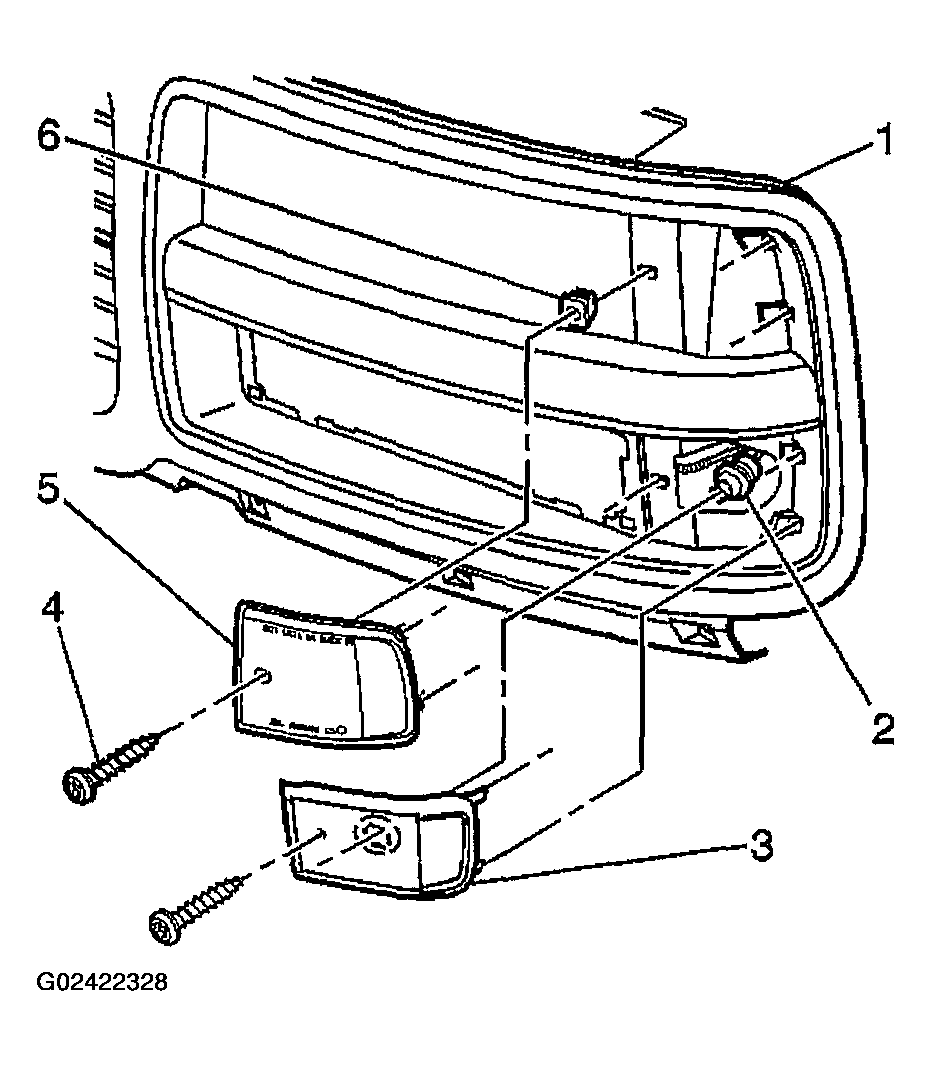

    Fig 1: Installing Front Side Marker Lamp (RPO Code X88/Z88)
    G02422328Courtesy of GENERAL MOTORS CORP.
